CAN-AM 2017-24 MAVERICK X3 TRIPLE LED HEADLIGHT KIT
CAN-AM 2017-24 MAVERICK X3 TRIPLE LED HEADLIGHT KIT
Description
Description
DESCRIPTION

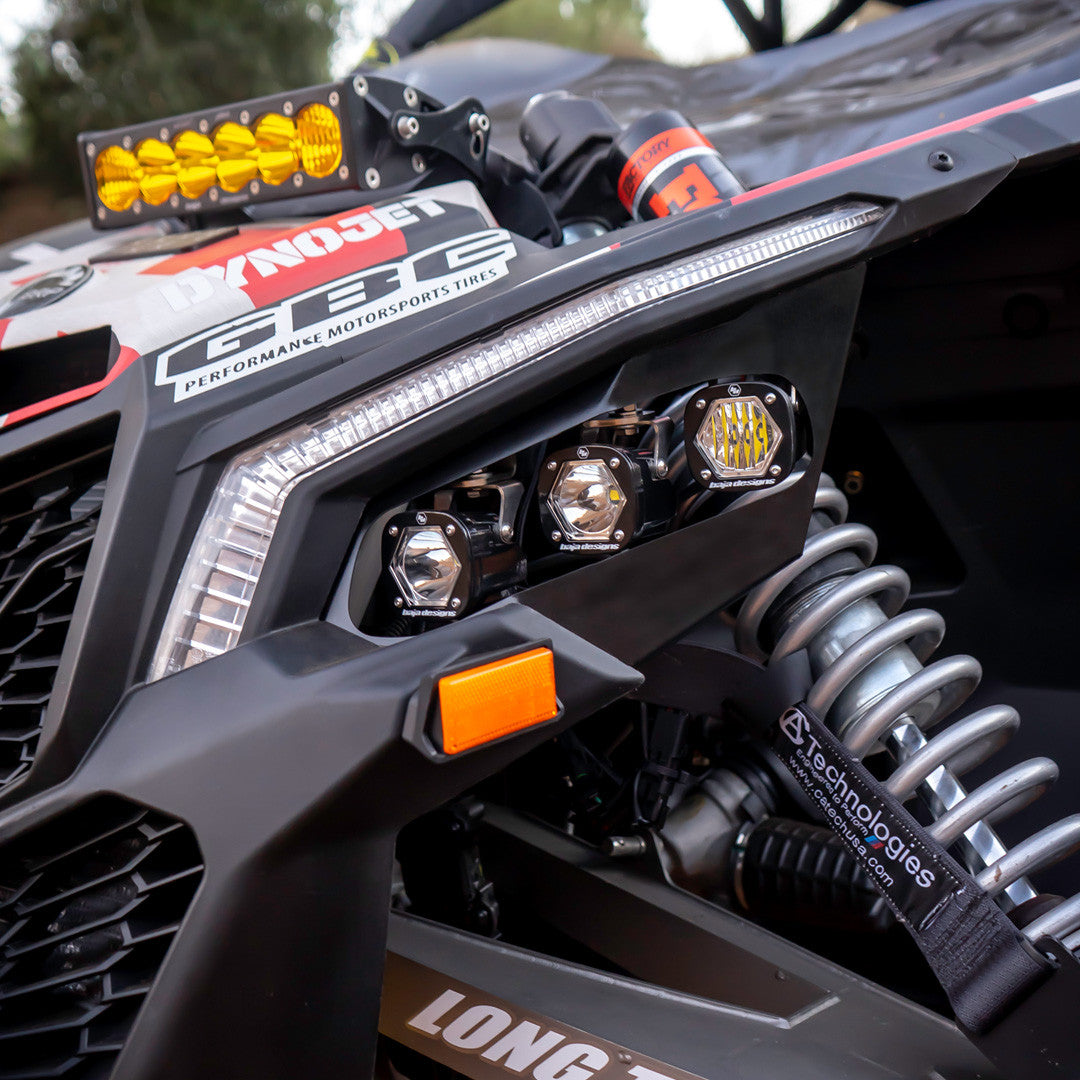

The Baja Designs S1 Triple LED Headlight Kit is a premium headlight upgrade for the 2017–2024 Can-Am Maverick X3. Designed for riders who want significantly better visibility without sacrificing the aggressive factory styling of the X3, this kit replaces the stock headlight setup with six compact, high-output S1 LED lights.
Each side of the vehicle receives three Baja Designs S1 lights, creating a clean, integrated appearance while greatly improving nighttime driving performance. The compact S1 design allows for strong output with low amperage draw, making this kit an effective lighting upgrade without placing excessive demand on the vehicle’s electrical system.
The kit includes precision-cut and bent mounting brackets along with a plug-and-play wiring system for a clean, vehicle-specific installation. Whether you are riding trails after dark, navigating dunes, or building a race-inspired X3, this headlight kit delivers the performance, durability, and fitment expected from Baja Designs.
FEATURES
Triple S1 Headlight Design:
Uses three Baja Designs S1 LED lights per side for a total of six high-performance LED lights.
Major Lighting Upgrade:
Provides significantly improved forward visibility compared to the factory headlight setup.
Mixed Beam Coverage:
Combines Spot and Wide Cornering S1 optics to deliver both long-distance visibility and useful peripheral illumination.
Low Power Draw:
Compact S1 lights deliver high output without drawing substantially more power than the factory lighting system.
Plug-and-Play Wiring:
Includes a vehicle-specific wiring system for a clean and straightforward installation.
Precision-Cut Brackets:
Vehicle-specific brackets are designed for proper alignment, secure fitment, and a clean installed appearance.
5000K Daylight Output:
Produces a natural white light designed to reduce driver fatigue and improve terrain visibility at night.
uService® Replaceable Lenses and Optics:
Allows damaged or worn lenses and optics to be serviced rather than replacing the complete light assembly.
MoistureBlock® Construction:
Built for harsh environments with waterproof, rainproof, and submersible performance.
ClearView® Optics:
Designed to place usable light where it is needed while improving control and visibility.
Backed by Baja Designs:
Covered by Baja Designs’ Lifetime Limited Warranty and 30-Day Satisfaction Guarantee.
TECH SPECS

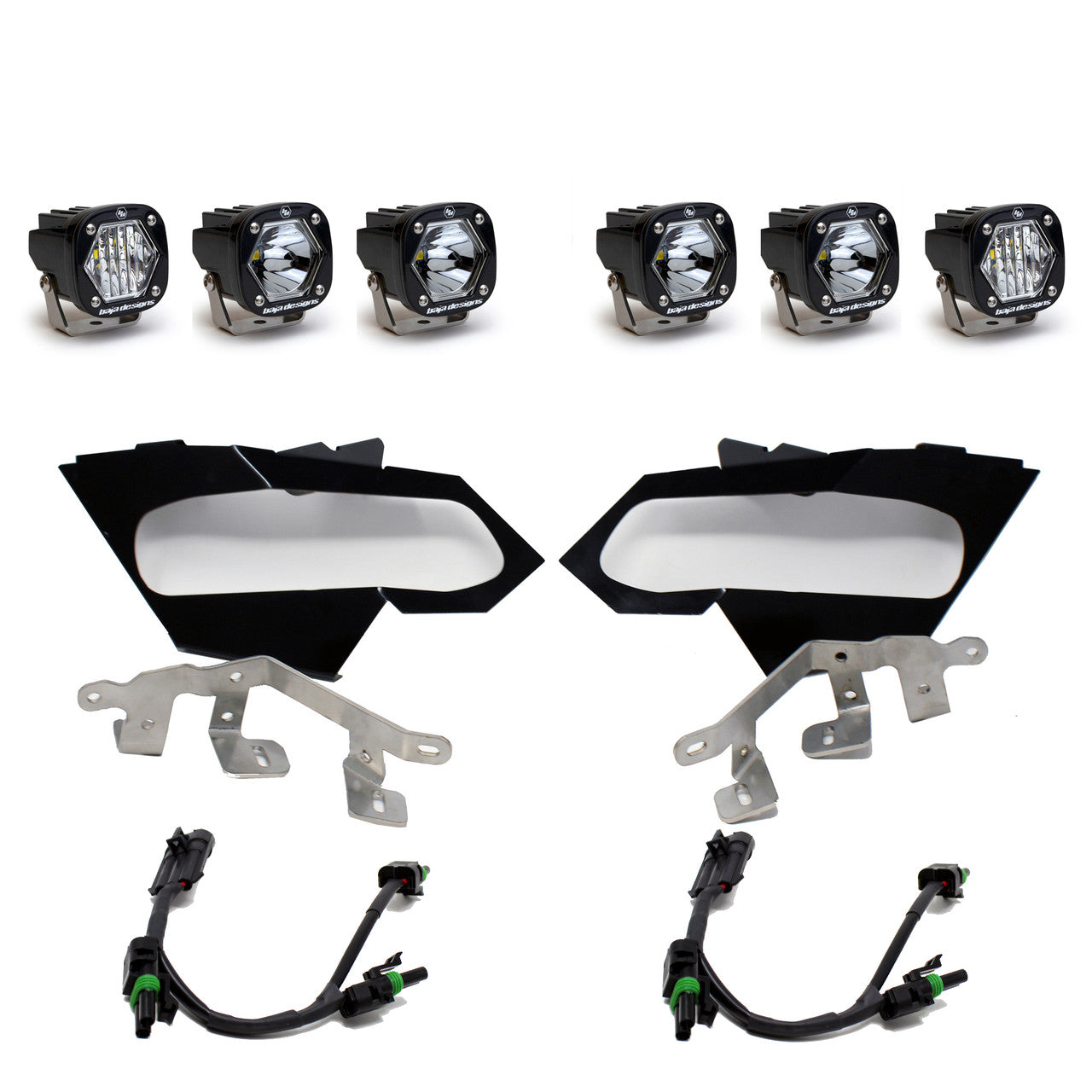

What’s Included
LED Lights:
6x Baja Designs S1 LED Lights
Mounting Components:
Vehicle-Specific Precision-Cut Mounting Brackets
Required Mounting Hardware
Wiring:
Plug-and-Play Wiring System
Compatibility
Can-Am Maverick X3:
2017–2024
Application:
Factory Headlight Replacement / Performance Headlight Upgrade
Important Fitment Note:
The current Baja Designs listing identifies this kit for 2017–2024 Can-Am Maverick X3 models. Verify fitment before ordering if the vehicle has aftermarket front-end panels, custom wiring, or previously modified headlight mounting locations.
Technical Details
Brand:
Baja Designs
Product Type:
S1 Triple LED Headlight Kit
Light Source:
LED
Light Quantity:
6 Total S1 LED Lights
Beam Patterns Included:
Spot
Wide Cornering
Brightness Per S1 Light:
2,320 Lumens
Wattage Per S1 Light:
19.596W
Amperage Per S1 Light:
1.420A
Operating Voltage:
9–28V
Color Temperature:
5000K Daylight
Lens Color:
Clear
Lens Material:
Hardcoated Polycarbonate
Housing Color:
Black
Housing Material:
Hard-Anodized and Powder-Coated Cast Aluminum
Mounting Hardware Material:
Stainless Steel
Overvoltage Protection:
Built-In
Average Rated Life:
49,930 Hours
Water Resistance:
IP69K Rated
Impact Resistance:
IK10 Compliant
Durability Testing:
Exceeds MIL-STD810G
Installation Style:
Vehicle-Specific / Plug-and-Play
Modification Required:
No major modification required on compatible vehicles
WARRANTY
This Baja Designs product includes a Lifetime Limited Warranty for complete purchase protection. Warranty coverage does not apply to improper installation, modification, misuse, vehicle damage, incorrect wiring, or unauthorized alterations.
SHIPPING INFORMATION
We’re excited to offer Baja Designs performance lighting through Customs Unlimited. Orders for this item may ship directly from one of our fulfillment partners to ensure fast delivery and the same product quality you expect. Please note that additional items in the same order may arrive separately.
