CAN-AM 2017-24 MAVERICK X3 - XL LINKABLE ROOF MOUNT LIGHT KIT
CAN-AM 2017-24 MAVERICK X3 - XL LINKABLE ROOF MOUNT LIGHT KIT
Description
Description
DESCRIPTION
The Baja Designs XL Linkable Roof Mount Light Kit is a premium overhead lighting upgrade for the 2017–2024 Can-Am Maverick X3. Built for riders who need serious forward visibility after dark, this kit adds a clean, race-inspired roof-mounted light bar system with fully adjustable XL LED pods.
The selected XL Sport configuration includes seven linked XL LED lights that produce a combined 22,050 lumens of forward-projected lighting. The multi-pattern optic layout delivers a balanced spread of light for both distance and peripheral trail visibility, making it ideal for dunes, desert runs, wooded trails, and high-speed nighttime riding.
Unlike a traditional fixed light bar, the XL Linkable system allows each light to be individually adjusted, giving you greater control over where the light is aimed. The kit also includes vehicle-specific roof brackets, a wiring harness, rock guards, and a pre-load support bracket to help maintain rigidity across harsh terrain.
For Maverick X3 owners who want a high-output roof lighting setup with clean fitment, durable construction, and Baja Designs performance, the XL Linkable Roof Mount Kit is a serious upgrade.
FEATURES
Seven-Light XL Linkable Design:
Uses seven linked XL LED lights for a clean roof-mounted setup with strong forward visibility.
22,050 Lumens of Output:
Selected XL Sport configuration delivers massive lighting performance for nighttime off-road driving.
Optional XL Pro Configuration:
An upgraded XL Pro setup is available with up to 28,665 lumens of total output.
Individually Adjustable Lighting:
Linkable design allows each light to be aimed for a customized beam pattern and improved trail coverage.
Multi-Pattern Beam Layout:
Designed to provide a balanced combination of distance lighting and usable peripheral visibility.
Vehicle-Specific Roof Mounting:
Includes brackets designed for the Can-Am Maverick X3 for a clean, secure installed appearance.
Pre-Load Support Bracket:
Included support bracket helps improve rigidity when riding through aggressive terrain.
Rock Guards Included:
Helps protect the front of the lights from debris, rocks, and off-road abuse.
Plug-and-Play Wiring Harness:
Includes the required wiring harness for a cleaner vehicle-specific installation.
5000K Daylight Output:
Produces natural white lighting designed to improve terrain visibility and reduce driver fatigue.
uService® Replaceable Lenses and Optics:
Allows damaged or worn lenses and optics to be replaced without changing the complete light assembly.
MoistureBlock® Construction:
Built for demanding off-road environments with waterproof, rainproof, and submersible performance.
Lifetime Limited Warranty:
Backed by Baja Designs’ Lifetime Limited Warranty and 30-Day Satisfaction Guarantee.
TECH SPECS

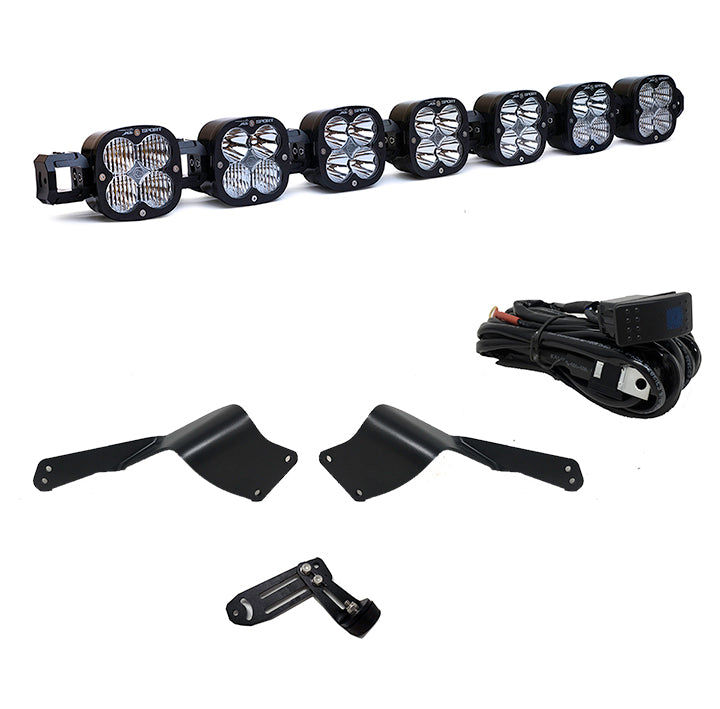

What’s Included
LED Light Bar:
1x Baja Designs XL Linkable Roof Light Bar
7x XL Sport LED Lights with Clear Multi-Pattern Optics
Mounting Components:
2x Vehicle-Specific Roof Bar Brackets
1x Pre-Load Support Bracket
Link Hardware
Rock Guards
Required Mounting Hardware
Wiring:
1x Wiring Harness
Compatibility
Can-Am Maverick X3:
2017–2024
Application:
Roof-Mounted Forward Lighting Upgrade
Important Fitment Note:
Designed for compatible Can-Am Maverick X3 roof mount applications. Verify fitment before ordering if the vehicle has an aftermarket roof, windshield, cage, intrusion bars, custom wiring, or previously installed roof lighting.
Options
XL Sport Configuration:
22,050 Total Lumens
182W Total Power
14A Total Draw

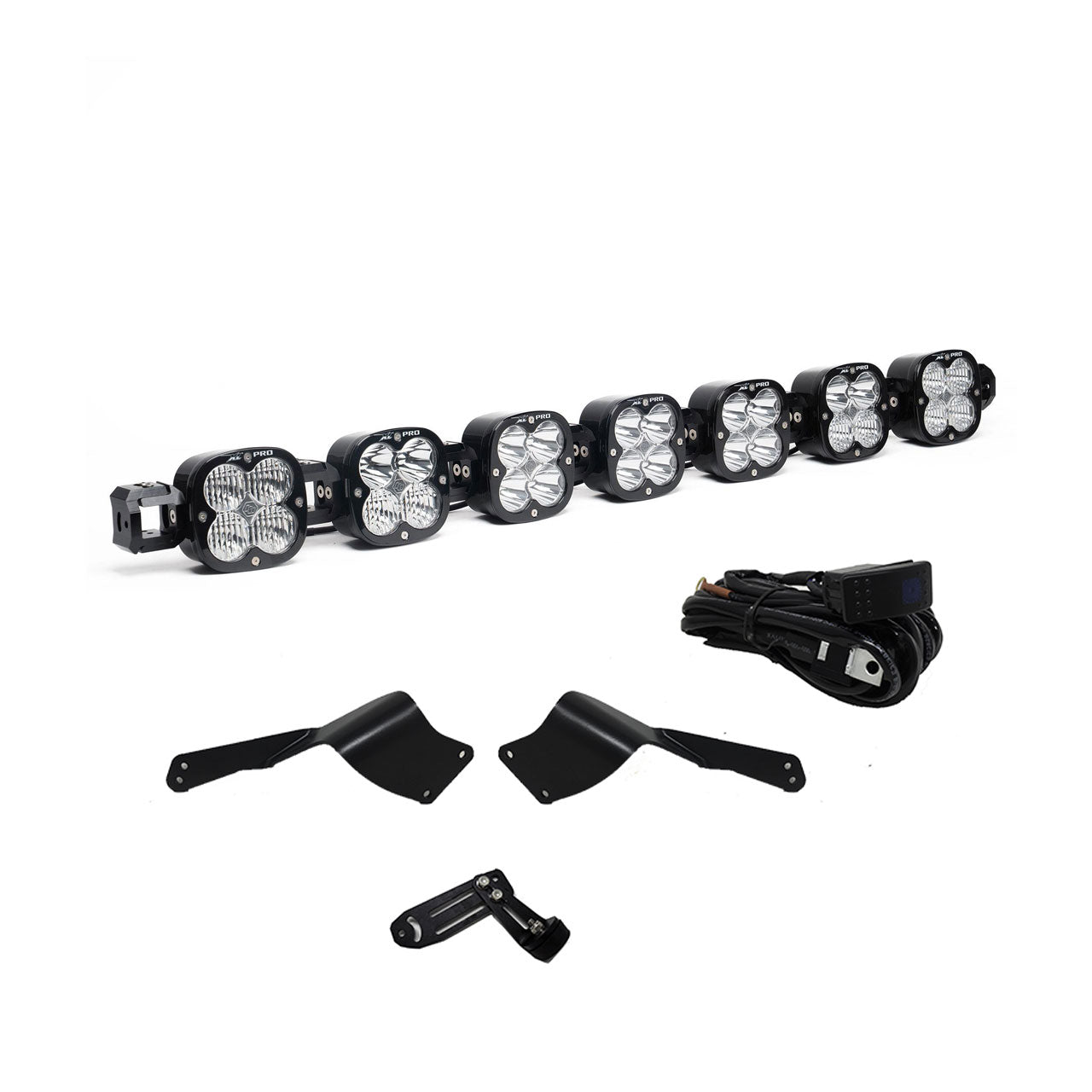

XL Pro Configuration:
28,665 Total Lumens
Lens / Beam Pattern:
Clear Multi-Pattern
Technical Details
Brand:
Baja Designs
Product Type:
XL Linkable Roof Mount LED Light Kit
Light Source:
LED
Light Quantity:
7 XL LED Lights
Lighting Quantity:
28 LEDs Total
Selected Configuration:
XL Sport
Brightness:
22,050 Lumens
Beam Pattern:
Multi-Pattern
Wattage:
182W
Amperage Rating:
14A
Color Temperature:
5000K Daylight
Lens Color:
Clear
Lens Material:
Hardcoated Polycarbonate
Housing Color:
Black
Housing Material:
Hard-Anodized and Powder-Coated Cast Aluminum
Mounting Hardware Material:
Stainless Steel
Wiring Harness Included:
Yes
Overvoltage Protection:
Built-In
Average Rated Life:
49,930 Hours
Water Resistance:
IP69K Rated — Waterproof up to 9 ft and Pressure Washable
Impact Resistance:
IK10 Compliant
Durability Testing:
Exceeds MIL-STD810G
Overall Light Bar Length:
45.34 Inches
Overall Height:
4.43 Inches
Overall Depth:
2.8 Inches
Installation Style:
Vehicle-Specific Roof Mount Kit
WARRANTY
This Baja Designs product includes a Lifetime Limited Warranty for complete purchase protection. Warranty coverage does not apply to improper installation, modification, misuse, incorrect wiring, vehicle damage, or unauthorized alterations.
