DESCRIPTION
This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.
This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.
C1 Sport: 1.2A
C1 Pro: 1.7A
SSC2 Sport: 0.6A
SSC2 Pro: 1.75A
SS3 Sport Mainbeam: 1.1A, Backlight: 0.03A
SS3 Pro Mainbeam: 2.7A, Backlight: 0.03A
SS3 Max Mainbeam: 3A, Backlight: 0.03A
SS5 Sport: 2.8A
SS5 Pro: 6.7A
This harness includes an OEM aux switch adapter wire that allows you to control your lights using a factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the included toggle switch adapter wire to mount a switch.
After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.
FEATURES
Powers Diode Dynamics LED pods with backlight functionality.
Connects directly to the battery to power your LED pods.
High capacity 14AWG wiring.

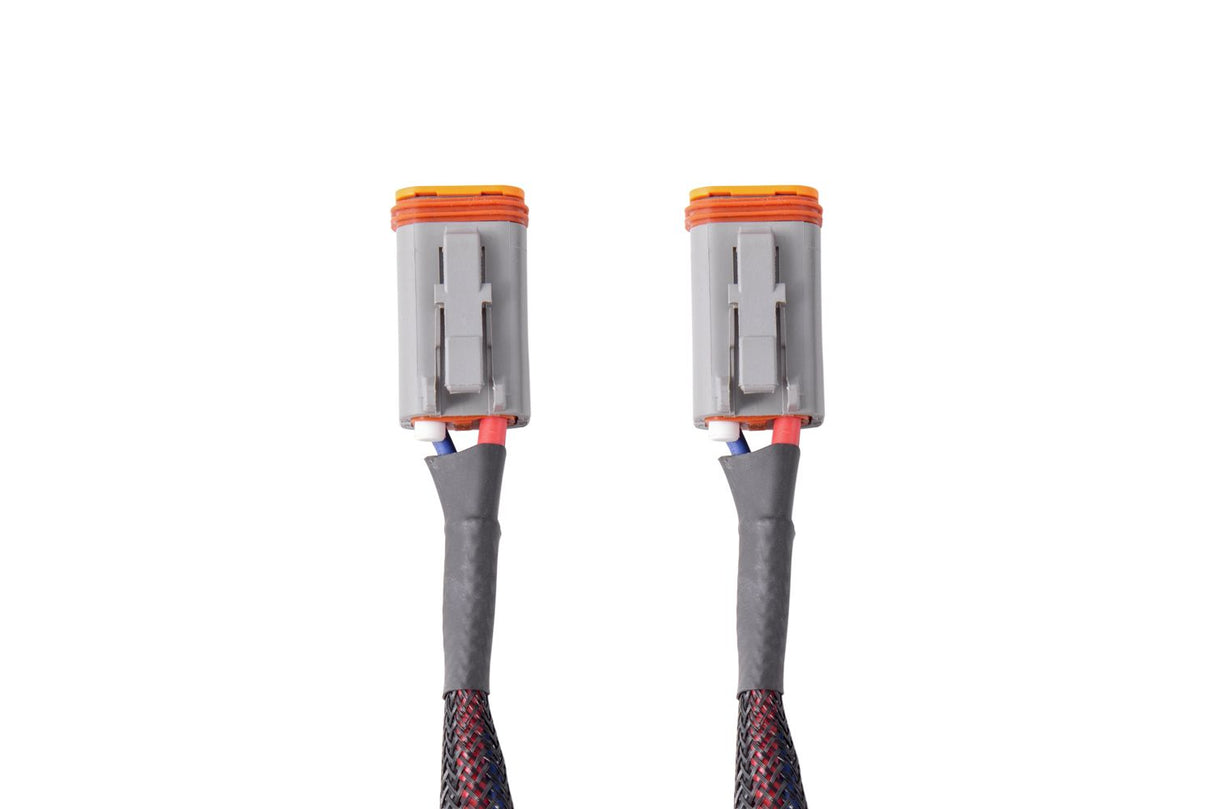

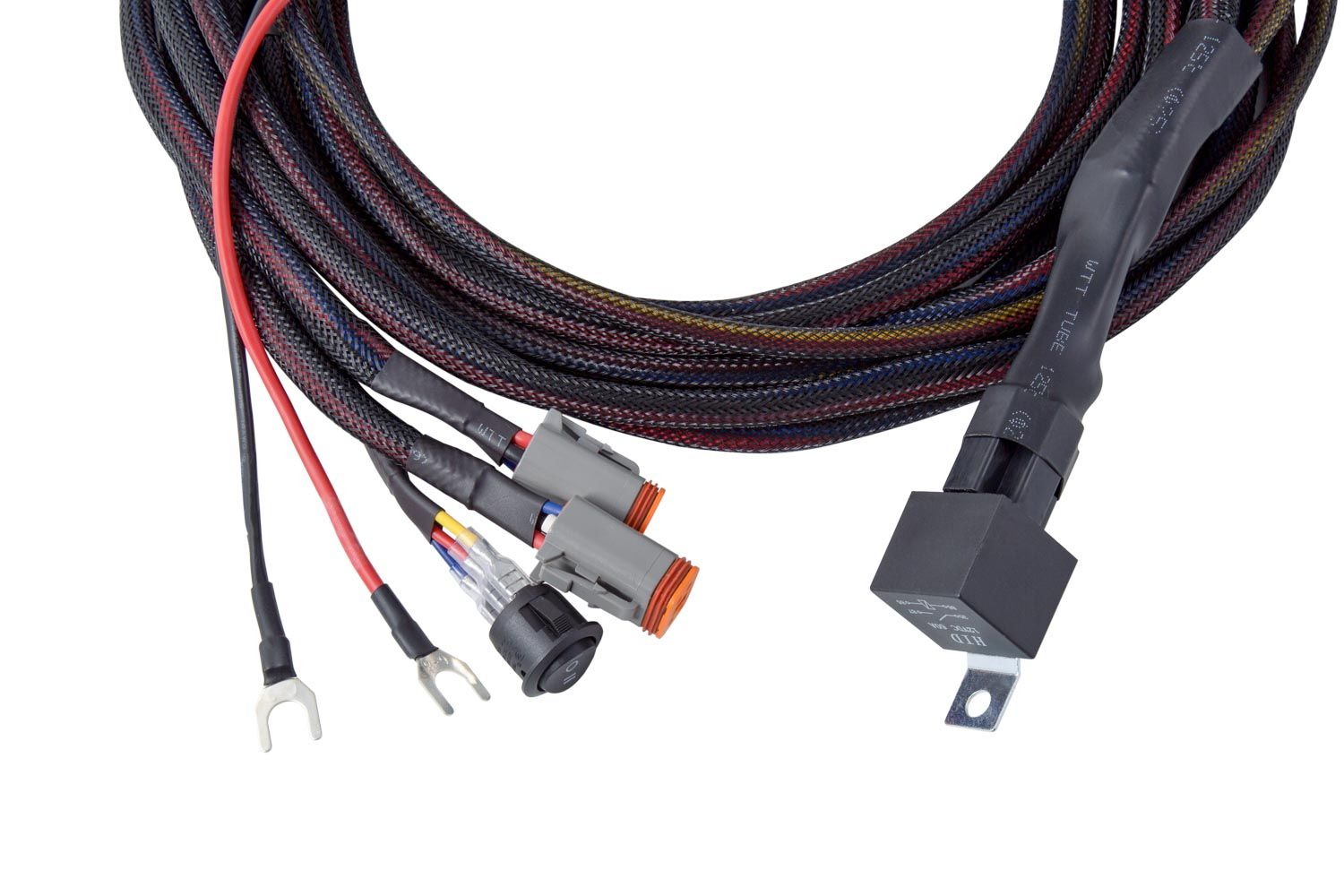

Dual Deutsch DT output connectors.
30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.
TECH SPECS
WHAT'S INCLUDED:

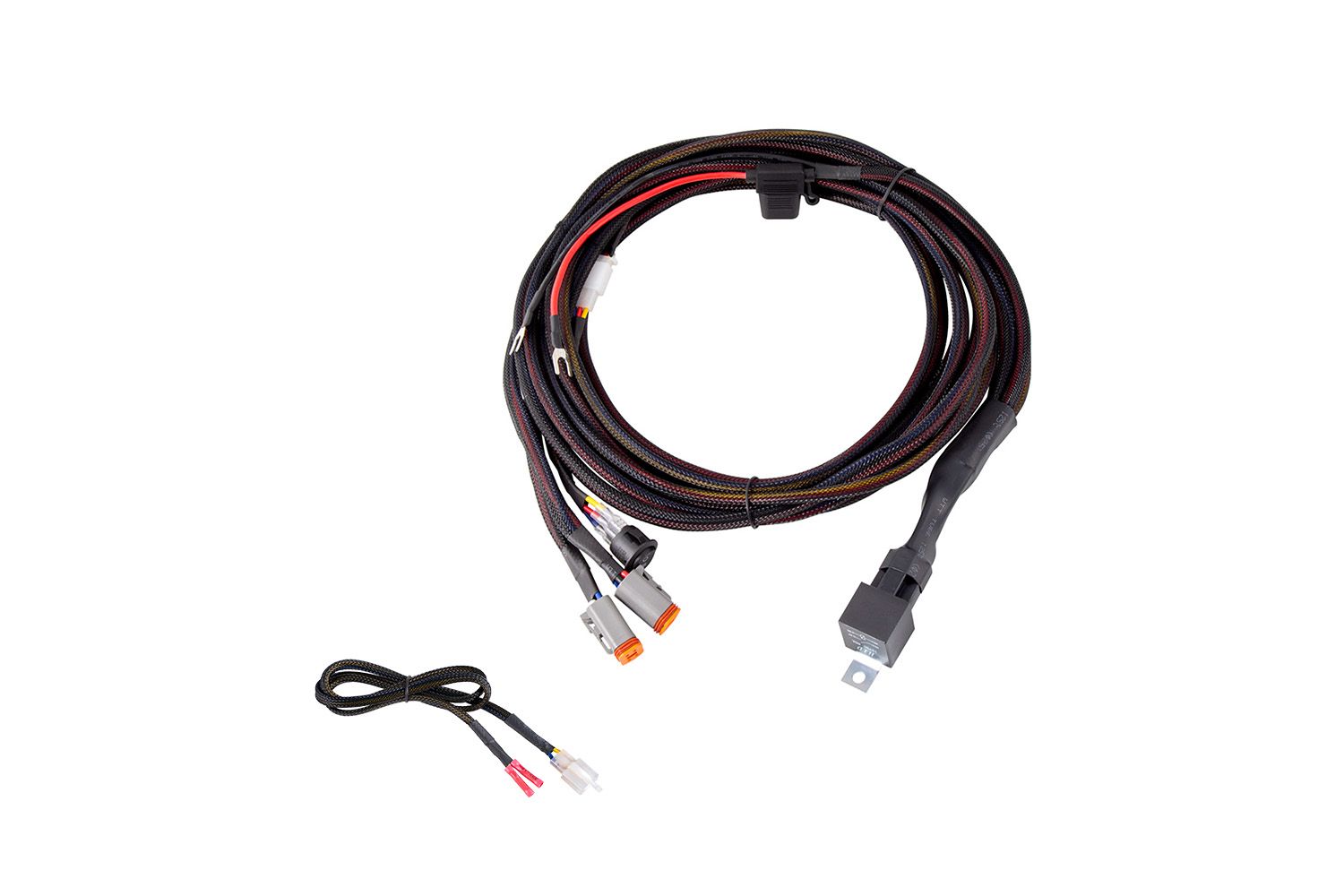

One (1) wiring harness
One (1) toggle switch
One (1) OEM aux adapter
COMPATIBILITY
NOTE: This harness is intended to be used with our Stage Series pods with backlight functionality.
INSTALLATION GUIDE

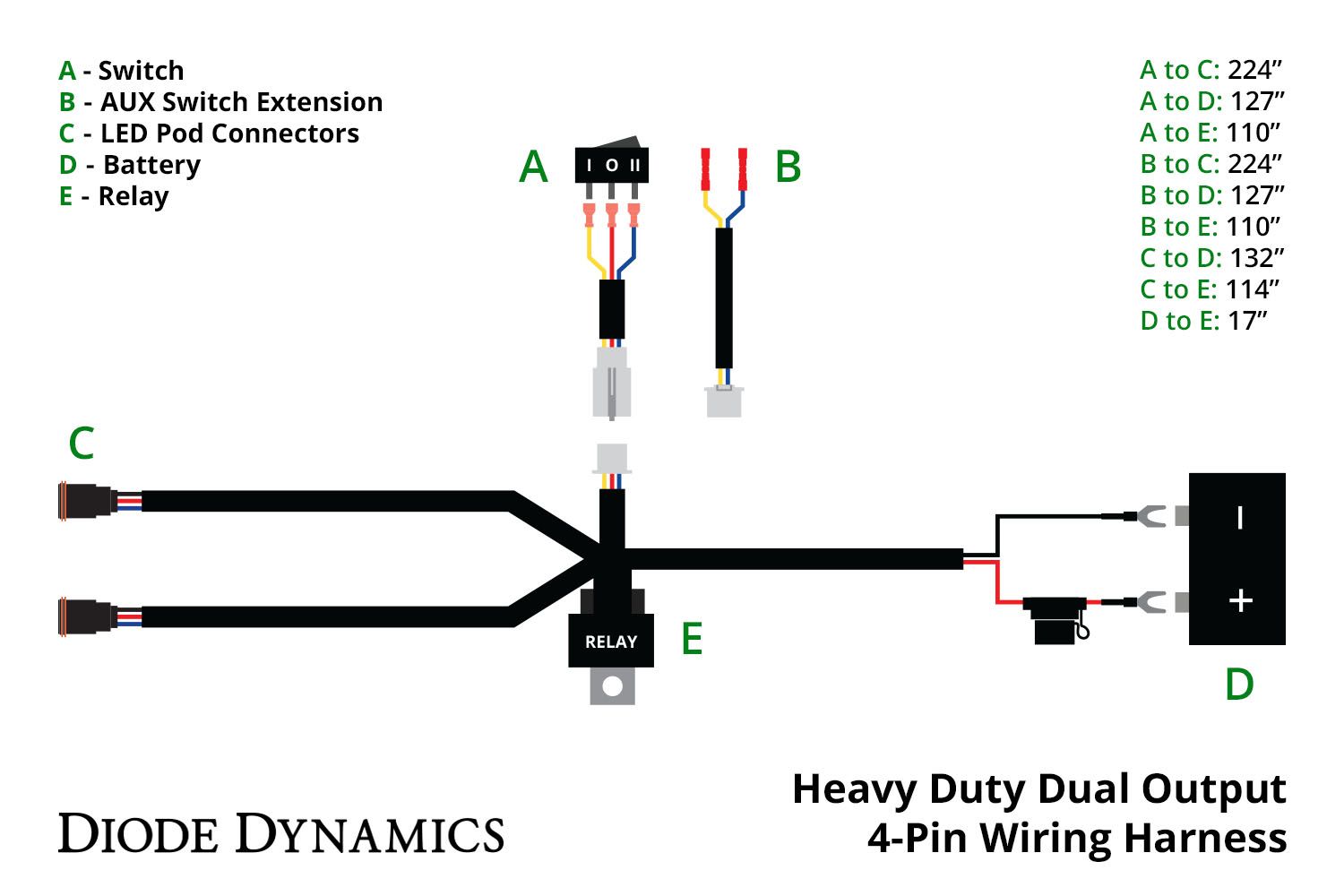

Wire Colors:
Blue: Backlight
Red: Power In
Yellow: Main Beam
Installation Time: 10-20 minutes
Tools Needed: Basic Toolset
Modification: Basic Wiring Only
