Diode Dynamics  |  SKU: DD7418

SS6 LED Fog Light Kit for 2022-2025 Toyota Tundra

$323.96
Shipping calculated at checkout.
Color: White
Quality Guaranteed No Exceptions
Secure Checkout Secure Payment
Easy Returns Return with Ease
USA BASED We Ship From The USA
DESCRIPTION

The SAE LED Fog Light Kit for the 2022+ Toyota Tundra from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in place of the factory fog light housings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

FEATURES

Direct fitment on 2022+ Toyota Tundra.
Replaces the factory fog lights with two 6" light bars.
Road legal output as fog lights.
CAD-designed for perfect fitment and OEM-like appearance.
Utilizes existing mounting points for simple installation - no cutting or drilling required.

TECH SPECS

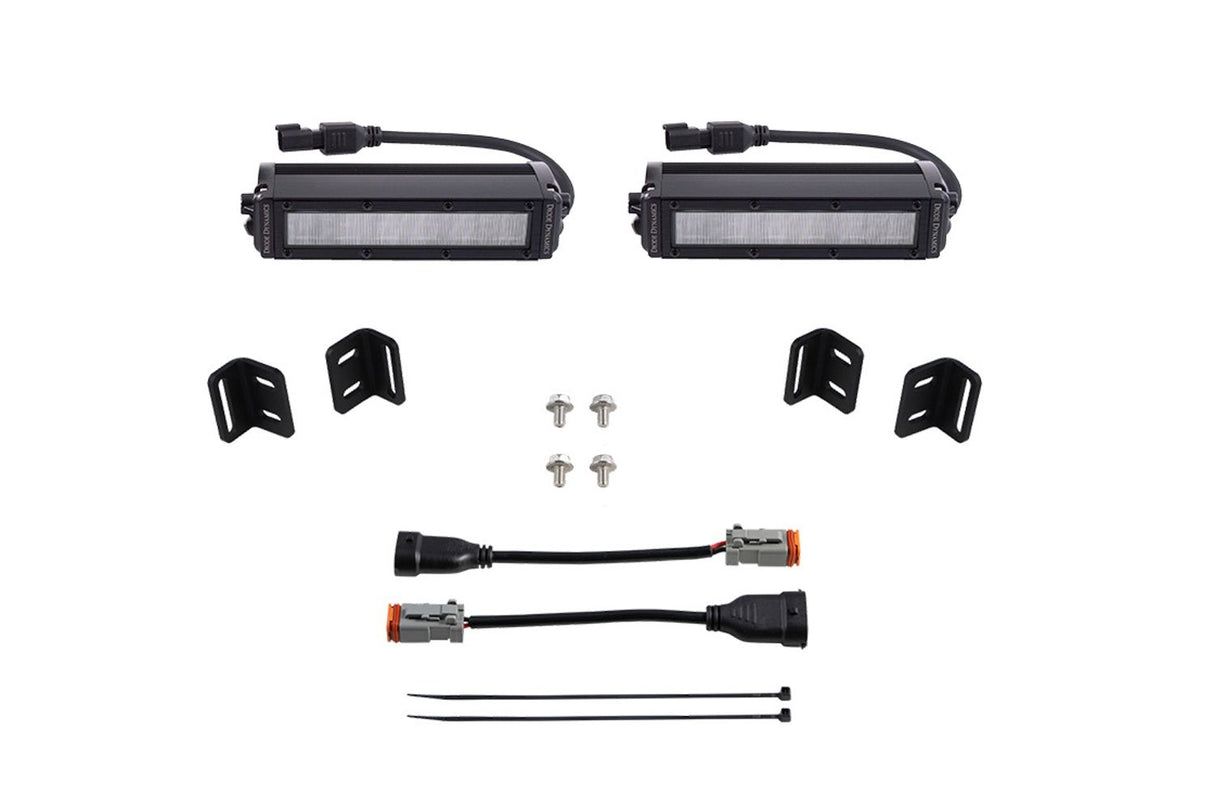

In the Box:

    Four (4) Application-specific brackets for installation on 2022+ Toyota Tundra
    Two (2) SS6 Stage Series 6 inch Light Bars
    Two (2) H11 DT Adapters
    Installation Guide

    Quantity: Pair (Left and Right Side)

    Application: Fog Light Make: Toyota Model: Tundra Years: 2022, 2023, 2024, 2025



    Lens Color/Optics Peak Beam Intensity
    (candela)    		 Illuminance
    (lux @ 10m)    		 Measured Output
    (lumens)    		 Raw Output
    (lumens)    		 Output Color
    Fog White Sport 10,600 cd 106 lux 1,520 lm 2,262 lm 6000K White
    Fog White Pro 11,900 cd 119 lux 3,000 lm 5,796 lm 6000K White
    Fog White Max 18,000 cd 180 lux 3,500 lm 7,920 lm 6000K White
    Fog Yellow Sport 9,050 cd 91 lux 1,300 lm 1,930 lm 3000K Yellow
    Fog Yellow Pro 10,900 cd 109 lux 2,700 lm 5,220 lm 3000K Yellow
    Fog Yellow Max 12,500 cd 125 lux 3,500 lm 7,920 lm 3000K Yellow
    WARRANTY

    This product has an 8 year warranty serviced and supported by Diode Dynamics

    SHIPPING INFORMATION

    This product is shipped directly from the manufacturer and can take 1-3 weeks to arrive
