Diode Dynamics  |  SKU: DD4124

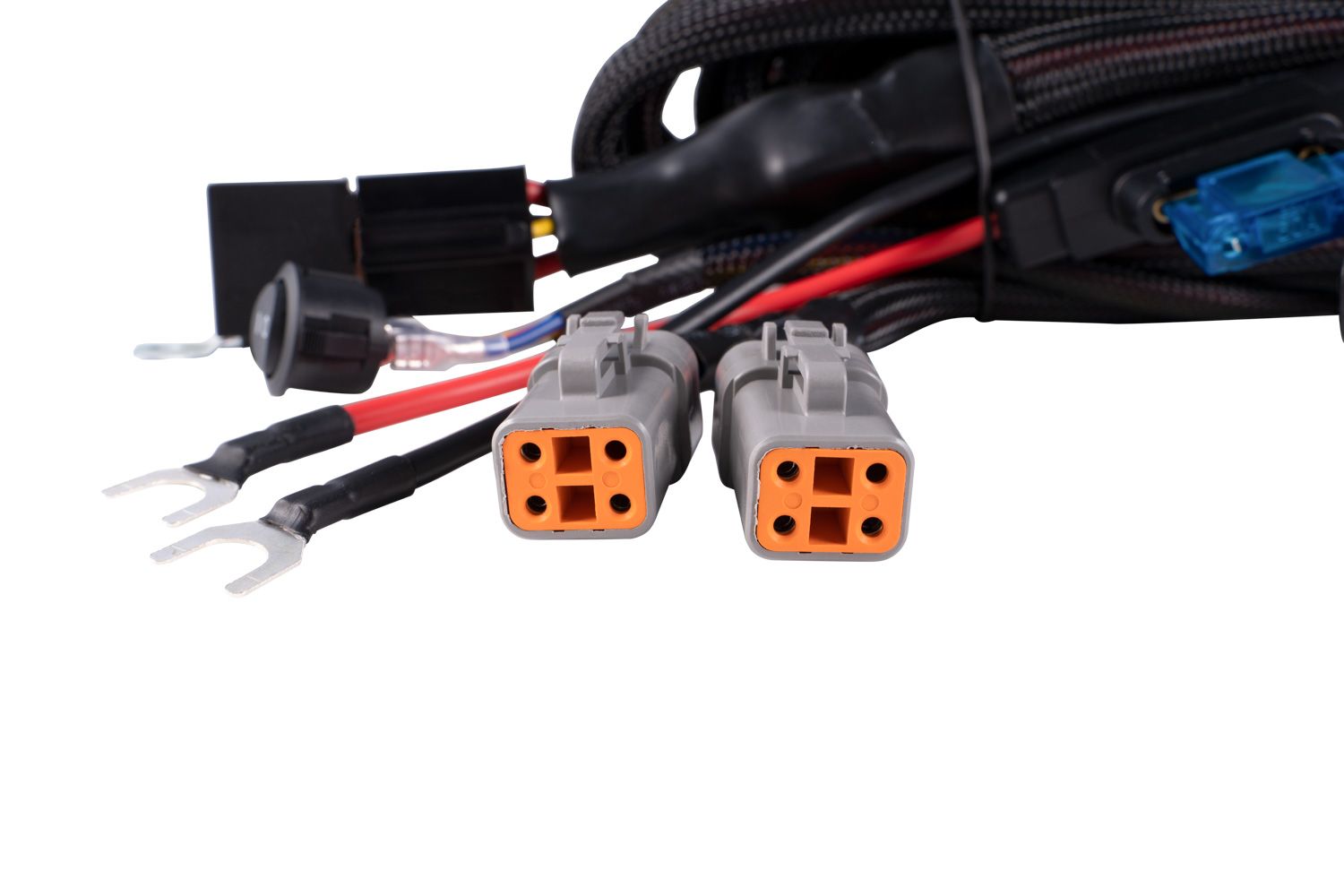

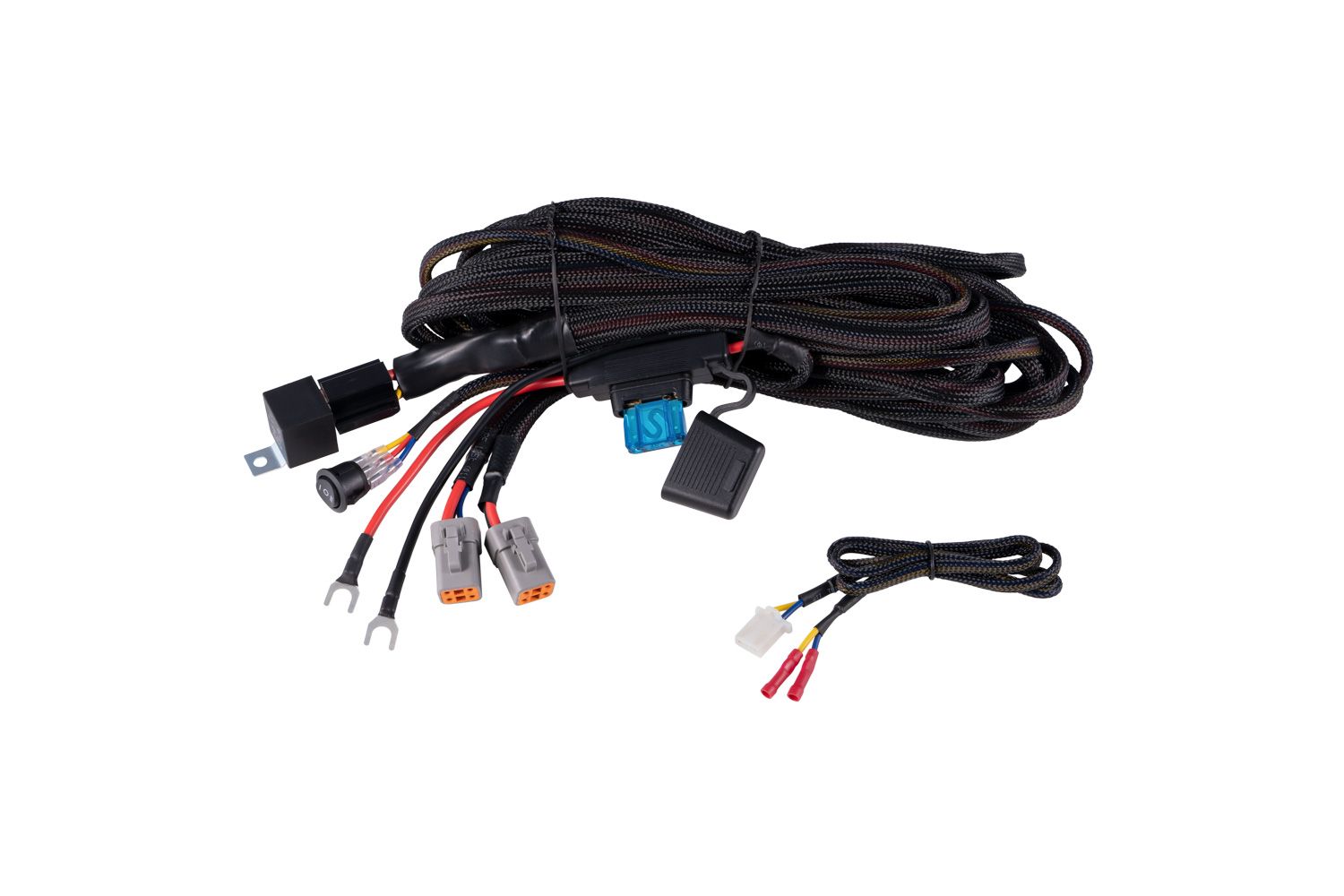

Ultra Heavy Duty Dual Output 4-pin Wiring Harness

$119.95
Shipping calculated at checkout.

BLACK FRIDAY BONUS
5% CASH BACK IN CUSTOMS CASH!
Learn More About Customs Cash
Quality Guaranteed No Exceptions
Secure Checkout Secure Payment
Easy Returns Return with Ease
USA BASED We Ship From The USA
DESCRIPTION

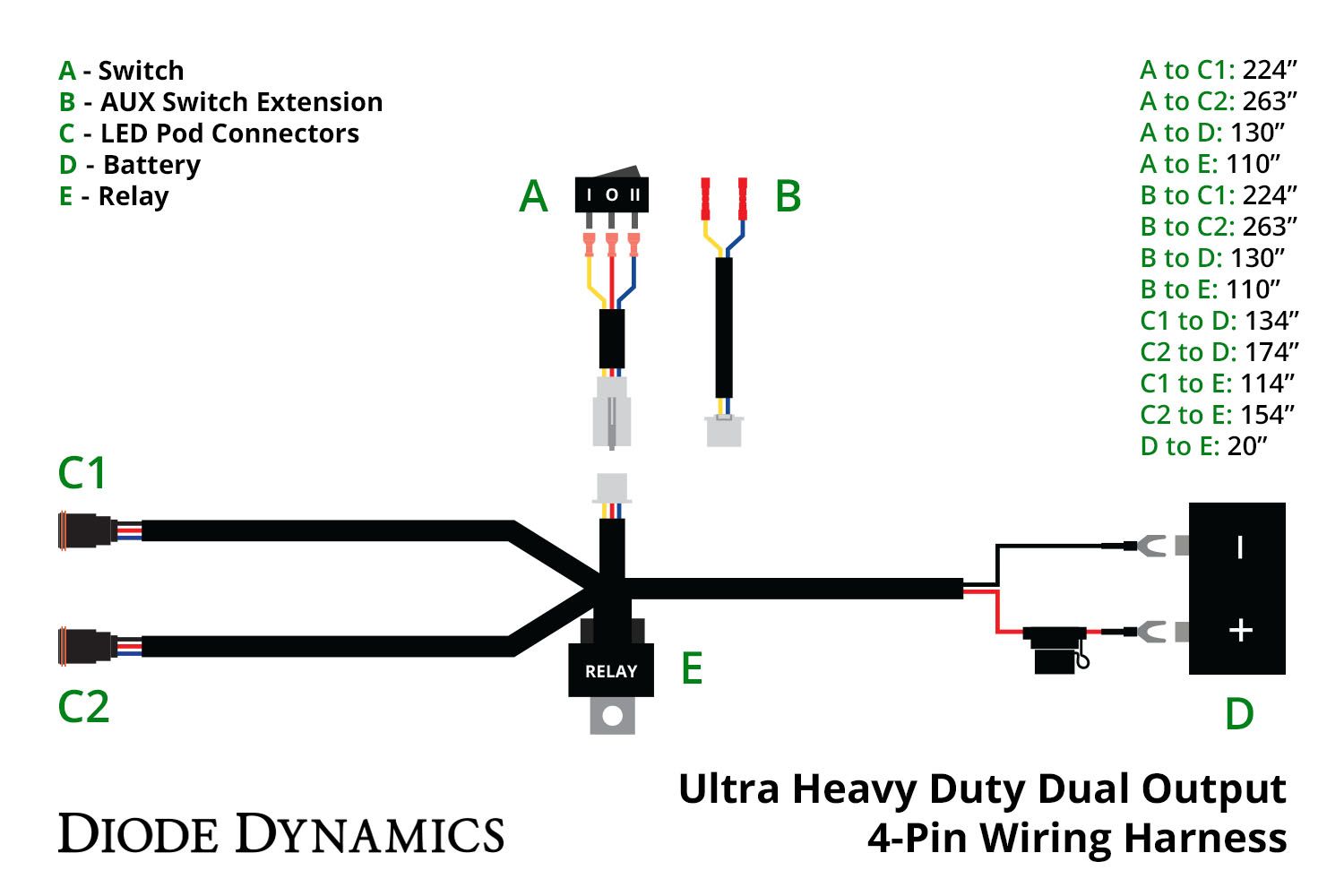

This harness has been designed specifically to safely power CrossLink Pro Lightbars with five (5) to eight (8) SS5 Pro LED Pods. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. You have the option to control your pods using the included three-way switch to toggle between the backlight, off, and the main beam, or control them through your Auxiliary Switch Bank with the included adapter. This harness uses high capacity 10AWG wiring and a Deutsch DT-P connector for simple plug-and-play installation.

This harness safely powers up to 60A of auxiliary lamps. The SS5 Pro draws 6.7A per pod.

Compatibility: Please note that this harness has two DT-P size output connectors. These are intended to connect to a corresponding Ultra-Heavy-Duty (UHD) SS5 Splitter harness, to build a multi-pod lightbar. These connectors will not plug directly into any LED product offered by Diode Dynamics.

After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.

FEATURES

Powers 5-8 Pod SS5 CrossLink Pro Lightbars.

Connects directly to the battery to power your LED pods.

High capacity 10AWG wiring.

Dual Deutsch DT-P output connectors.

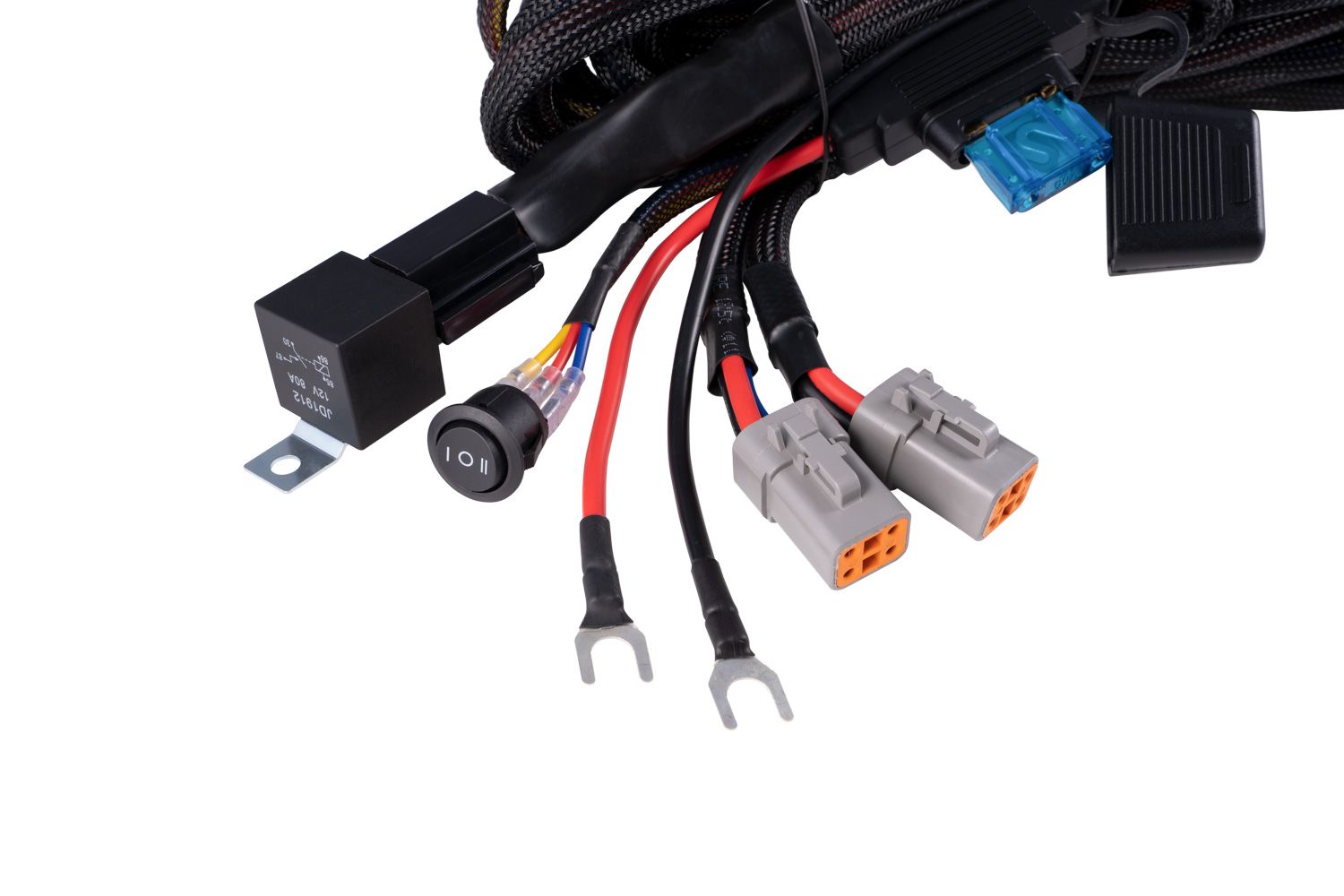

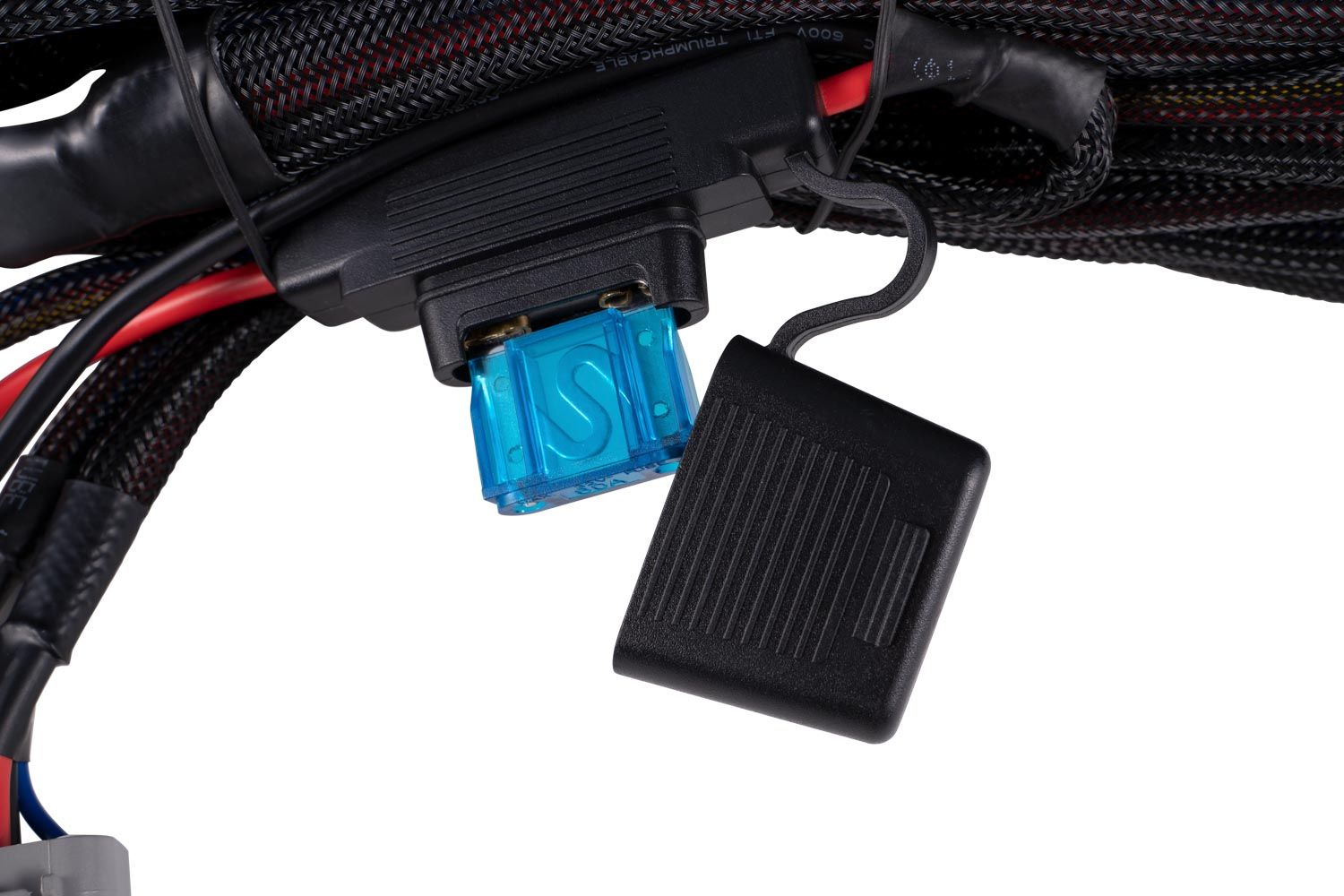

60A waterproof fuse, and 80A 12V relay to safeguard the electrical systems in your pods.

Note: This is intended to be used with the 5-8 Pod SS5 Pro Crosslink Lightbars.

INSTALLATION GUIDE

Installation Time: 5-10 minutes

Tools Needed: None

Modification: None
WARRANTY

This product has a 3 Year Limited warranty serviced and supported by Diode Dynamics.
