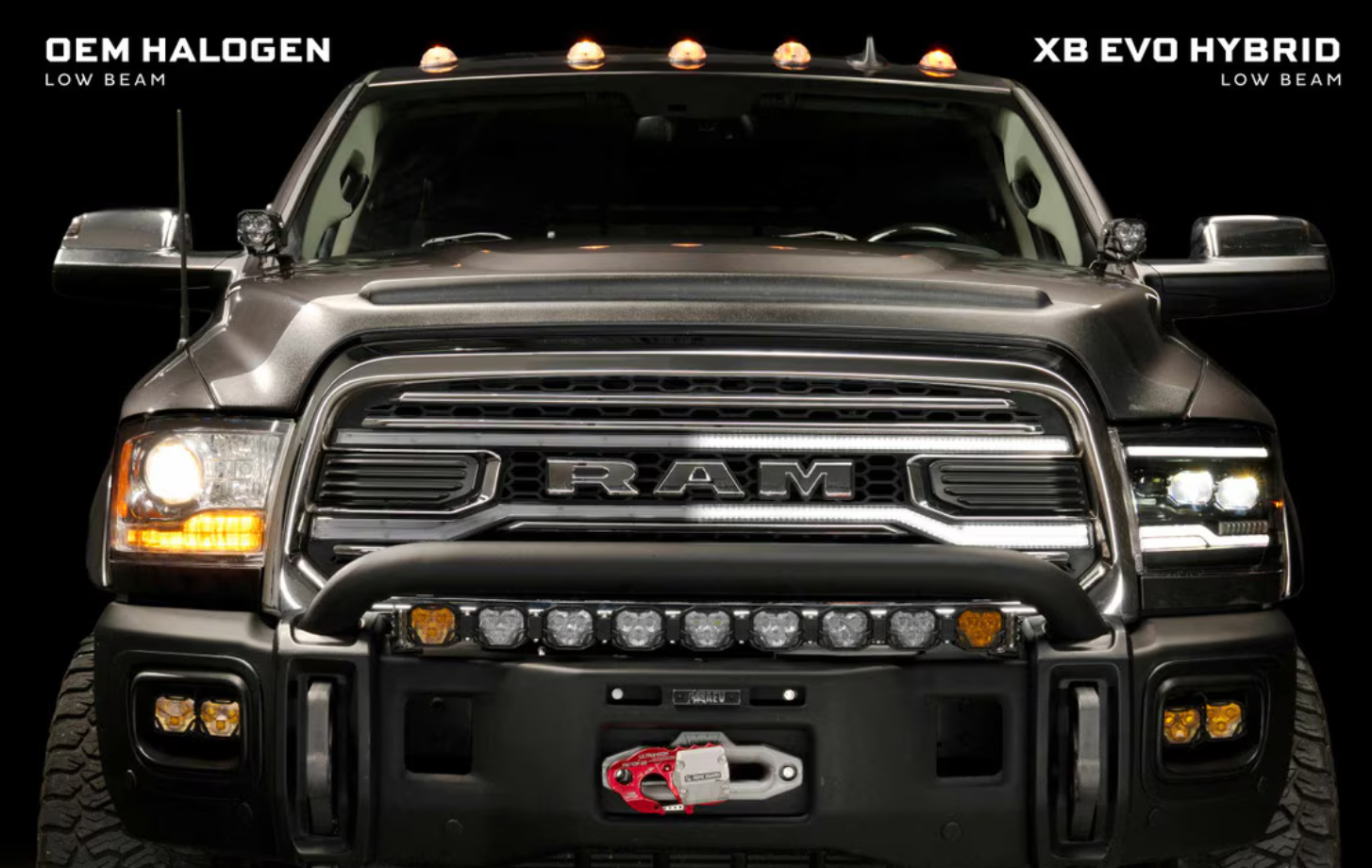

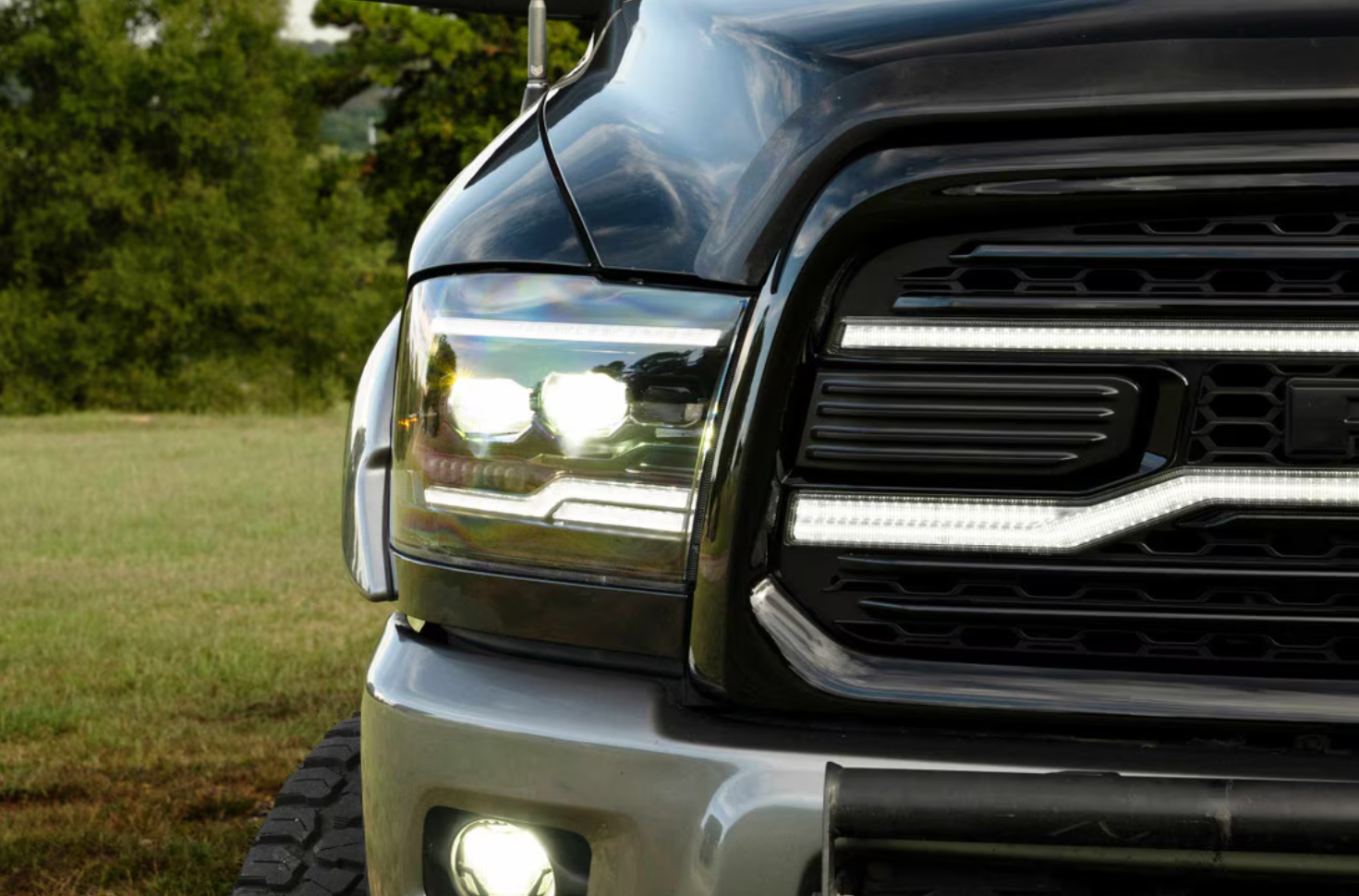

The all-new XB Evo Hybrid headlights are a showcase of everything Morimoto is made of at a price that everybody can afford. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Here, the Ram XB Evo Hybrid headlight utilizes the same Bi-LED projectors found in the higher end XB Evo model to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan. XB Evo Hybrid headlights aren't cheap, but they are built to a high standard and should easily last the life of your truck! We're proud to stand behind the product with an industry-leading five-year warranty.
FEATURES
XB Evo Hybrid: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.
All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing dual Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform.

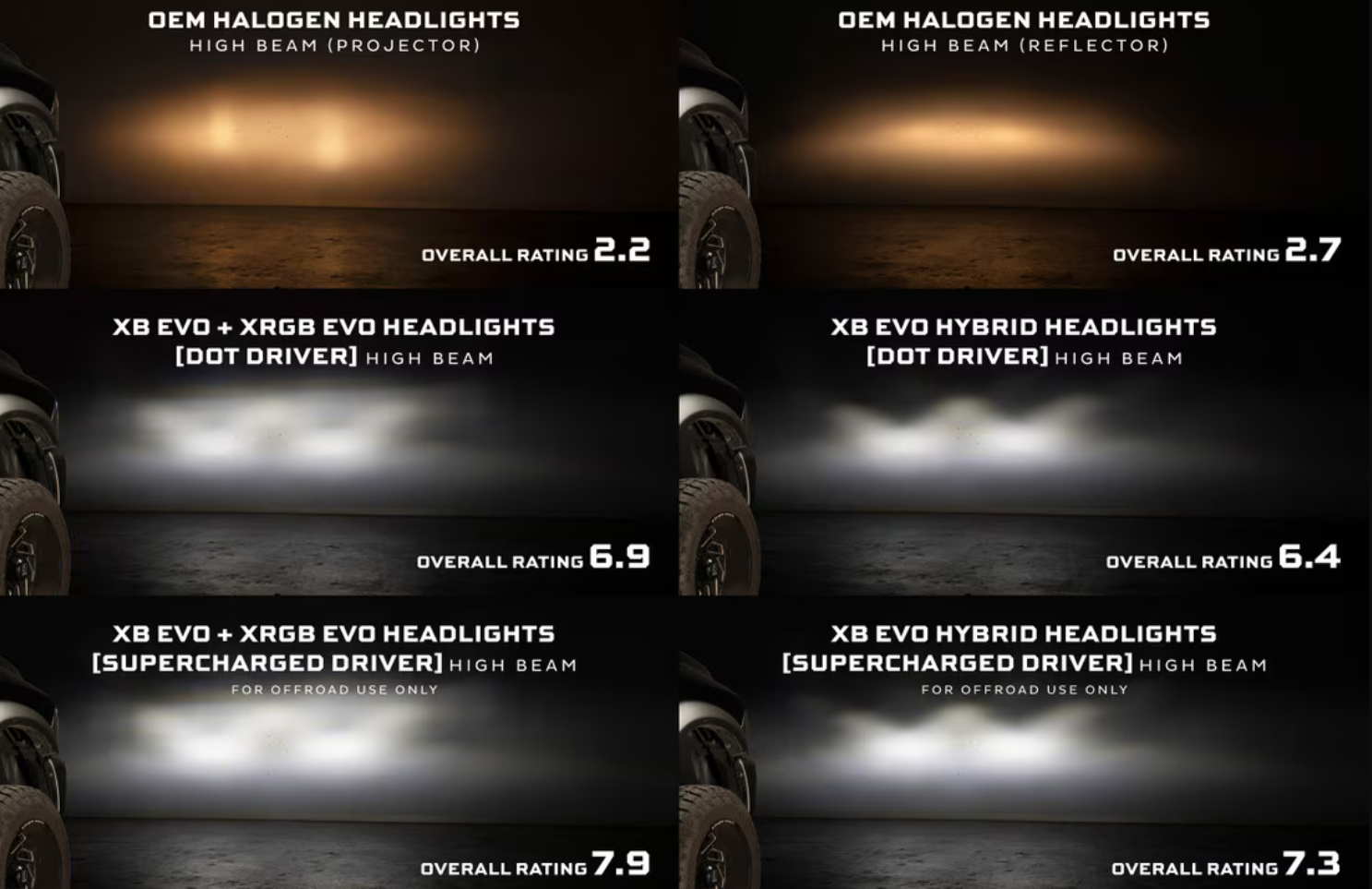

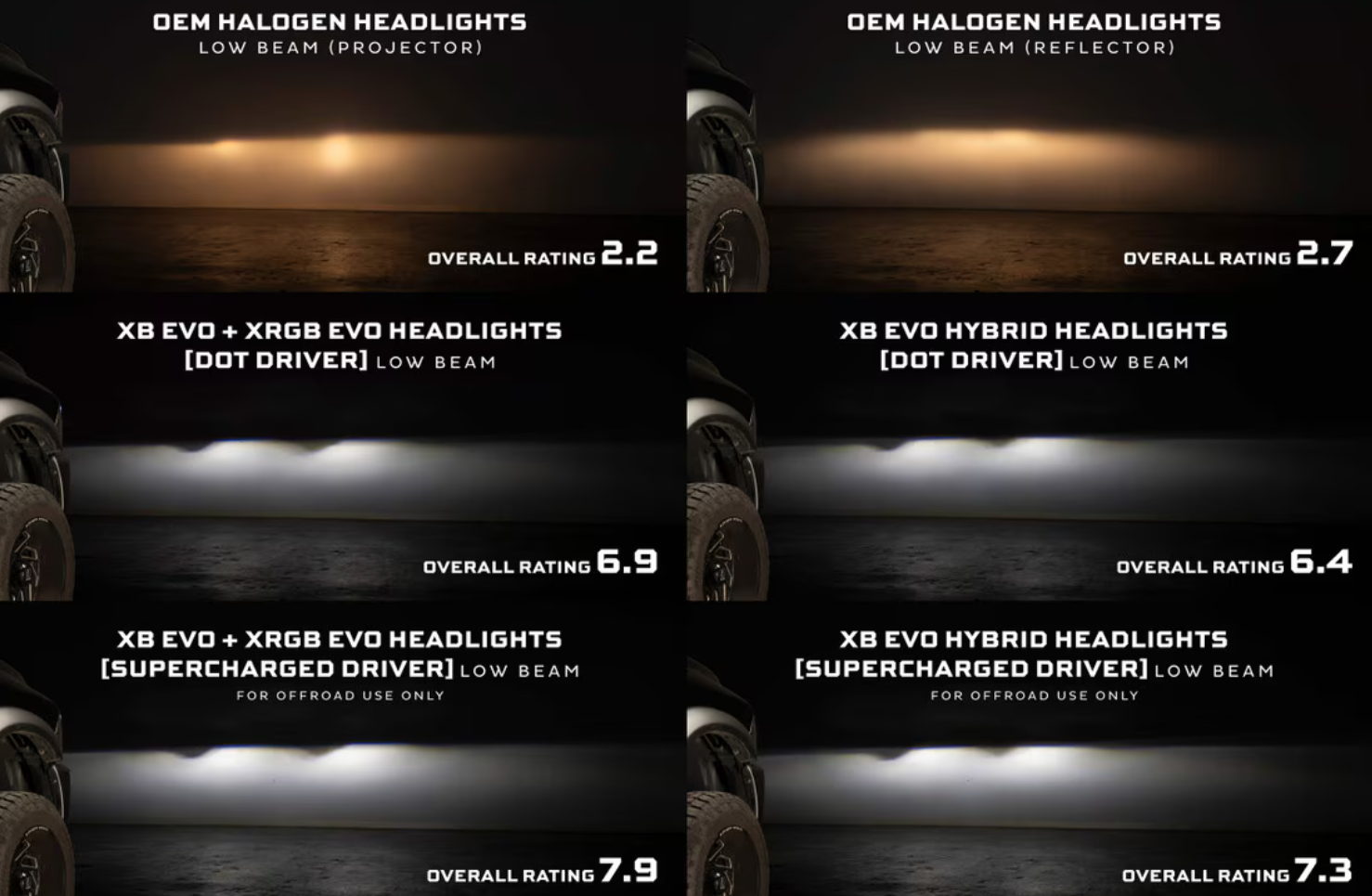

On and Off Road: DOT Compliant for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30%, making them the brightest option for Ram owners who want to maximize output for off-road use.
Designed, engineered, and tested: In the USA by Morimoto, the XB Evo Hybrid headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.
TECH SPECS
What's Included

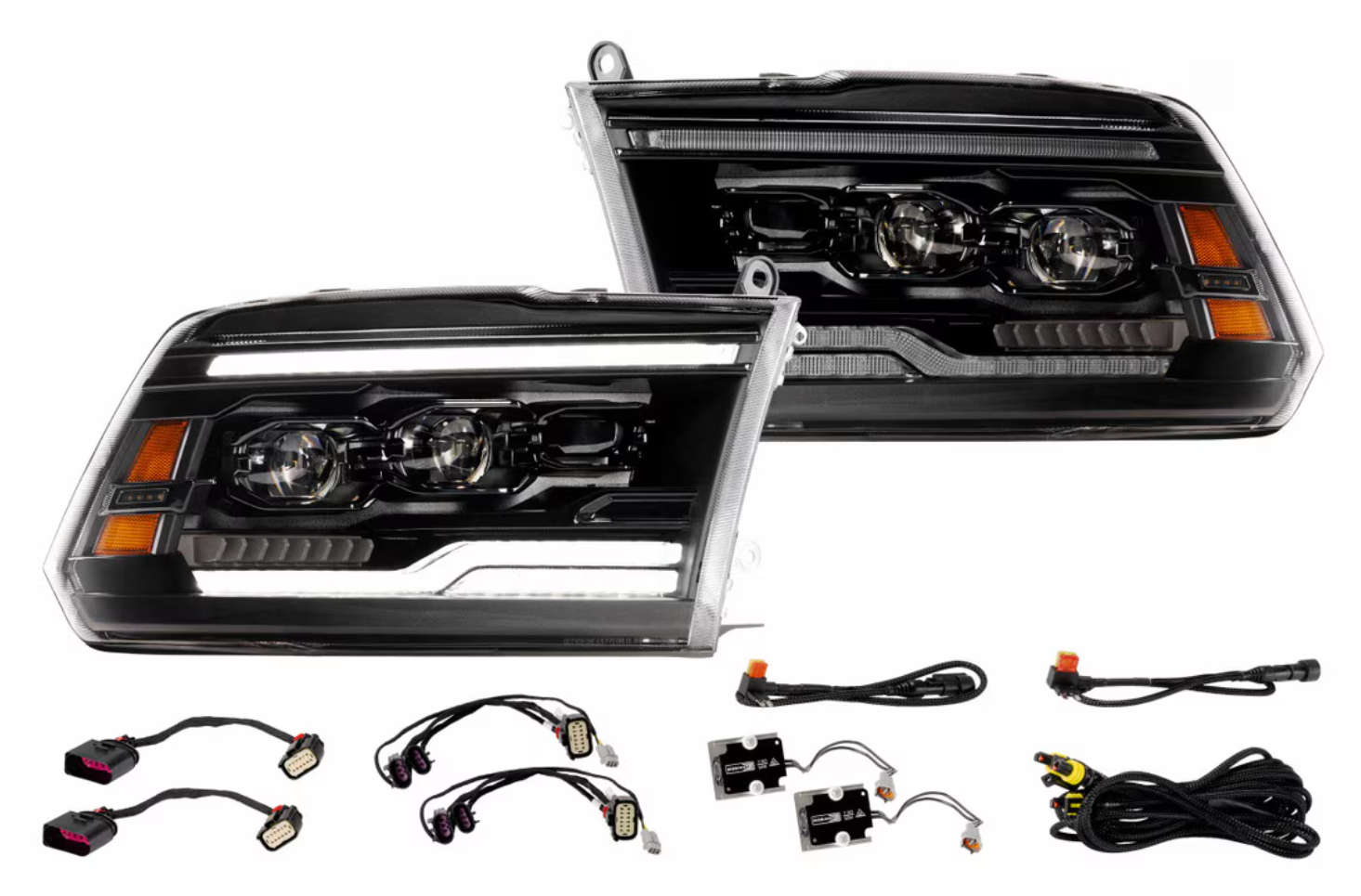

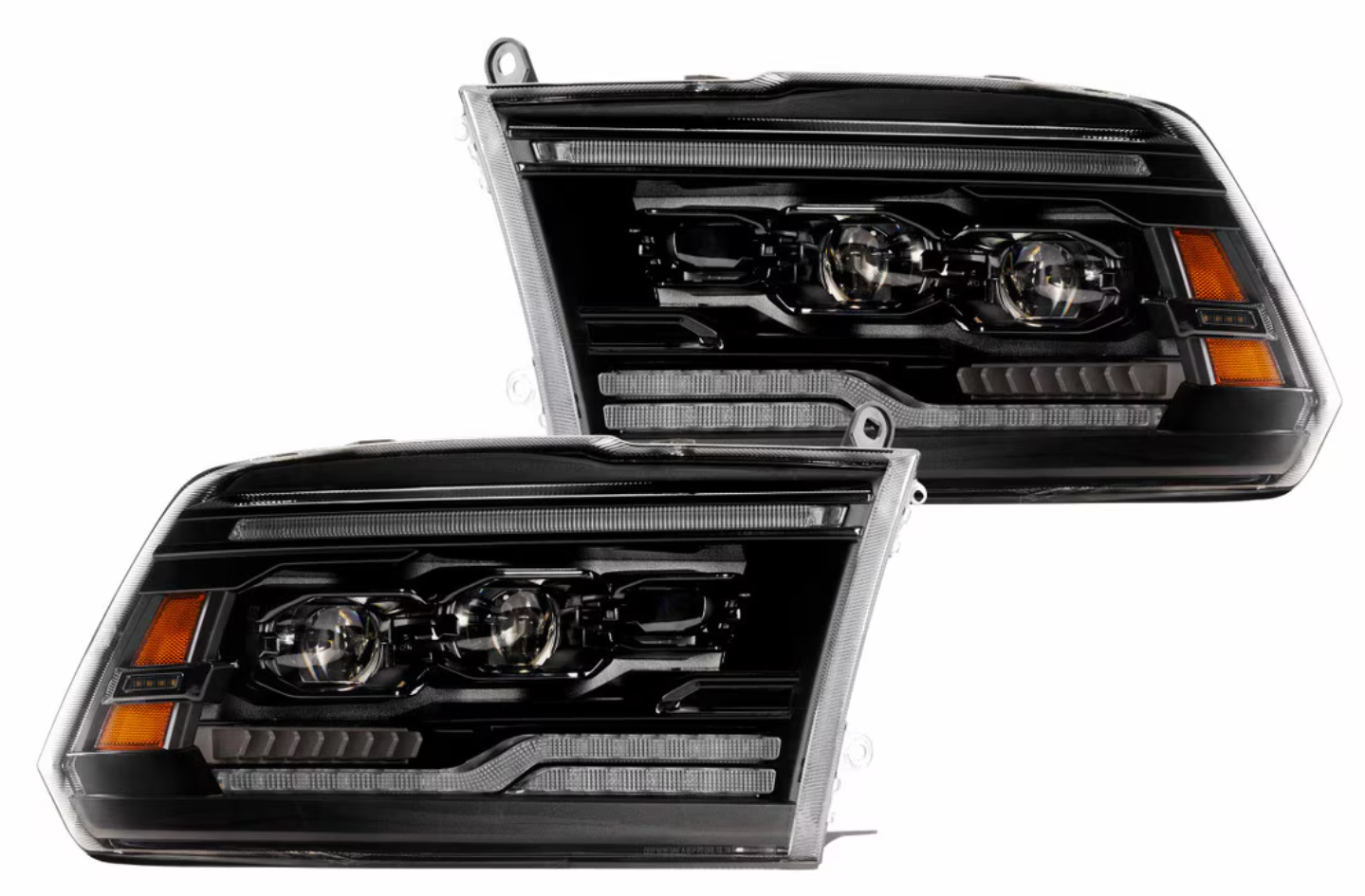

Headlights : One Pair (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)

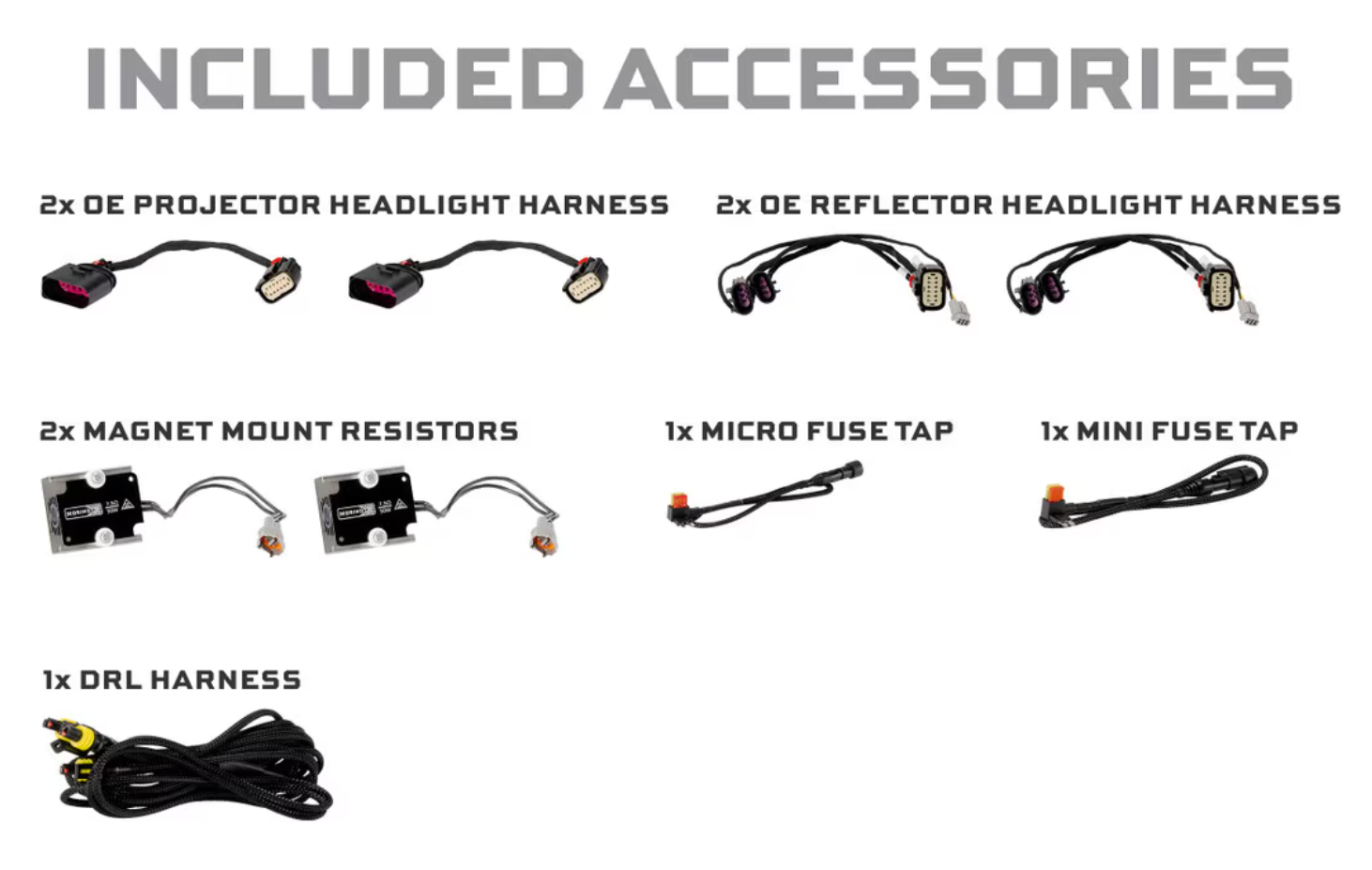

Accessories : 1x Mini Fuse Tap, 1x Micro Fuse Tap, 1x DRL Harness, 2x Magnet-Mount Resistors, 2x OE Reflector Headlight Harnesses, 2x OE Projector Headlight Harnesses

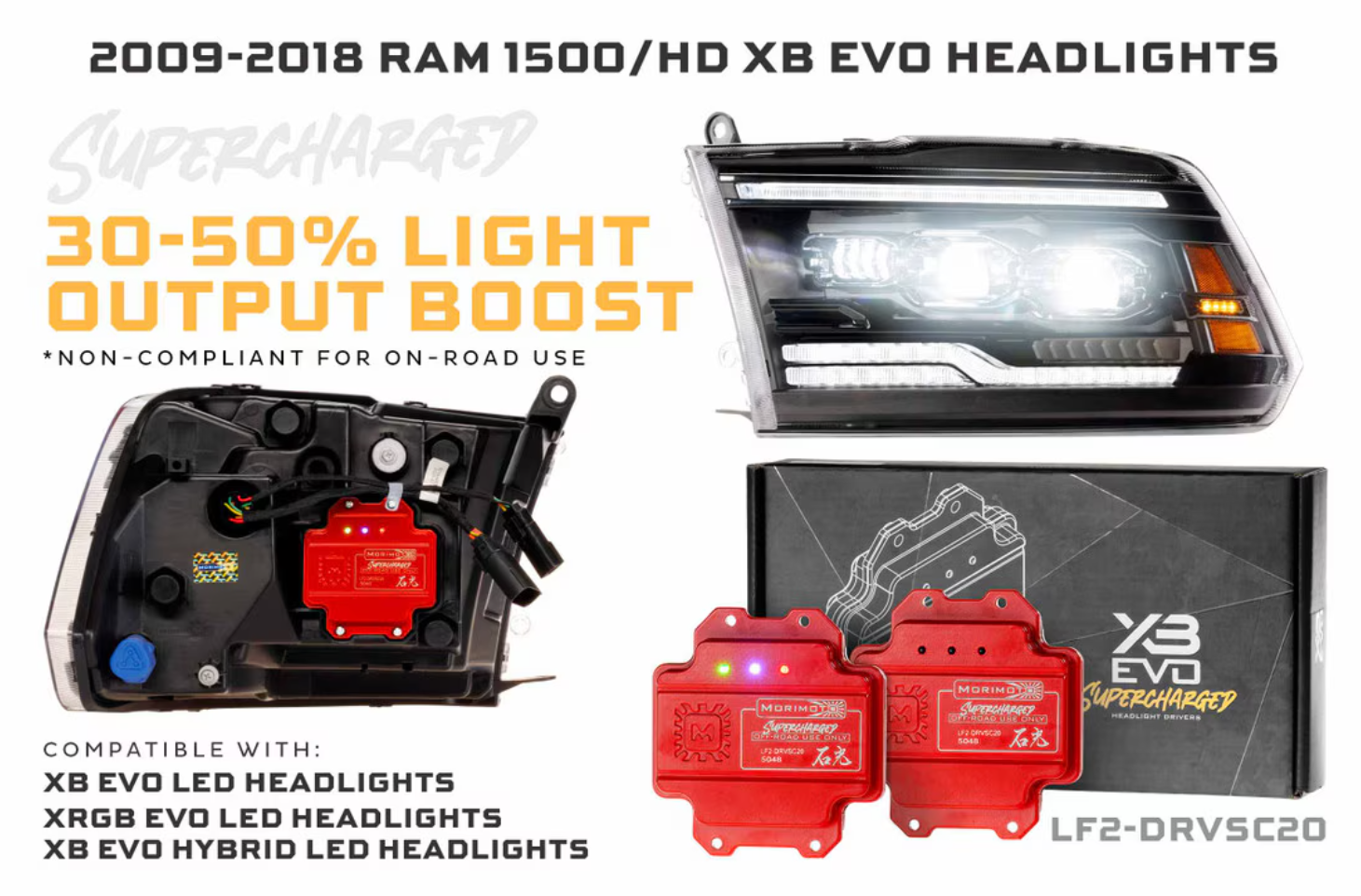

Optional Supercharged Drivers : 2x LF2-DRVSC20 Drivers
Compatibility
Dodge Ram 1500 : 2009-2018
Dodge Ram HD : 2009-2018
Ram 1500 Classic : 2019-2024
Replaces Mopar Part # : 55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC
Supercharged Drivers : Compatible with LF2-DRVSC20 drivers
Compliance : Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
Tech Specs
Traffic Pattern : LHD / Right Hand Traffic Only
Output (Standard Drivers) : DOT (FVMSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

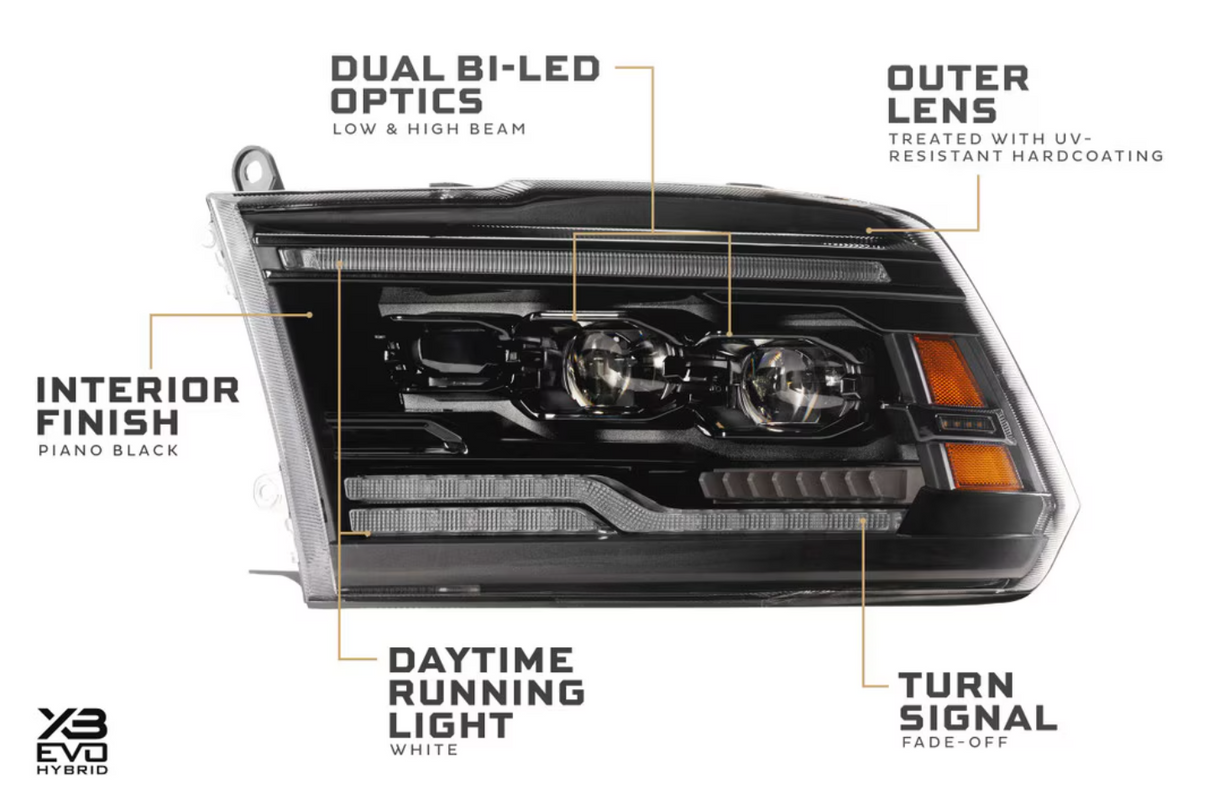

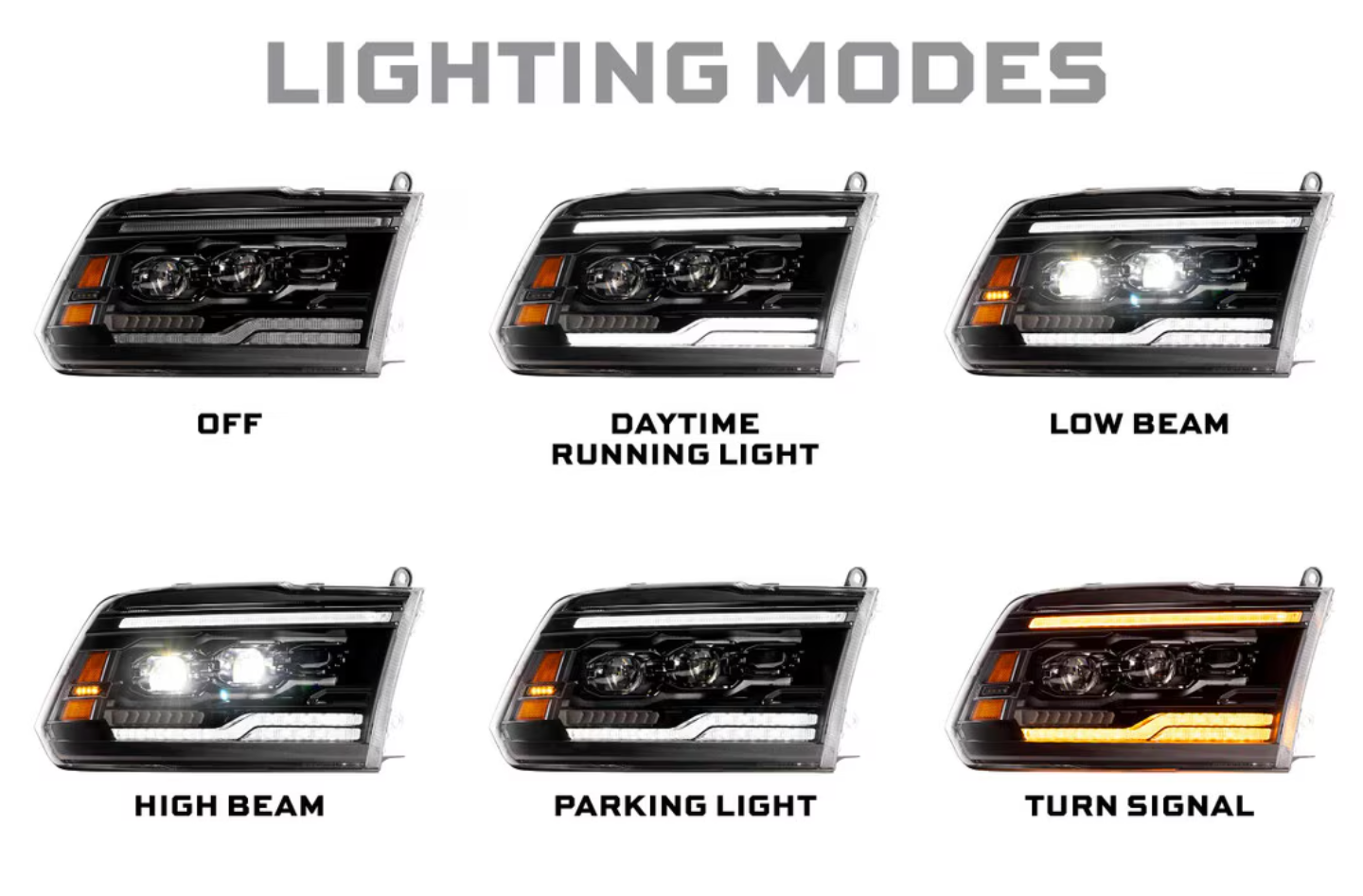

Functions : Low, High, Park, Turn, DRL
Turn Signal Mode : Instant On / Fade-Off
DRL Color : White
Internal Finish : Piano Black
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
WARRANTY
This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
SHIPPING INFORMATION
We’re excited to partner with Morimoto to bring this product to you! Orders for this item will ship directly from their facility, ensuring fast delivery and the same great quality you expect. Please note that if you order additional items, they may arrive separately.
This product is estimated to ship mid January
