DESCRIPTION

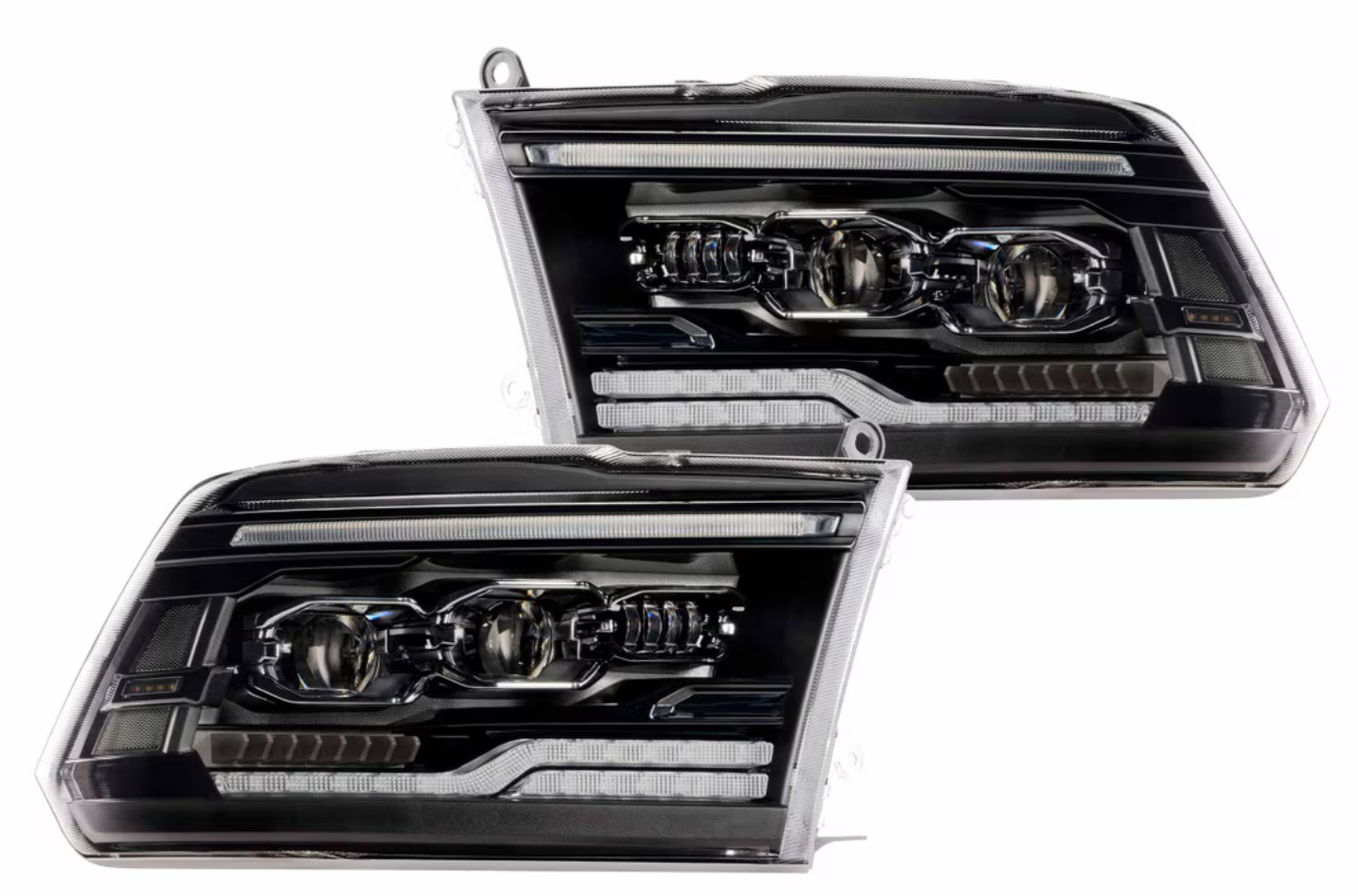

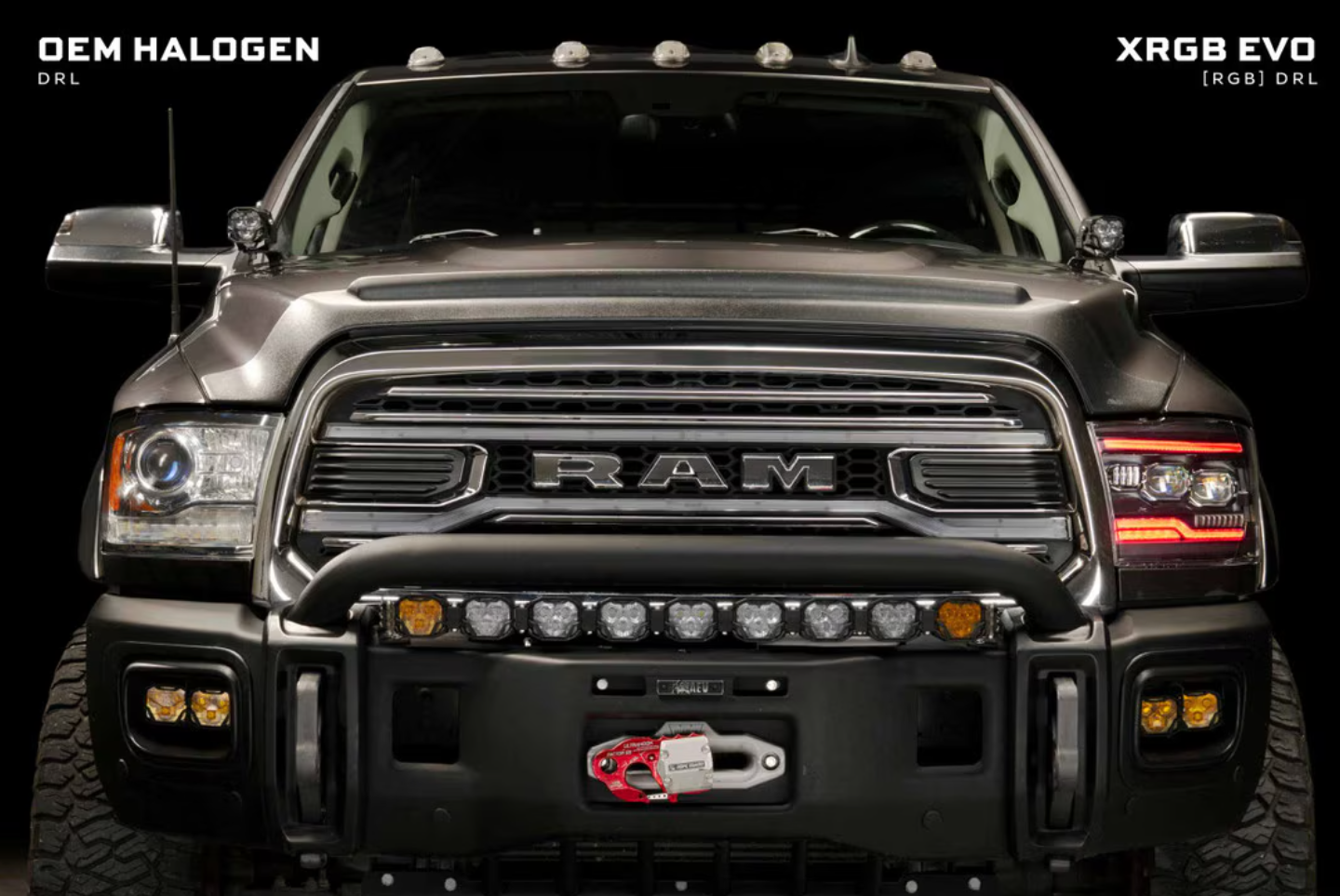

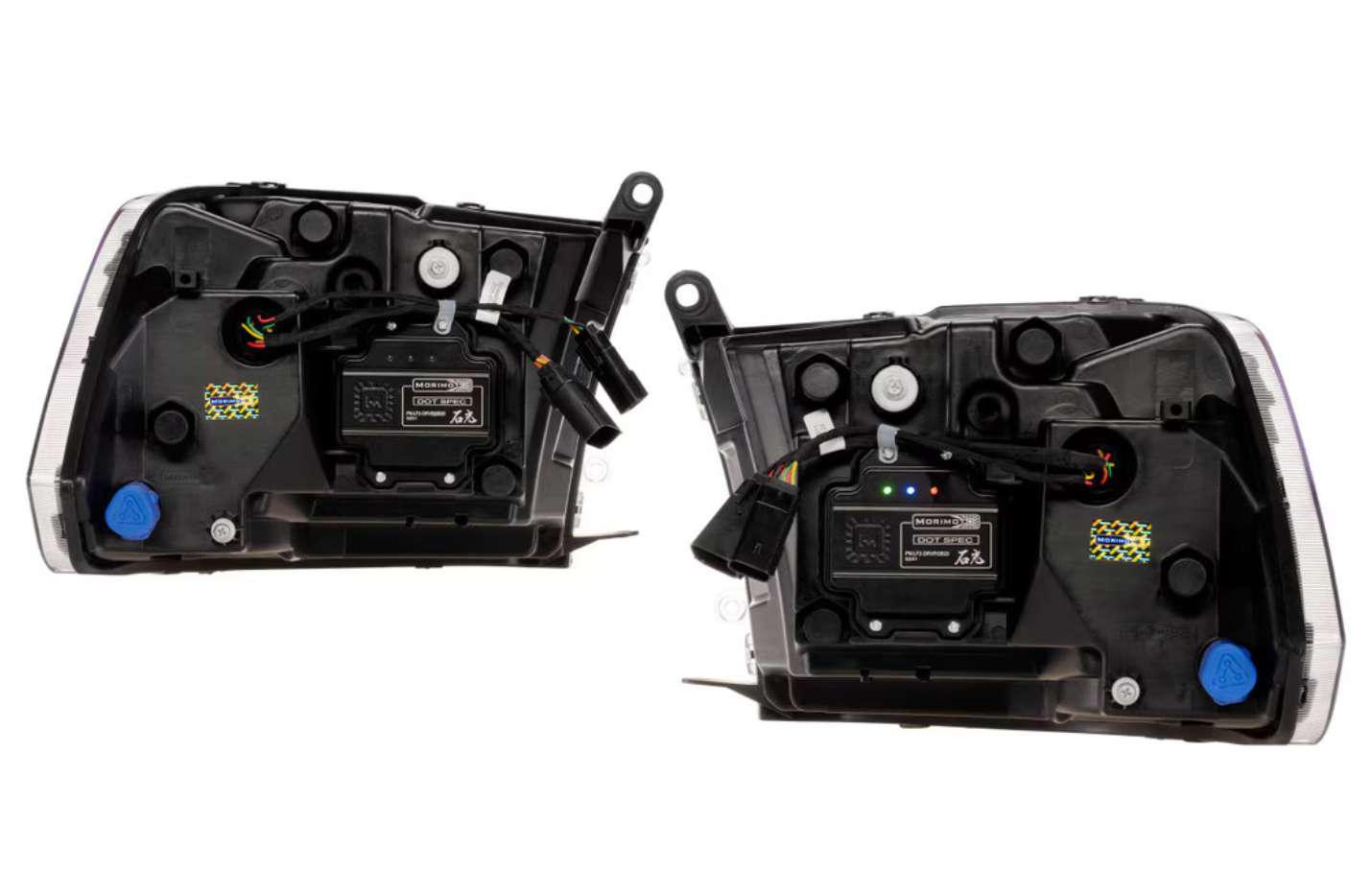

The all-new XRGB Evo headlights are a showcase of everything Morimoto is made of. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Unique to the XRGB Evo, the daytime running light is Bluetooth app-controlled and can be set any color you can imagine. With the app turned off, the standard DRL can be configured to run full-time in either white or amber with no compromise in intensity either way. The signal swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug n play key on the back of each headlight. When starting your Ram, the optics will automatically illuminate in a multi-stage sequence before turning back off. XRGB Evo headlights aren't cheap, but they are built to a high standard and should easily last the life of your truck! We're proud to stand behind the product with an industry-leading five-year warranty.
FEATURES
XRGB Evo: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.

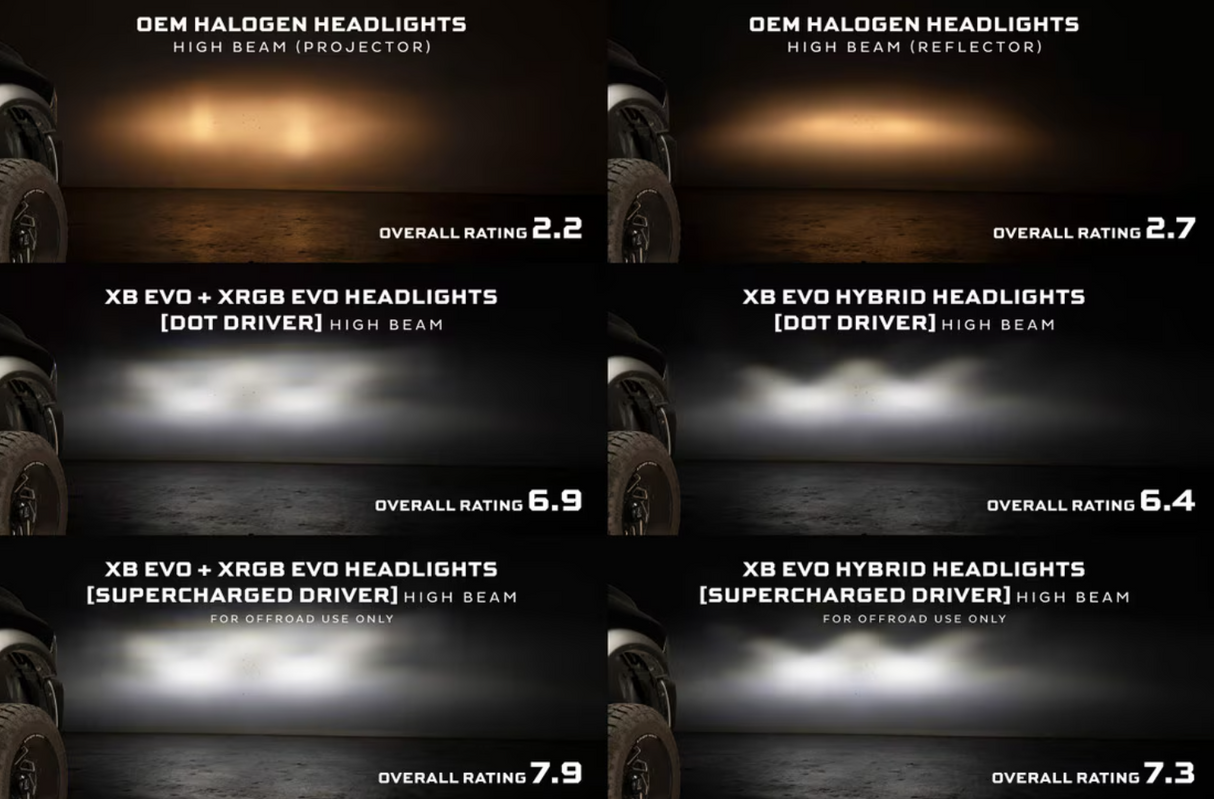

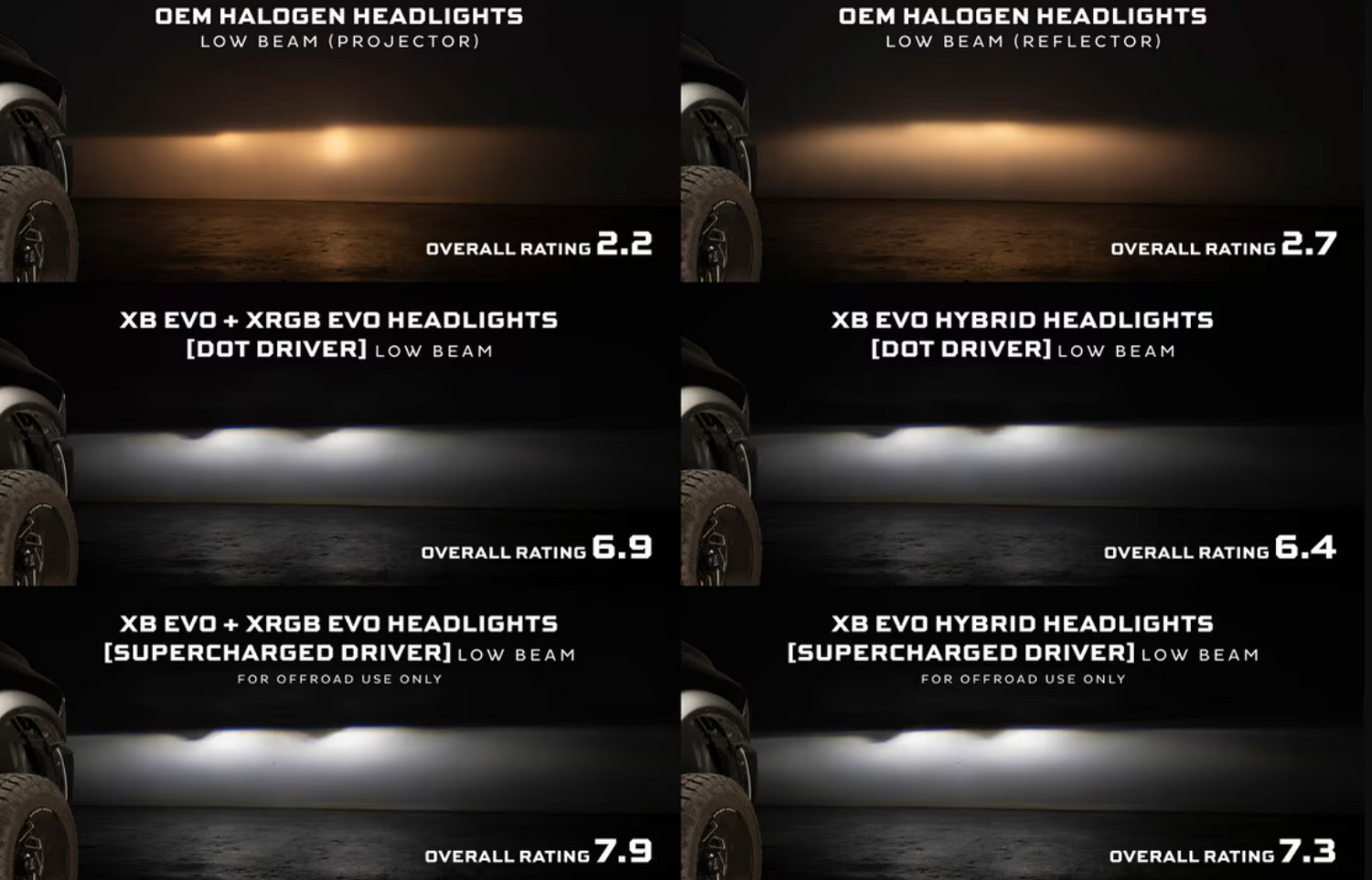

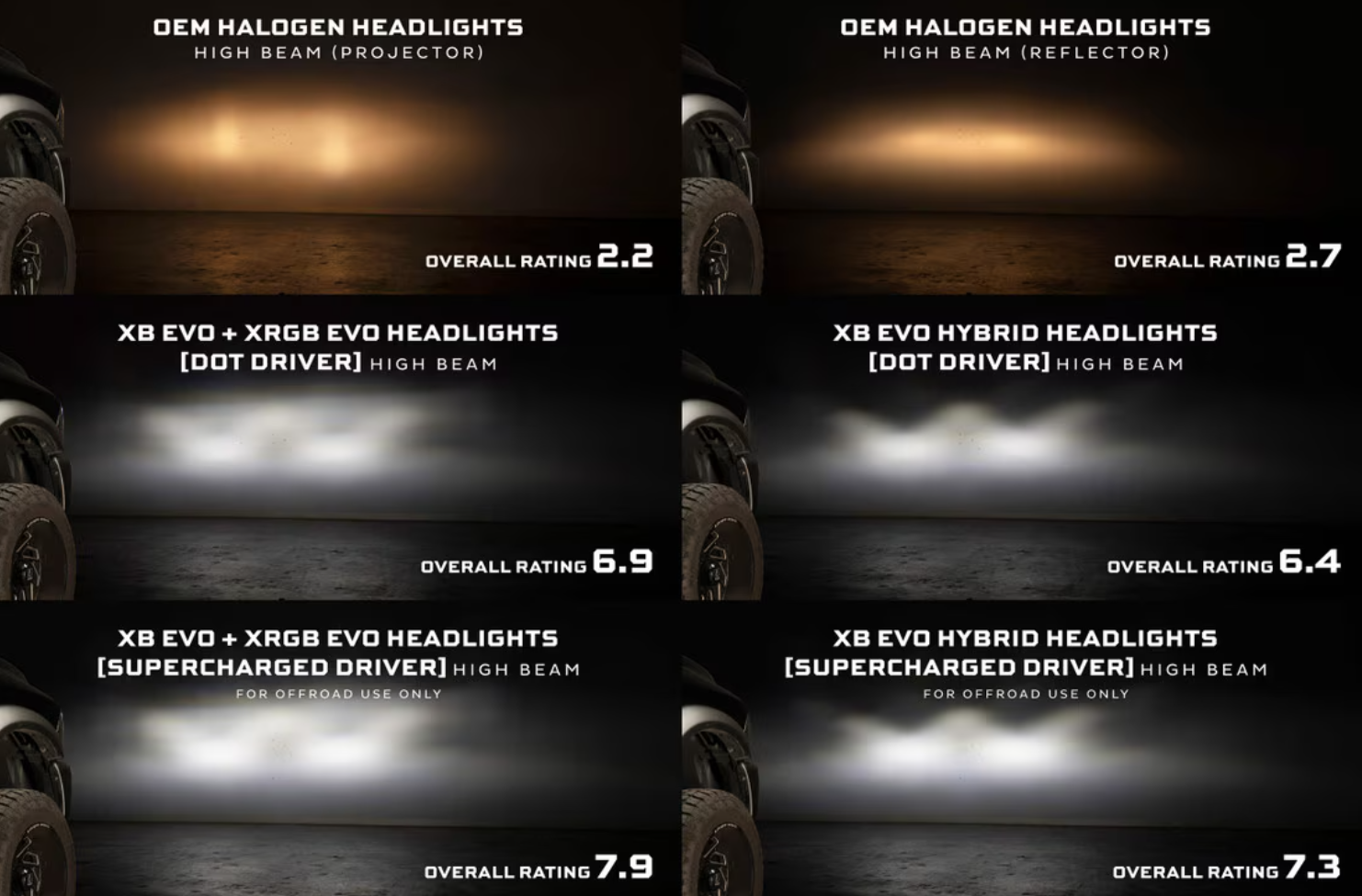

All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing dual Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform the XRGB Evo.

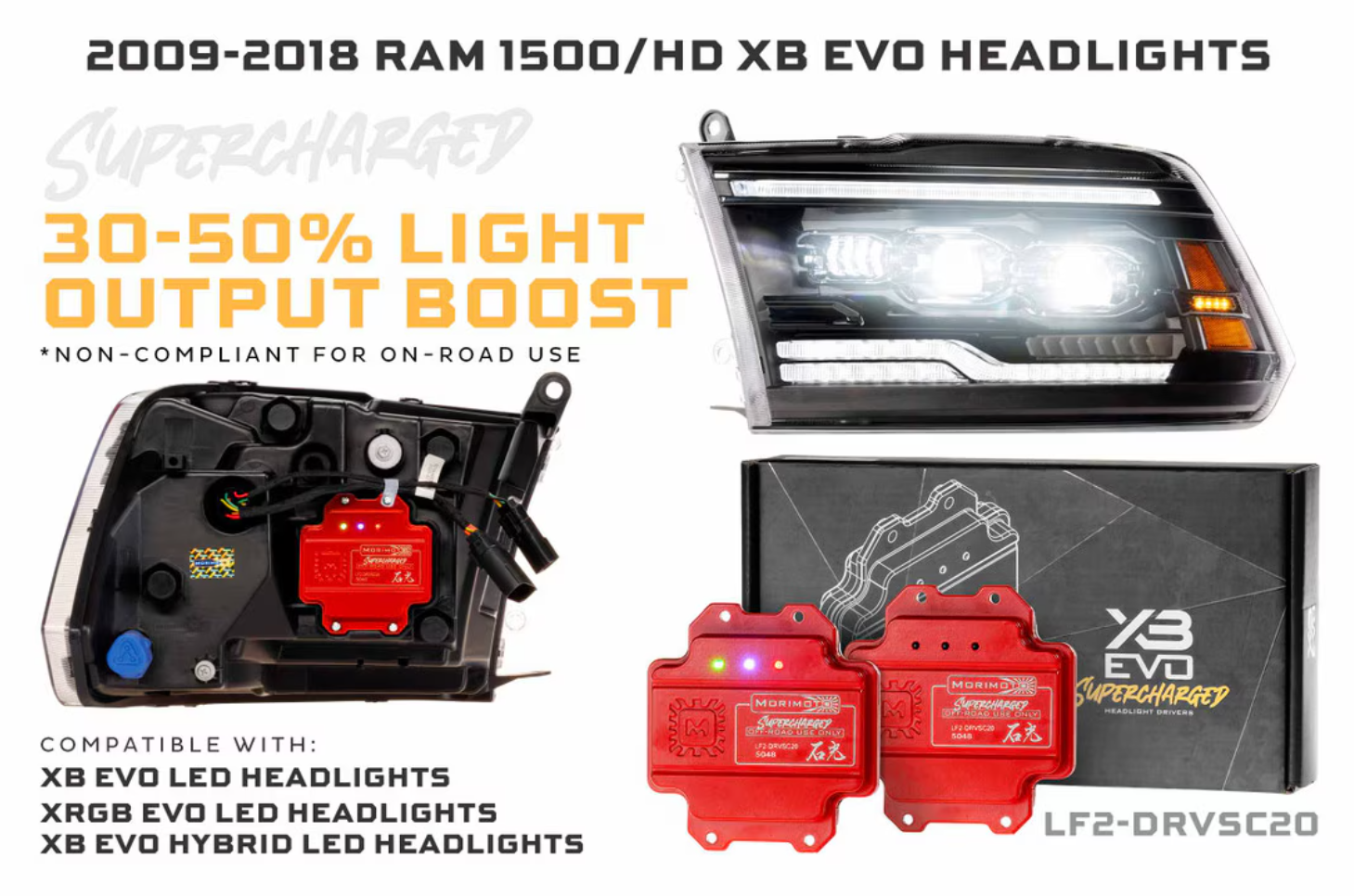

On and Off Road: Optional Supercharged LED drivers boost intensity by 30%, making them the brightest option for Ram owners who want to maximize output for off-road use.

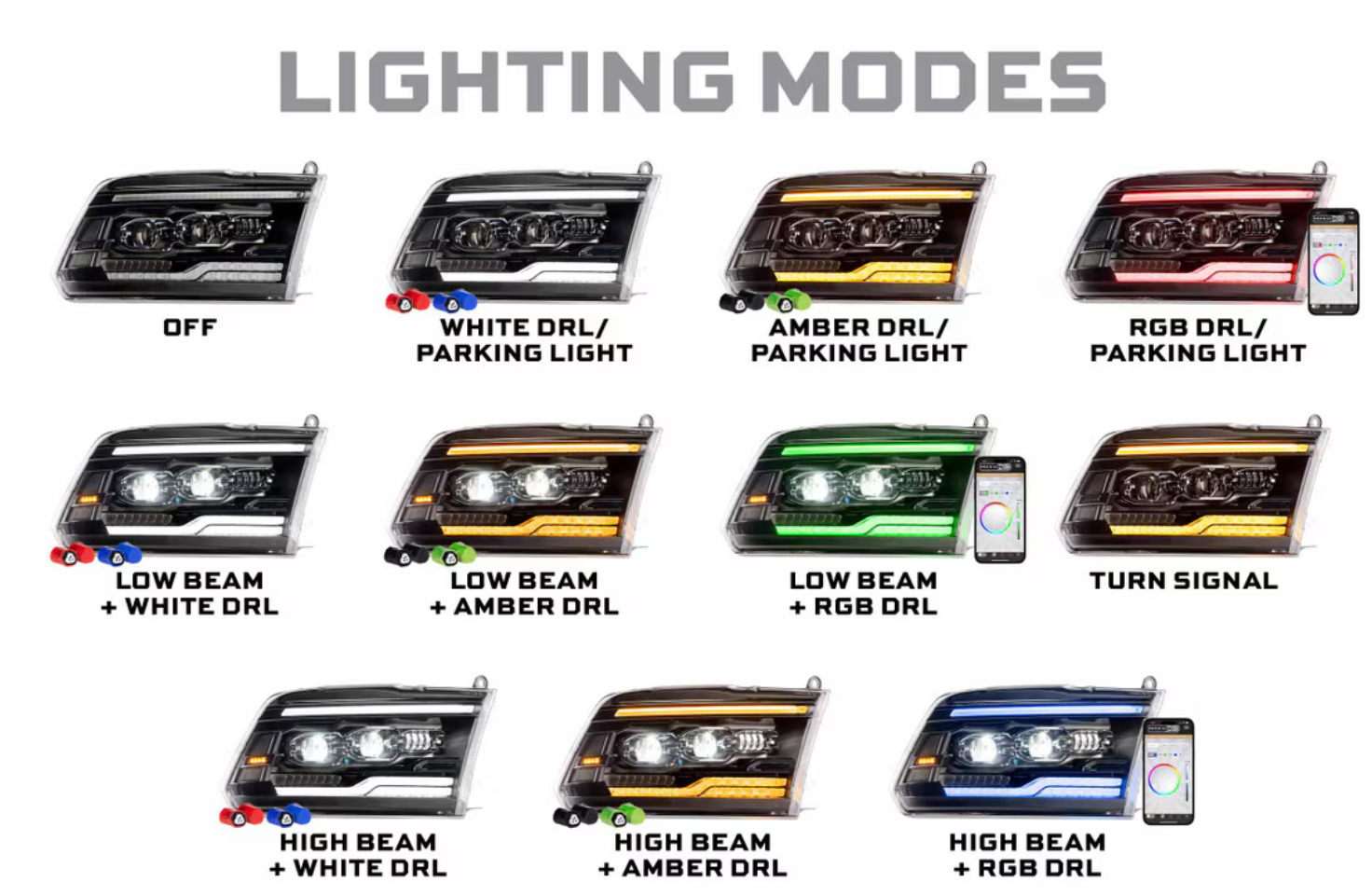

Signal Swap Keys: Enable users to further personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XRGB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
Designed, engineered, and tested: In the USA by Morimoto, the XRGB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.
TECH SPECS
What's Included
Headlights : One Pair (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)

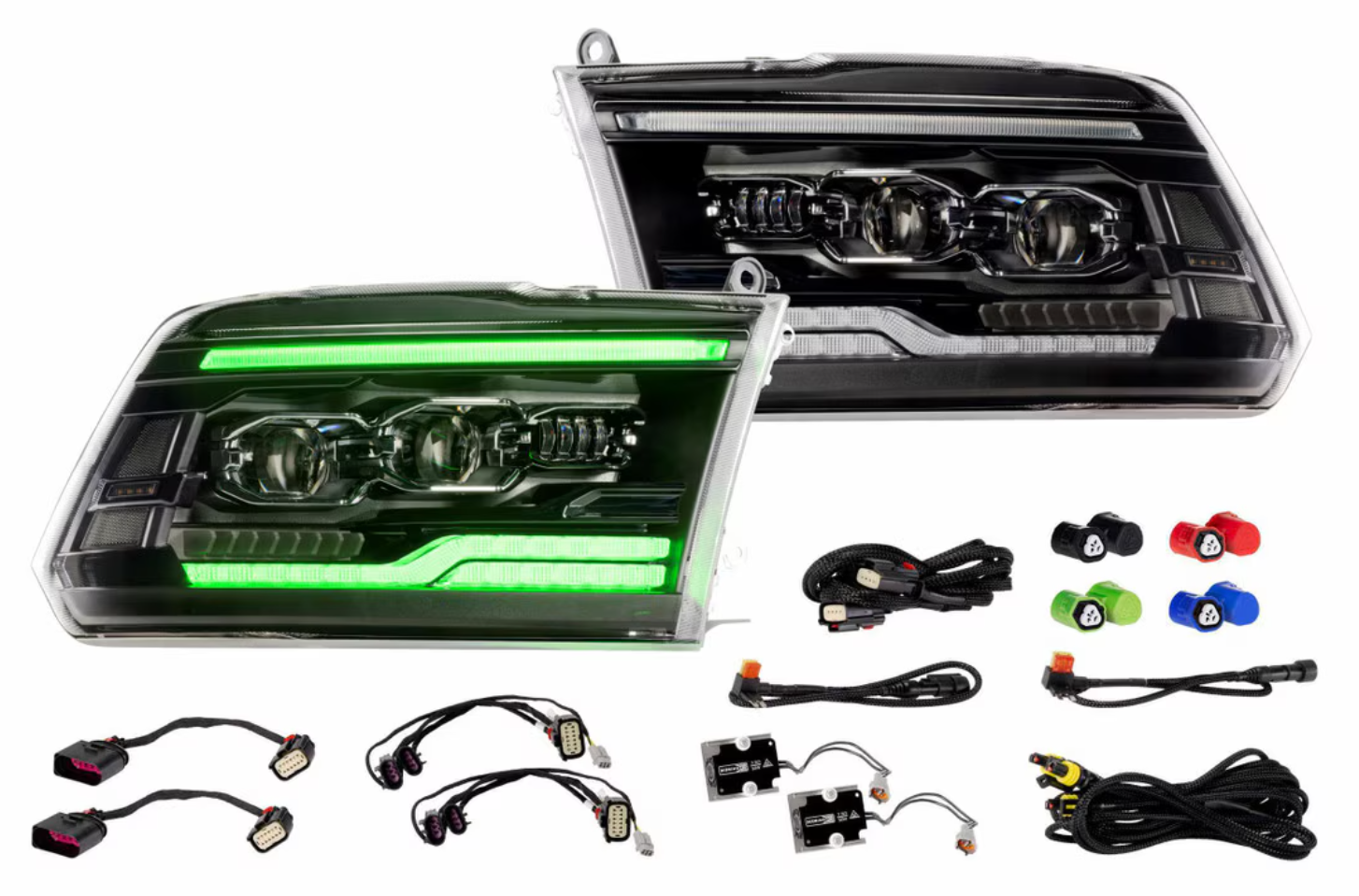

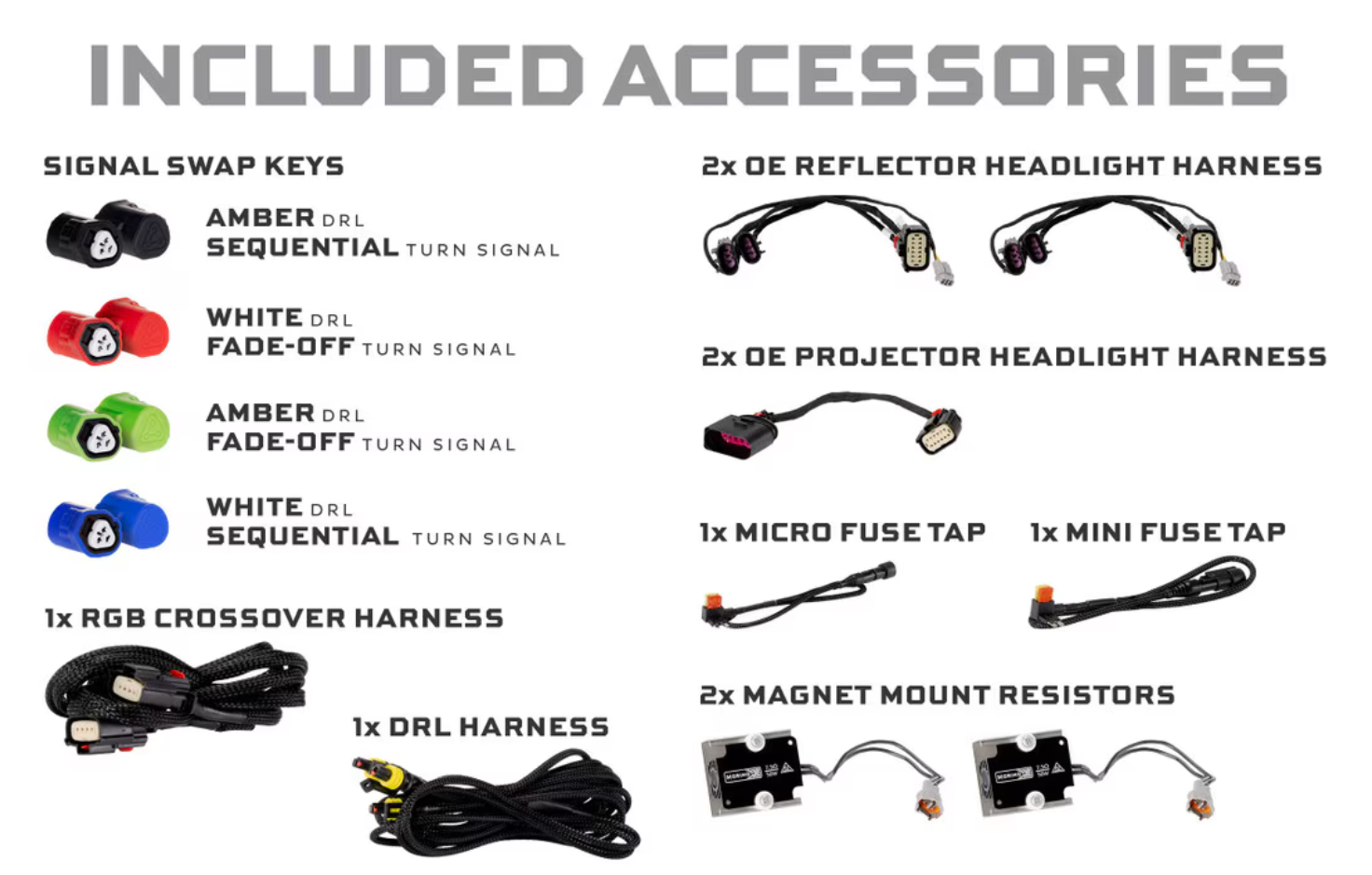

Accessories : 1x Mini Fuse Tap, 1x Micro Fuse Tap, 1x DRL Harness, 2x Magnet-Mount Resistors, 2x OE Reflector Headlight Harnesses, 2x OE Projector Headlight Harnesses, 1x RGB Crossover Harness, 8x (4 Pairs) DRL / Signal Mode Selectors

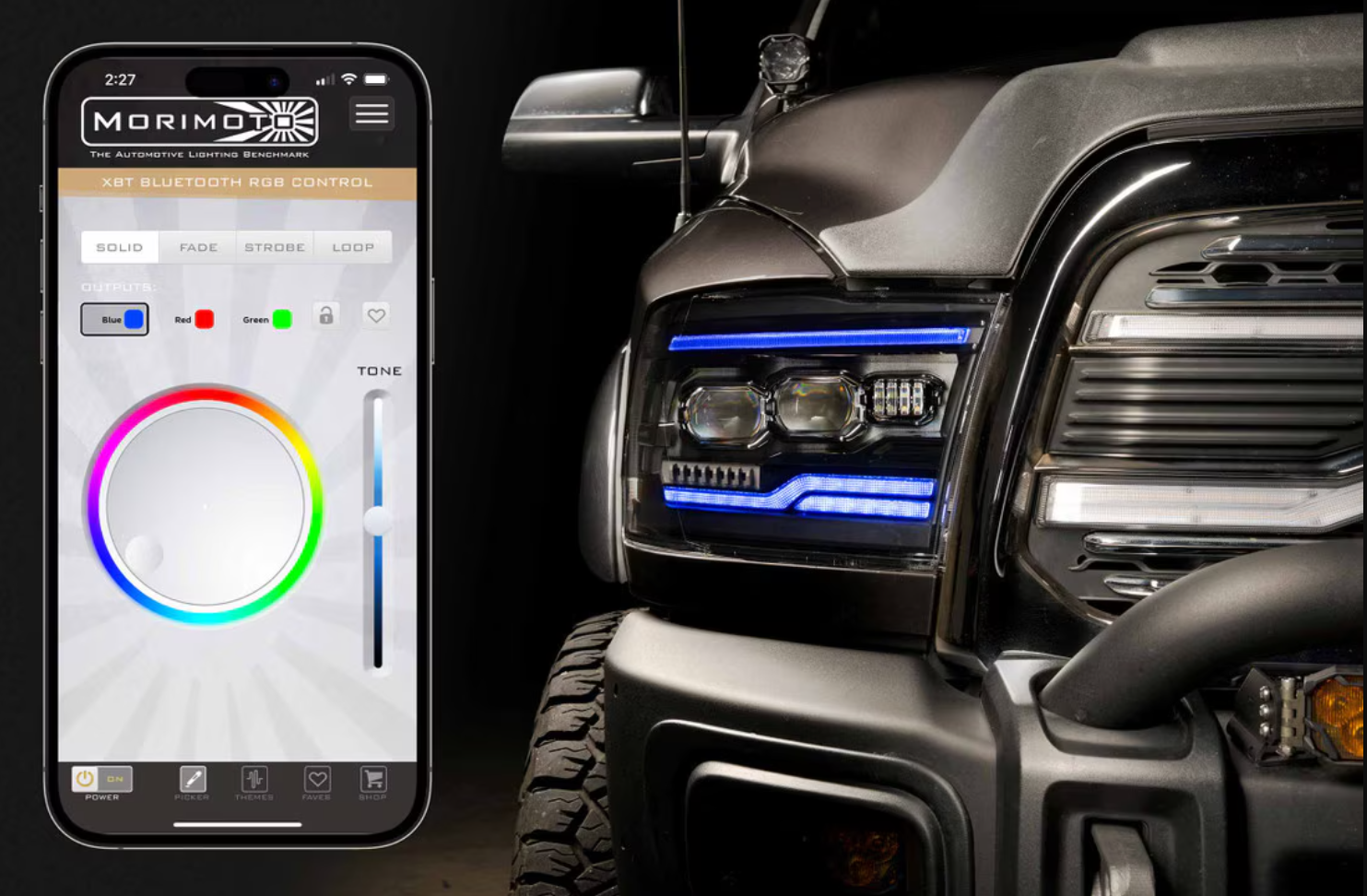

XRGBT Bluetooth App : Free Download in App Store (Compatible phone required)
Optional Supercharged Drivers : 2x LF2-DRVSC20 Drivers
Compatibility
Dodge Ram 1500 : 2009-2018
Dodge Ram HD : 2009-2018
Ram 1500 Classic : 2019-2024
Replaces Mopar Part # : 55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC
Compliance : Due to the color-changing RGB DRL, these lights are not complaint for on-road use in the USA or Canada.
Supercharged Drivers : Compatible with LF2-DRVSC20 drivers
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

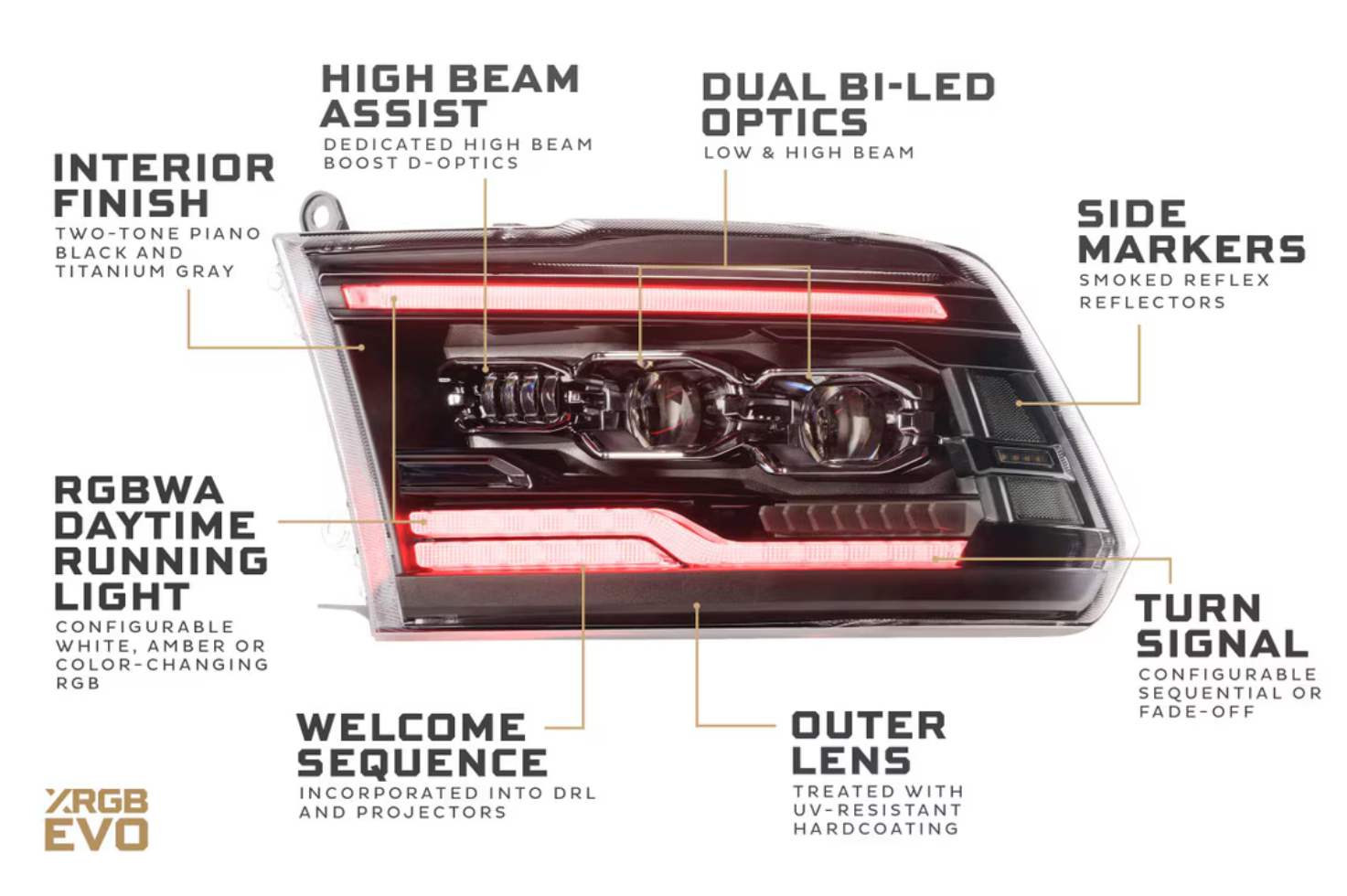

Tech Specs
Traffic Pattern : LHD / Right Hand Traffic Only
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
Functions : Low, High, Park, Turn, RGB DRL, Welcome Sequence
Turn Signal Modes : Sequential or Fade Off (Configurable)
DRL Colors : RGB (via BT app), White or Amber (Configurable)
Side Marker : Smoked side reflex reflector
Lens Details : Polycarbonate with proprietary anti-UV hard coating
WARRANTY
This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
SHIPPING INFORMATION
We’re excited to partner with Morimoto to bring this product to you! Orders for this item will ship directly from their facility, ensuring fast delivery and the same great quality you expect. Please note that if you order additional items, they may arrive separately.
This product is estimated to ship mid January
