Diode Dynamics  |  SKU: DD7583

SS6 LED Fog Light Kit for 2020-2022 Ford Super Duty (w/ LED Fog Lights)

$359.96
Shipping calculated at checkout.
Color: White
Quality Guaranteed No Exceptions
Secure Checkout Secure Payment
Easy Returns Return with Ease
USA BASED We Ship From The USA
DESCRIPTION

The SAE LED Fog Light Kit for the 2020-2022 Ford Super Duty from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in place of the factory LED fog light housings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

FEATURES

Direct fitment on 2020-2022 Ford Super Duty.
Replaces the factory fog lights with two 6" light bars.
Road legal output as fog lights.
Plug-and-play wiring harness included to power light bars.
CAD-designed for perfect fitment and OEM-like appearance.
Utilizes existing mounting points for simple installation - no cutting or drilling required.

TECH SPECS

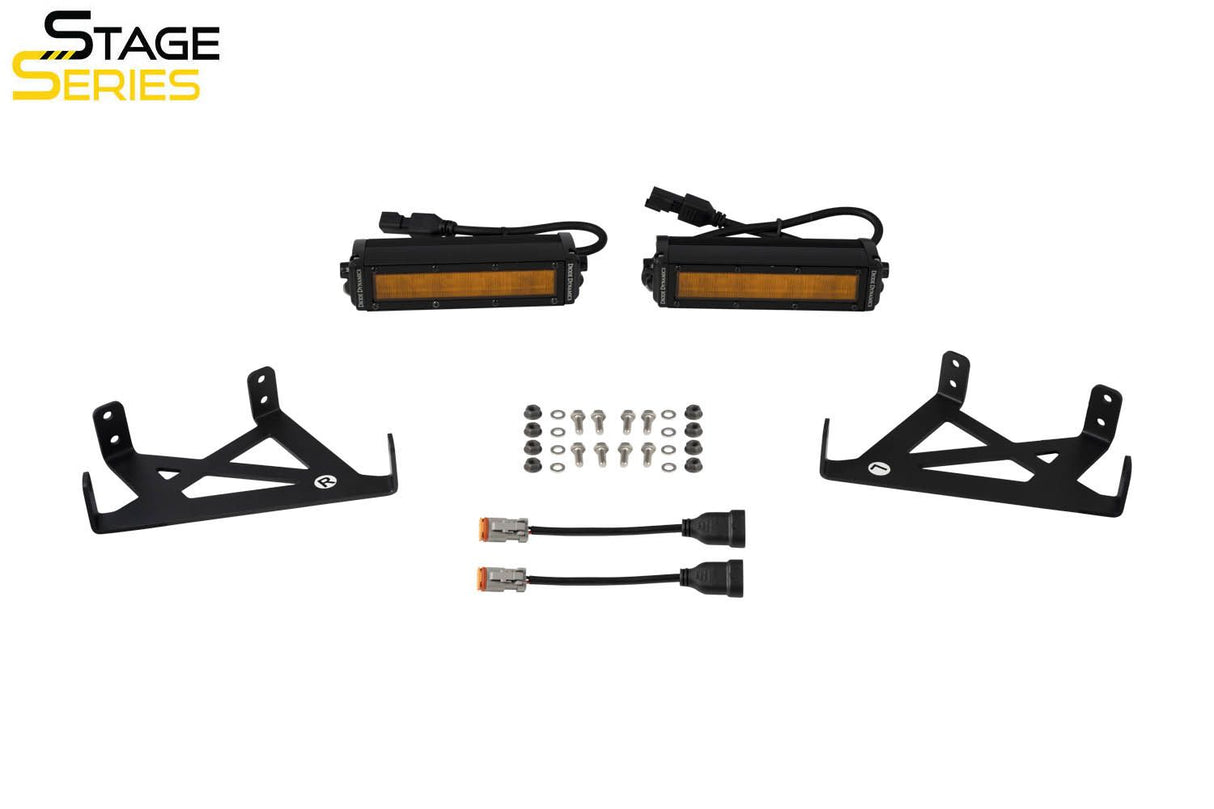

In the Box:

    One (1) Ford Super Duty 2020-2022 SS6 Fog Mounting Kit
    Two (2) SS6 Stage Series 6-inch Light Bars
    Two (2) 9006 DT Adapters
    Installation Guide

    Quantity: two

    NOTE: This kit is compatible with F250/F350/F450/F550 models with optional or standard LED fog lamps installed.

     Application: Fog Light Make: Ford Model: Super Duty F250/F350/F450/F550 Years: 2020, 2021, 2022


    Lens Color/Optics

    Peak Beam Intensity
    (candela)

    		 Illuminance
    (lux @ 10m)    		 Measured Output
    (lumens)    		 Raw Output
    (lumens)    		 Output Color
    White Wide 13,000 cd 130 lux 1,400 lm 2,280 lm 6000K White
    Amber Wide 7,400 cd 74 lux 800 lm 1,140 lm 2000K Amber
    WARRANTY

    This product has an 8 year warranty serviced and supported by Diode Dynamics

    SHIPPING INFORMATION

    This product is shipped directly from the manufacturer and can take 1-3 weeks to arrive
