Diode Dynamics | SKU: DD7174

SSC1 LED Fog Light Kit for 2021-2025 Ford Bronco Sport

$269.96

Shipping calculated at checkout.

Color: White

Product variants

DESCRIPTION
FEATURES
TECH SPECS
WARRANTY
SHIPPING INFORMATION

DESCRIPTION

Upgrade the fog lights on your 2021 Ford Bronco Sport with our SSC1 Type FBS Fog Light Bracket Kit! Featuring custom-engineered TIR optics combined with the newest LED chip technology, these pods deliver road-legal light output, in our most compact, versatile package yet. With the included custom bracket with bezel, the SSC1 Fog Kit has a clean, factory-style appearance, only much brighter!

FEATURES

Bolt-on replacement for your 2021+ Bronco Sport fog lamps
SAE-compliant road-legal output
Backlight feature provides amber accent light
Plug-and-play wiring, with included harness
Advanced TIR optics, with Osram Boost HX 20W LED chip
Engineered and Assembled in USA

TECH SPECS

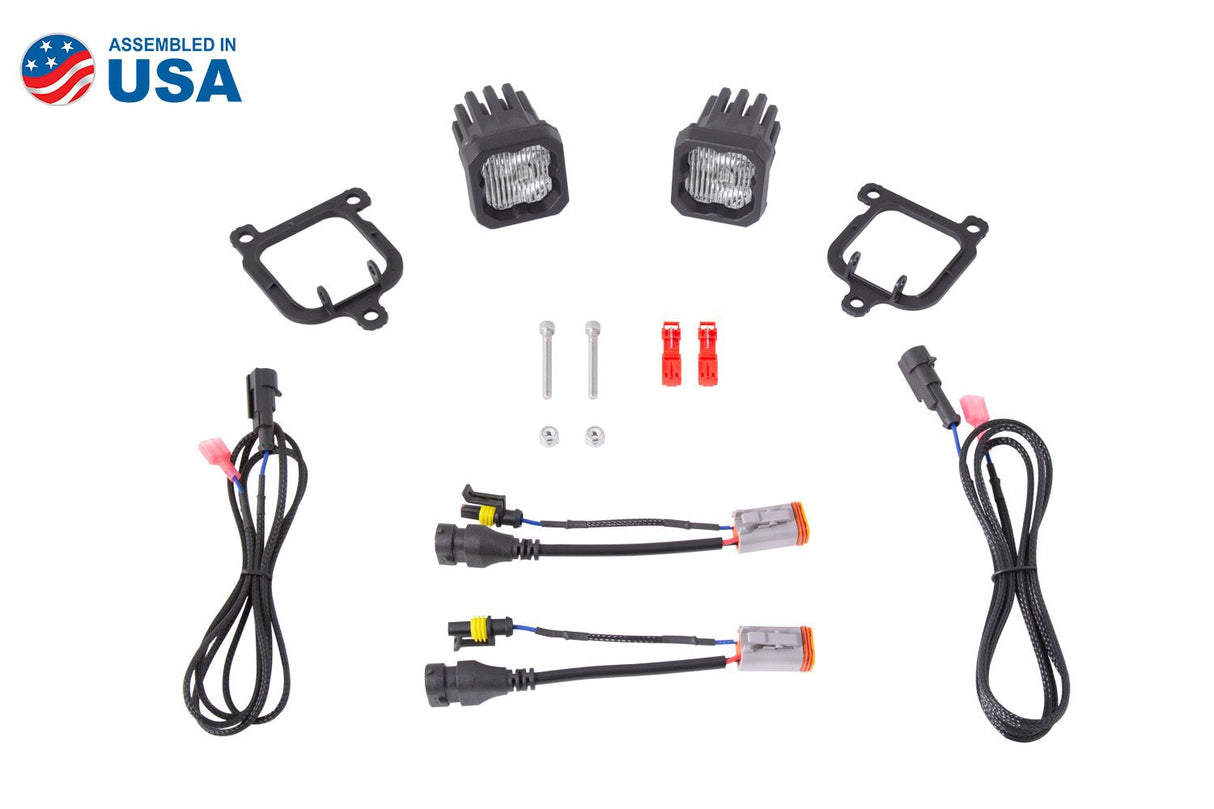

In the Box:

Two (2) SSC1 standard LED pods
Two (2) T-taps
Two (2) H11 DT 4-Pin adapters
Two (2) Type FBS brackets
Mounting hardware

Quantity: Two (2)

NOTE: This kit is compatible with models without factory fog lights. However, you will need to purchase an additional wiring harness.

Application: Fog Light Make: Ford Model: Bronco Sport Years: 2021, 2022, 2023, 2024, 2025

Lens Color/Optics	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Measured Output (lumens)	Raw Output (lumens)	Output Color
Fog White Sport	10,600 cd	106 lux	1,520 lm	2,262 lm	6000K White
Fog White Pro	11,900 cd	119 lux	3,000 lm	5,796 lm	6000K White
Fog White Max	18,000 cd	180 lux	3,500 lm	7,920 lm	6000K White
Fog Yellow Sport	9,050 cd	91 lux	1,300 lm	1,930 lm	3000K Yellow
Fog Yellow Pro	10,900 cd	109 lux	2,700 lm	5,220 lm	3000K Yellow
Fog Yellow Max	12,500 cd	125 lux	3,500 lm	7,920 lm	3000K Yellow

WARRANTY

This product has a lifetime warranty serviced and supported by Diode Dynamics

SHIPPING INFORMATION

This product is shipped directly from the manufacturer and can take 1-3 weeks to arrive
