Diode Dynamics | SKU: DD7310

Stage Series Fog Pocket Kit for 2021-2023 Ford F-150

$575.96

Shipping calculated at checkout.

Power Level

Sport Pro Max Bracket Only

Color: White

Product variants

DESCRIPTION
FEATURES
TECH SPECS
WARRANTY
SHIPPING INFORMATION

DESCRIPTION

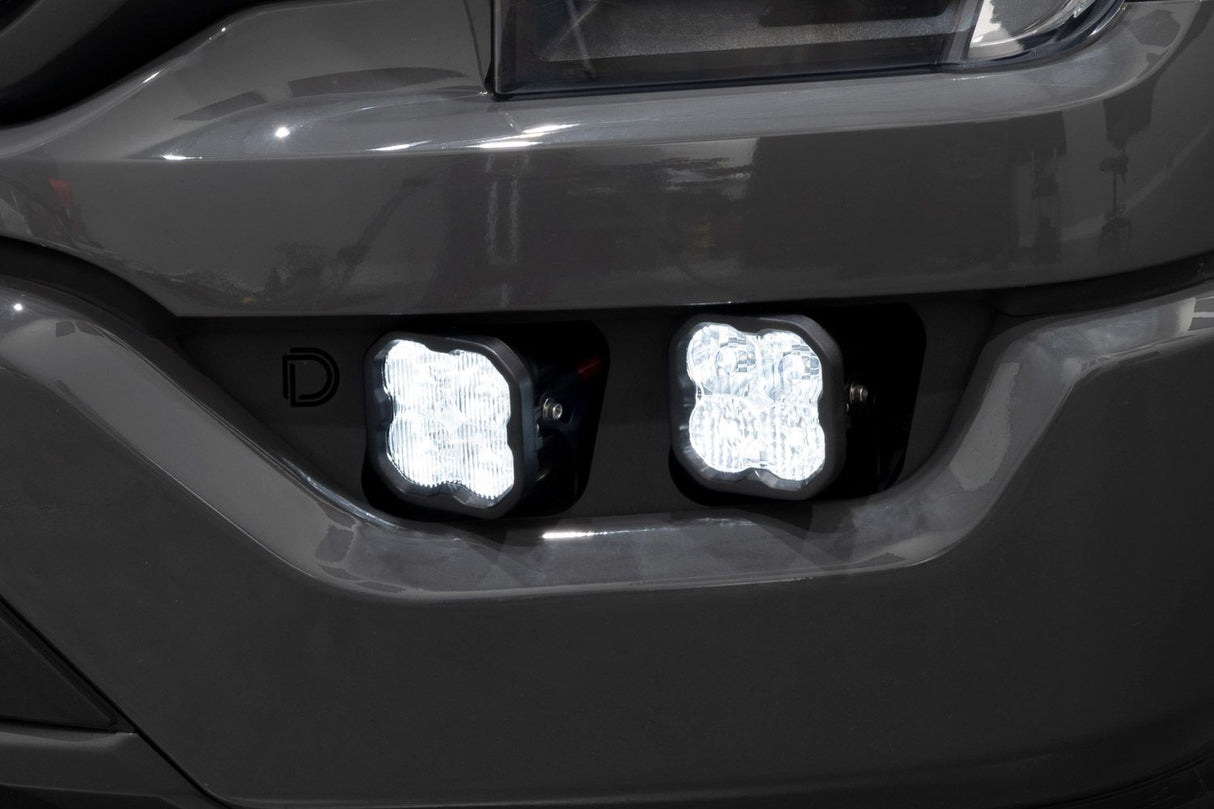

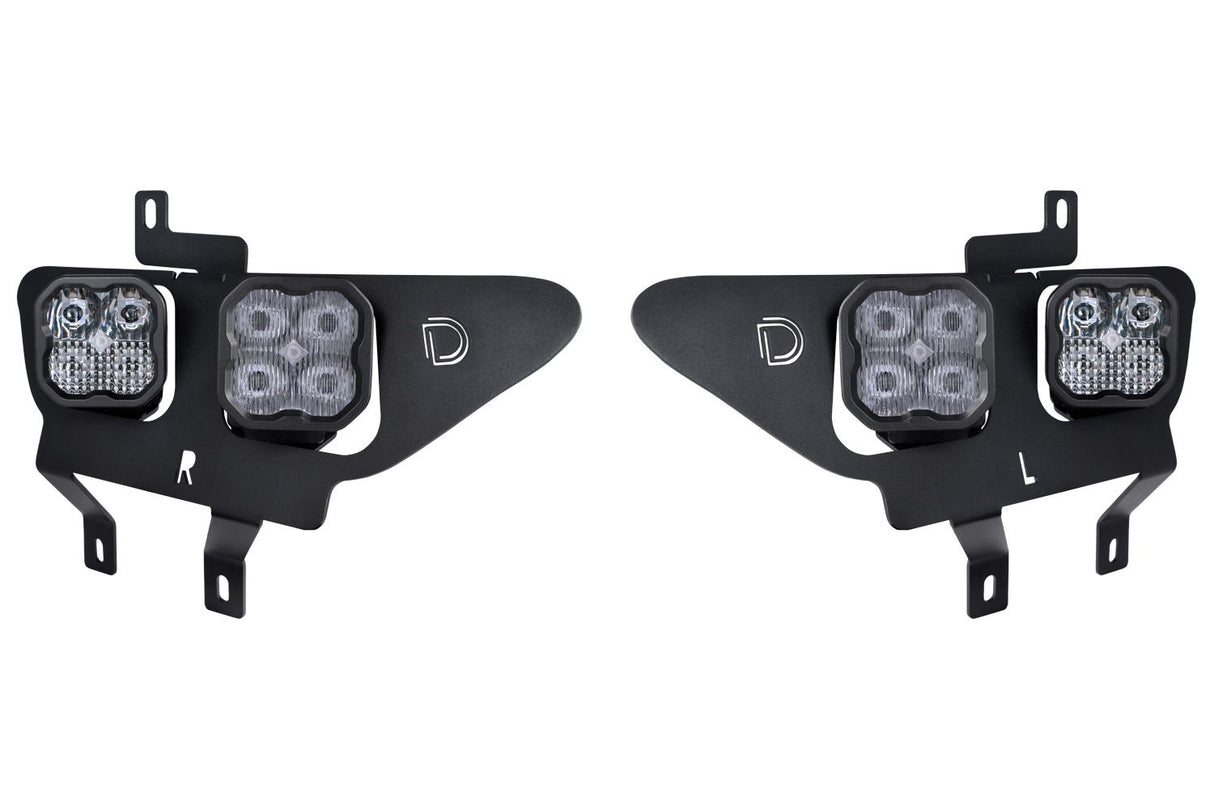

If you are looking to add some serious functionality to your F-150, look no further! The Stage Series Fog Pocket Kit for the 2021+ Ford F-150 from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount four SS3 LED Pods in place of your factory fog light housing. With the included harness, you'll be able to switch between road-legal fog lights and offroad lights with ease.

FEATURES

Bolt-on fitment for 2021+ Ford F-150.

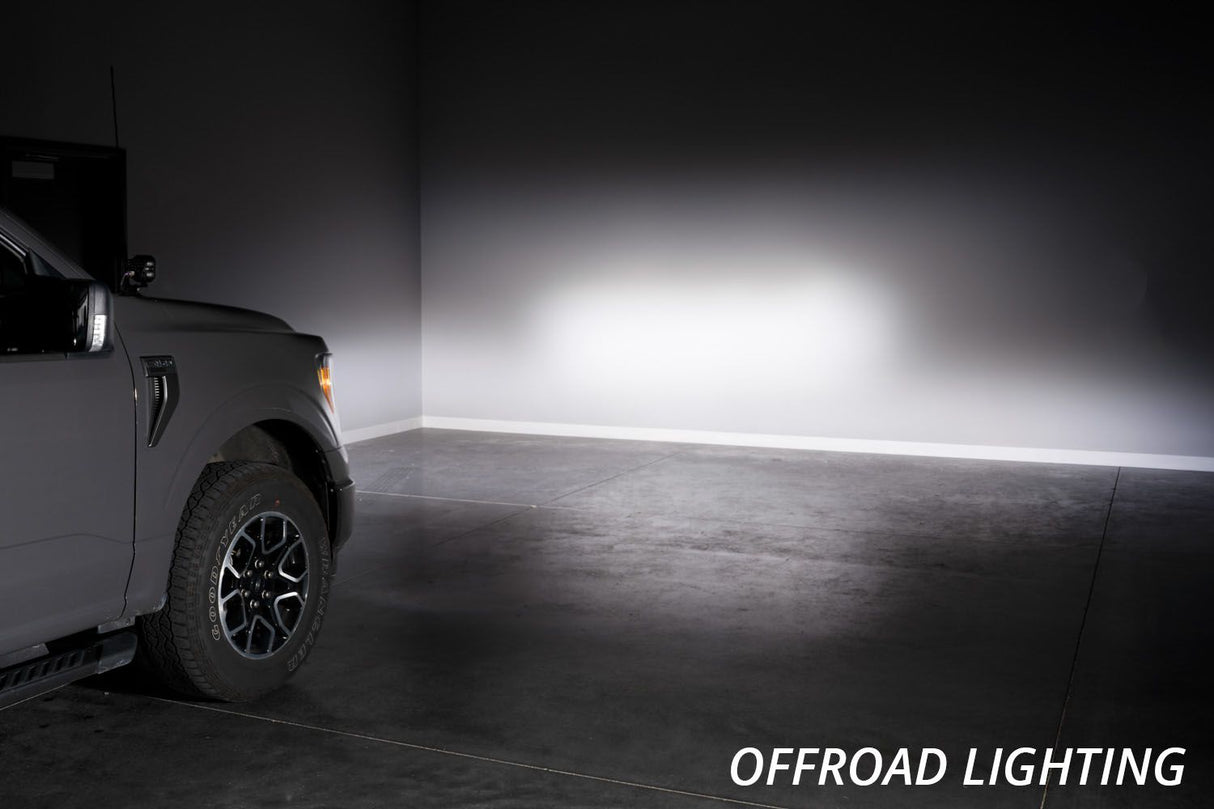

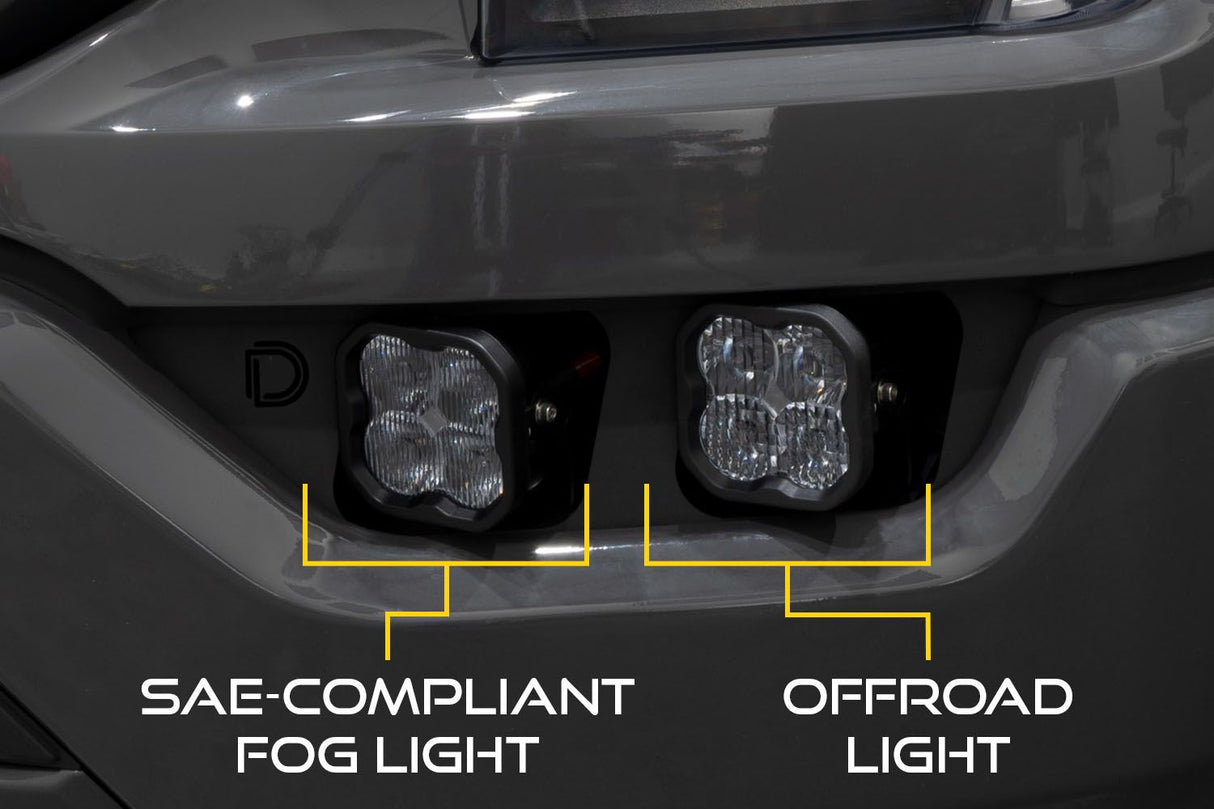

Adds SAE-compliant fog lights, and powerful offroad lighting.
Harnesses included for independent control of road-legal and offroad lighting.

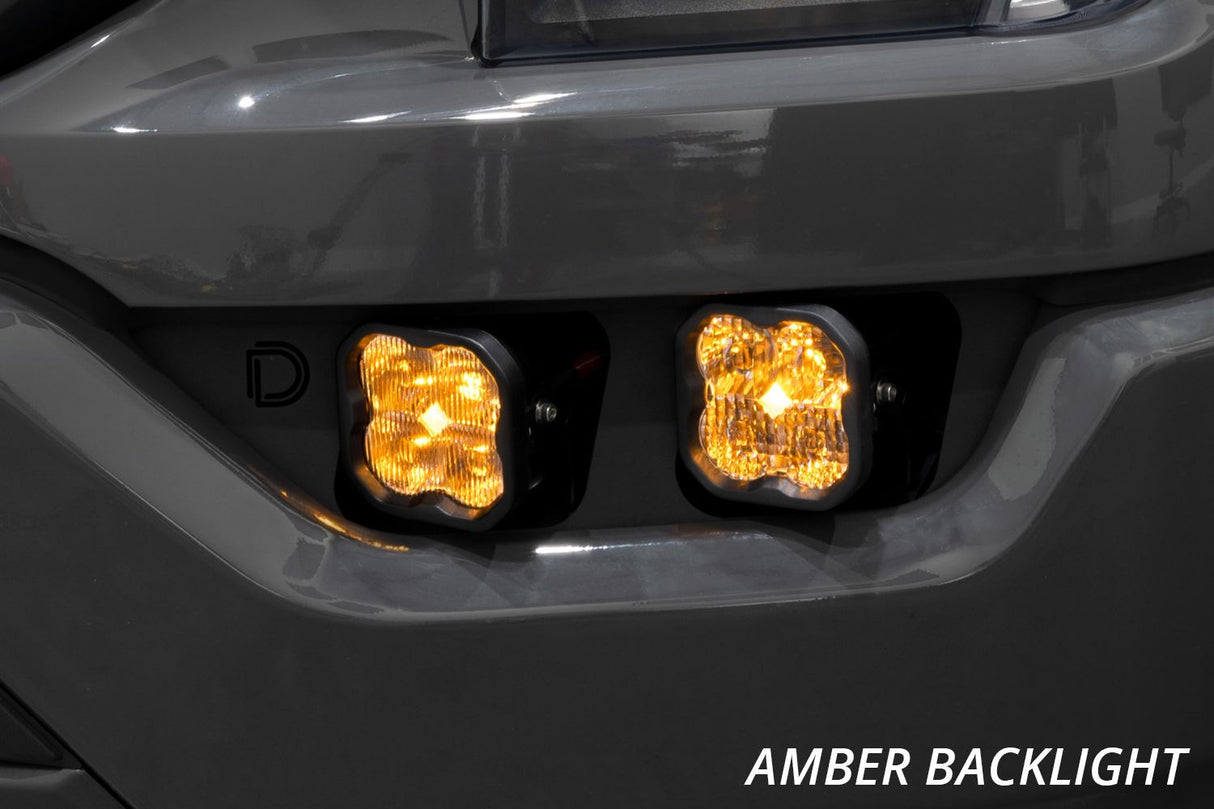

Backlight feature provides amber accent light.
Highly durable powdercoated stainless steel bracket.
Engineered and assembled in USA.

TECH SPECS

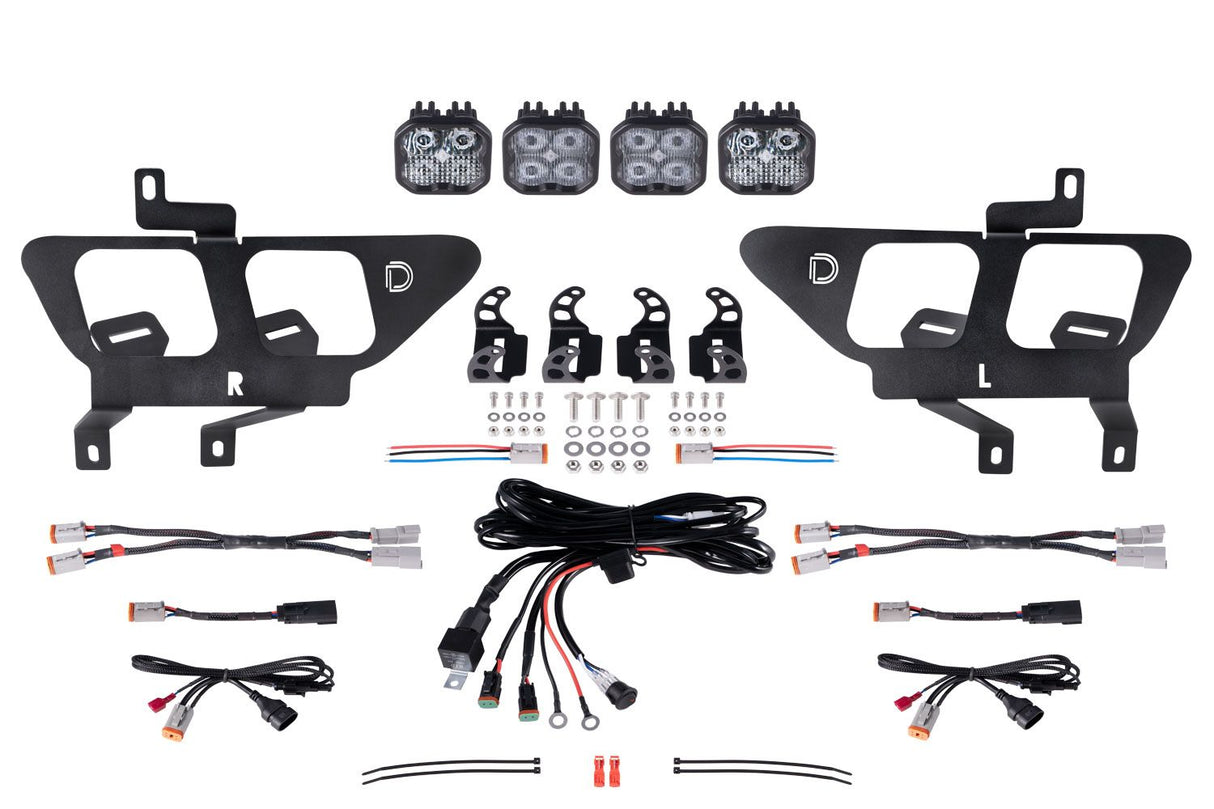

In the Box:

Two (2) Ford F-150 fog pocket brackets
Two (2) SS3 SAE Fog LED pods
Two (2) SS3 Combo LED pods
One (1) dual-output fog harness
One (1) Heavy Duty Dual Output 4-pin harness
One (1) Molex DT Adapter wire
One (1) 9006 backlight tap wire kit
Four (4) zip ties
Mounting hardware and guide

The "Yellow" kits include two Yellow SS3 Fog LED pods, and two White SS3 Combo LED pods.

NOTE: All 2021+ F-150 OEM fog lights feature a turn signal functionality. This fog light kit will retain the factory turn signal functionality. If you would like to disable the factory turn signal functionality, please reference your owner's manual for instructions. This kit is not compatible with the Raptor trim level.

This kit is a replacement for OEM fog lamps.

Application: Fog Light Make: Ford Model: F-150 Years: 2021, 2022, 2023

Lens Color/Optics	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Measured Output (lumens)	Raw Output (lumens)	Output Color
Fog White Sport	10,600 cd	106 lux	1,520 lm	2,262 lm	6000K White
Fog White Pro	11,900 cd	119 lux	3,000 lm	5,796 lm	6000K White
Fog White Max	18,000 cd	180 lux	3,500 lm	7,920 lm	6000K White
Fog Yellow Sport	9,050 cd	91 lux	1,300 lm	1,930 lm	3000K Yellow
Fog Yellow Pro	10,900 cd	109 lux	2,700 lm	5,220 lm	3000K Yellow
Fog Yellow Max	12,500 cd	125 lux	3,500 lm	7,920 lm	3000K Yellow

WARRANTY

This product has a lifetime warranty serviced and supported by Diode Dynamics

SHIPPING INFORMATION

This product is shipped directly from the manufacturer and can take 1-3 weeks to arrive
