28" Chase LED Light Bar - Multi-Function - Rear Facing - for Can-Am Maverick X3 / R
Couldn't load pickup availability
28" Chase LED Light Bar - Multi-Function - Rear Facing - for C...
Description
Description
-28" Rear Facing LED Light Bar Kit for 2017-2024 Can-Am Maverick X3 UTV and 2024-2025 Can-Am Maverick R models
-Can-Am Maverick X3 and R Specific Mounting Kit and Hardware for Easy Install
-Multi Function Integration and Design:
-Red LED Tail & Brake Lights with Blinker Capability
-Amber LED Dust Lights with Strobe Capability
-White LED Flood Lights
-Lightweight Extruded Aluminum Housing for Maximum Heat Dissipation and Durability
-Weather Resistant Enclosure and Shatter-Proof Polycarbonate Lens for Maximum Durability
-40° Spread and 180° Flood Beam Optics
SPECIFICATIONS
-LED Source: 4W Cree LED
-Raw Lumens: 4,500 lm
-LED Color: Red, Amber, and Clear LEDs
-Amp Draw: 5.0A (max draw)
-Voltage: 12V DC
-Certifications: SAE J595, CT13, SAE J1119
-Product Dimensions: H - 1.22" x L - 28.14" x W- 2.25"
PARTS INCLUDED

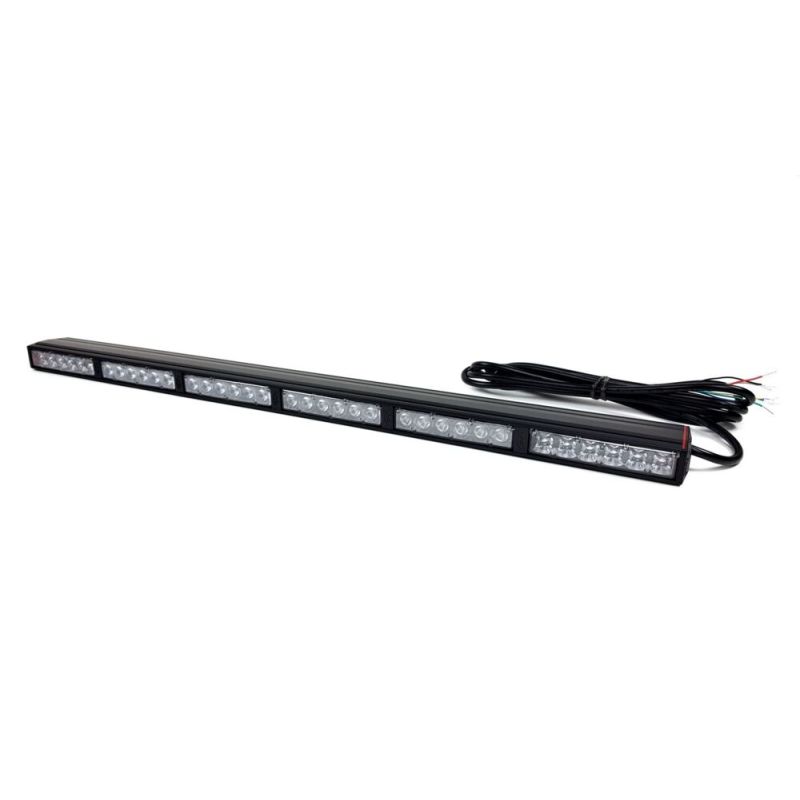

-(1) 28" Rear Facing LED Light Bar with Wire Lead
-(1) Rear Light Bar Mounting Kit with Hardware for Can-Am Maverick X3 and R
MULTI-FUNCTIONAL LIGHT USE FOR CAN-AM MAVERICK X3
KC's rear LED light bar mounting kit allows you to easily install the 28" Rear Facing Chase LED Light Bar to your factory Can-Am X3 and R roll cage. Using specifically designed mounting hardware for your Maverick UTV to ensure a high quality, secure fitment. Enhanced features include red tail/brake light with blinker capability, amber dust lights with solid or strobe capability and white flood/work lights for area lighting.
The use of a rear facing LED tail light bar dramatically improves rider safety on the trail or off-roading through desert terrains for recreational and competitive race course use. This rear facing LED tail light bar also is equipped with standard functions which meet SAE J595, CT13, SAE J1119, compliance standards, perfect for perfect for use on or off road in your UTV (If permitted for street use).
IMPORTANT: This bar is not compatible with aftermarket turn signals
Key Features
Key Features
Key Features:
- Extreme Brightness: Delivers a powerful lumens per pod using high-output LEDs—ideal for underglow, wheel wells, engine bays, and trail illumination.
- Plug-&-Play Installation: Pre-wired with 15 feet of lead wire per pod and waterproof connectors for a quick, clean setup—no splicing or complex wiring needed.
- Weatherproof and Durable – IP68 Rated: Fully sealed and built to resist water, dust, and vibration. Designed to perform in all conditions, including rain, snow, mud, and off-road impact.
- Dual Control Options - Control your lights using the included remote or connect via Bluetooth for full functionality through your smartphone.
- Multiple Lighting Modes - Customize your setup with breathing, blinking, and strobing effects as well as independently adjustable zones.
Tech Specs
Tech Specs
Every kit includes:
- Pure White Pods w/ 15ft of Lead Wire
- Heavy-duty Weatherproof Splitters
- Inline Fuse for System Protection
- Plug & Play Control Module
- Remote Control
- Mounting Hardware
Specifications:
*Based on individual rock light pods*
- 9V-20V DC
- Lumens
- W
- MA
- IP68 Rating
Compatibility:
- Universal
Warranty
Warranty
Customs Unlimited Warranty:
This product includes a Lifetime warranty, serviced and supported by the Customs Unlimited team. This warranty does not cover modifications, alterations, or misuse. For more details or to start a warranty claim, please click here to fill out our claims form. If you experience any issues during installation, please document the problem with photo or video evidence and contact us immediately before making any modifications to the product.
