Diode Dynamics | SKU: DD7807

Stage Series Backlit Ditch Light Kit for 2023-2025 Chevrolet Colorado

$339.95

Shipping calculated at checkout.

Choose Your Kit

2" C2 1.0 Sport 2" C2 1.0 Pro 3" Sport 3" Pro Bracket Only

Color: White

Product variants

DESCRIPTION
FEATURES
TECH SPECS
WARRANTY
SHIPPING INFORMATION

DESCRIPTION

The Stage Series Backlit Ditch Light Kit for the 2023+ Chevrolet Colorado allows you to easily mount two SS3 or SSC2 Backlit Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood.

FEATURES

Bolt-on fitment on 2023+ Chevrolet Colorado.

Allows you to mount two Stage Series LED Pods above the hood.

Utilizes existing mounting points for easy installation.

Thick-gauge stainless steel construction.

Low-profile design.

Assembled in USA.

TECH SPECS

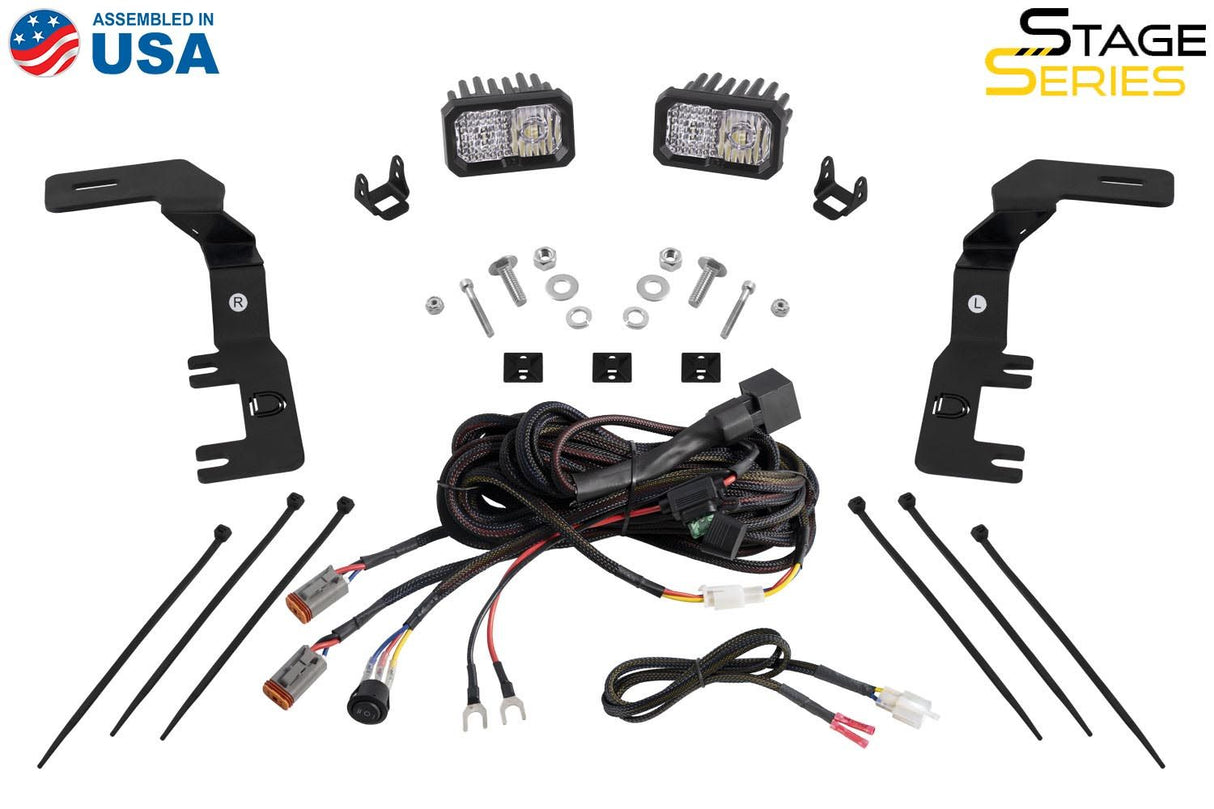

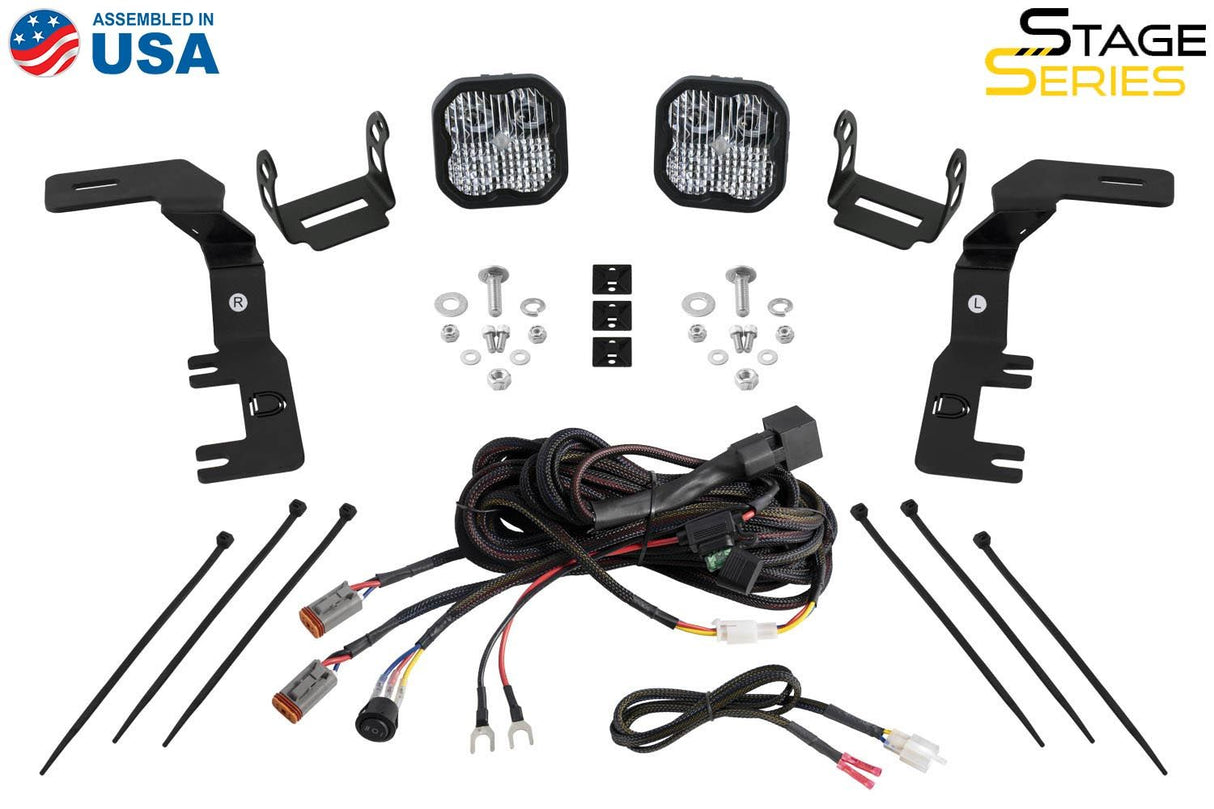

In the Box:

Two (2) SS3 or SSC2 Standard LED Pods

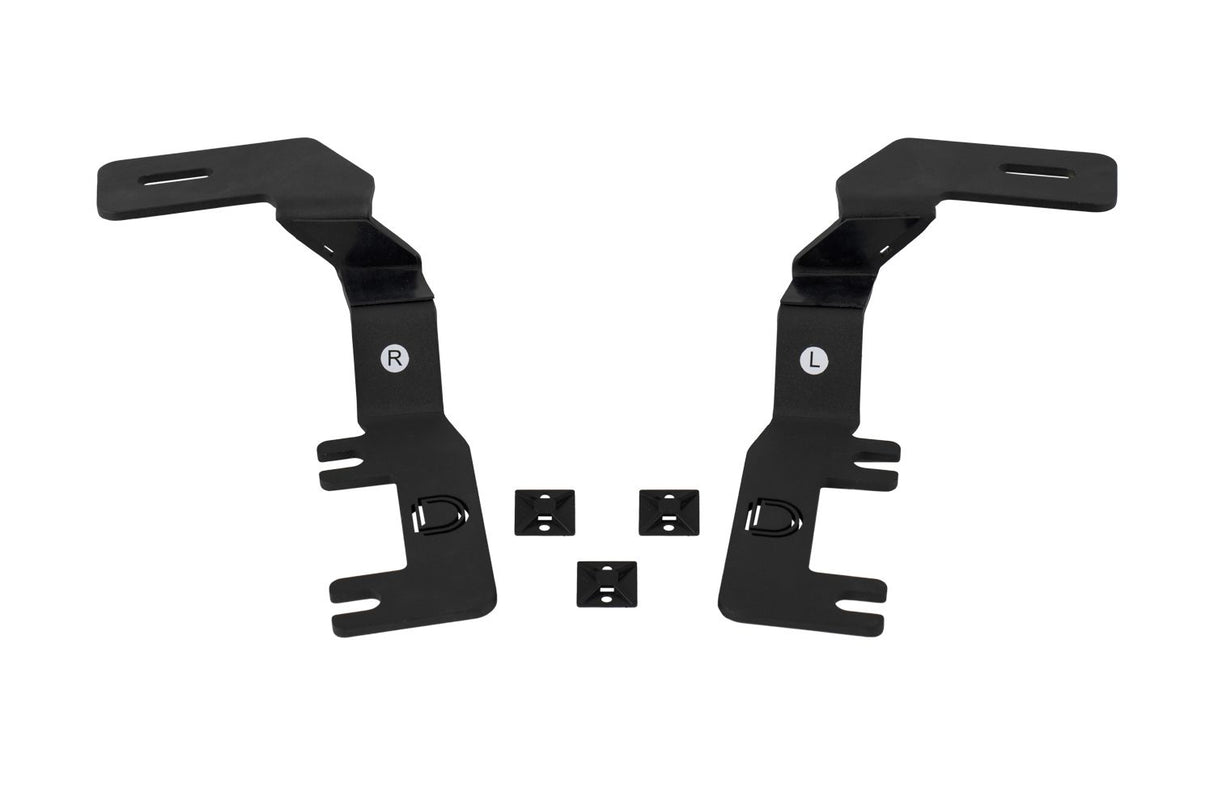

Two (2) Ditch Light Brackets for 2023+ Chevrolet Colorado

One (1) Heavy Duty Dual Output 4-pin Wiring Harness

Mounting hardware

Quantity: Pair (Left and Right Side)

NOTE: Do not use automatic car washes when this kit is installed.

Make: Chevrolet Model: Colorado Years: 2023, 2024, 2025

SS3 LED Pods
Lens Color/Optics	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Measured Output (lumens)	Raw Output (lumens)	Output Color
Combo White Sport	31,500 cd	315 lux	1,520 lm	2,262 lm	6000K White
Combo White Pro	35,100 cd	351 lux	3,000 lm	5,796 lm	6000K White
Combo Yellow Sport	28,100 cd	281 lux	1,300 lm	1,930 lm	3000K Yellow
Combo Yellow Pro	33,406 cd	334 lux	2,700 lm	5,220 lm	3000K Yellow

SSC2 LED Pods
Lens Color/Optics	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Measured Output (lumens)	Raw Output (lumens)	Output Color
Combo White Sport	16,264 cd	163 lux	871 lm	1,130 lm	6000K White
Combo White Pro	27,179 cd	272 lux	1,988 lm	2,898 lm	6000K White
Combo Yellow Sport	13,534 cd	135 lux	777 lm	960 lm	3000K Yellow
Combo Yellow Pro	23,388 cd	234 lux	1,858 lm	2,610 lm	3000K Yellow

WARRANTY

This product has a lifetime warranty serviced and supported by Diode Dynamics

SHIPPING INFORMATION

This product is shipped directly from the manufacturer and can take 1-3 weeks to arrive

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

INSTALL GUIDES

OUR GOAL IS TO MAKE SURE WHEN DOING AN INSTALLATION YOURSELF IT IS EASY AND TROUBLE-FREE, SO YOU CAN UTILIZE THE PRODUCT TO THEIR MAXIMUM POTENTIAL.

ARE YOU NOT THE "DO-IT-YOURSELF" KIND OF PERSON OR DON'T HAVE THE TIME TO INSTALL? NO PROBLEM! WE HAVE CERTIFIED DEALERS NATIONWIDE READY TO PERFORM YOUR LIGTING INSTALL!

View Instructions Find A Local Installer

SS3 LED Pods

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)

Measured Output
(lumens)

Raw Output
(lumens)

Output Color

Combo White Sport

31,500 cd

315 lux

1,520 lm

2,262 lm

6000K White

Combo White Pro

35,100 cd

351 lux

3,000 lm

5,796 lm

6000K White

Combo Yellow Sport

28,100 cd

281 lux

1,300 lm

1,930 lm

3000K Yellow

Combo Yellow Pro

33,406 cd

334 lux

2,700 lm

5,220 lm

3000K Yellow

SSC2 LED Pods

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)

Measured Output
(lumens)

Raw Output
(lumens)

Output Color

Combo White Sport

16,264 cd

163 lux

871 lm

1,130 lm

6000K White

Combo White Pro

27,179 cd

272 lux

1,988 lm

2,898 lm

6000K White

Combo Yellow Sport

13,534 cd

135 lux

777 lm

960 lm

3000K Yellow

Combo Yellow Pro

23,388 cd

234 lux

1,858 lm

2,610 lm

3000K Yellow

Stage Series Backlit Ditch Light Kit for 2023-2025 Chevrolet Colorado
