Diode Dynamics | SKU: DD7178

Stage Series Fog Pocket Kit for 2021-2025 Ford Bronco (w/ Steel Bumper)

$890.96

Shipping calculated at checkout.

Power Level

Sport Pro Max Bracket Only

Color: White

Product variants

DESCRIPTION
FEATURES
TECH SPECS
WARRANTY
SHIPPING INFORMATION

DESCRIPTION

If you are looking to add some serious functionality to your Bronco, look no further! The Stage Series Fog Pocket Kit for the 2021+ Ford Bronco from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount two SS3 LED Pods and four SSC2 LED pods in the factory bumper openings. With the included harnesses, you'll be able to switch between road-legal fog lights and offroad lights with ease using your factory aux switch bank.

FEATURES

Bolt-on fitment for 2021+ Ford Bronco with steel bumper.

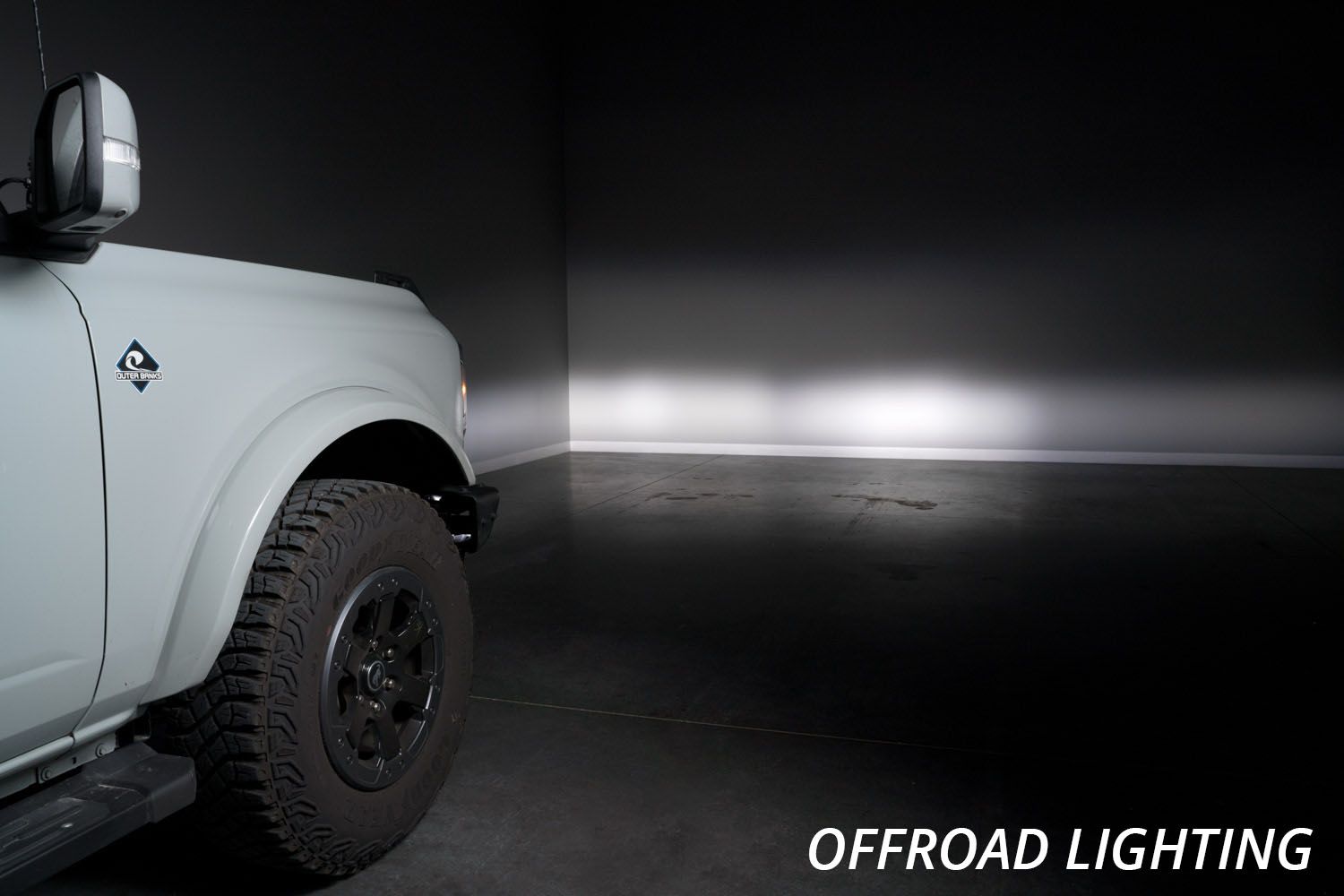

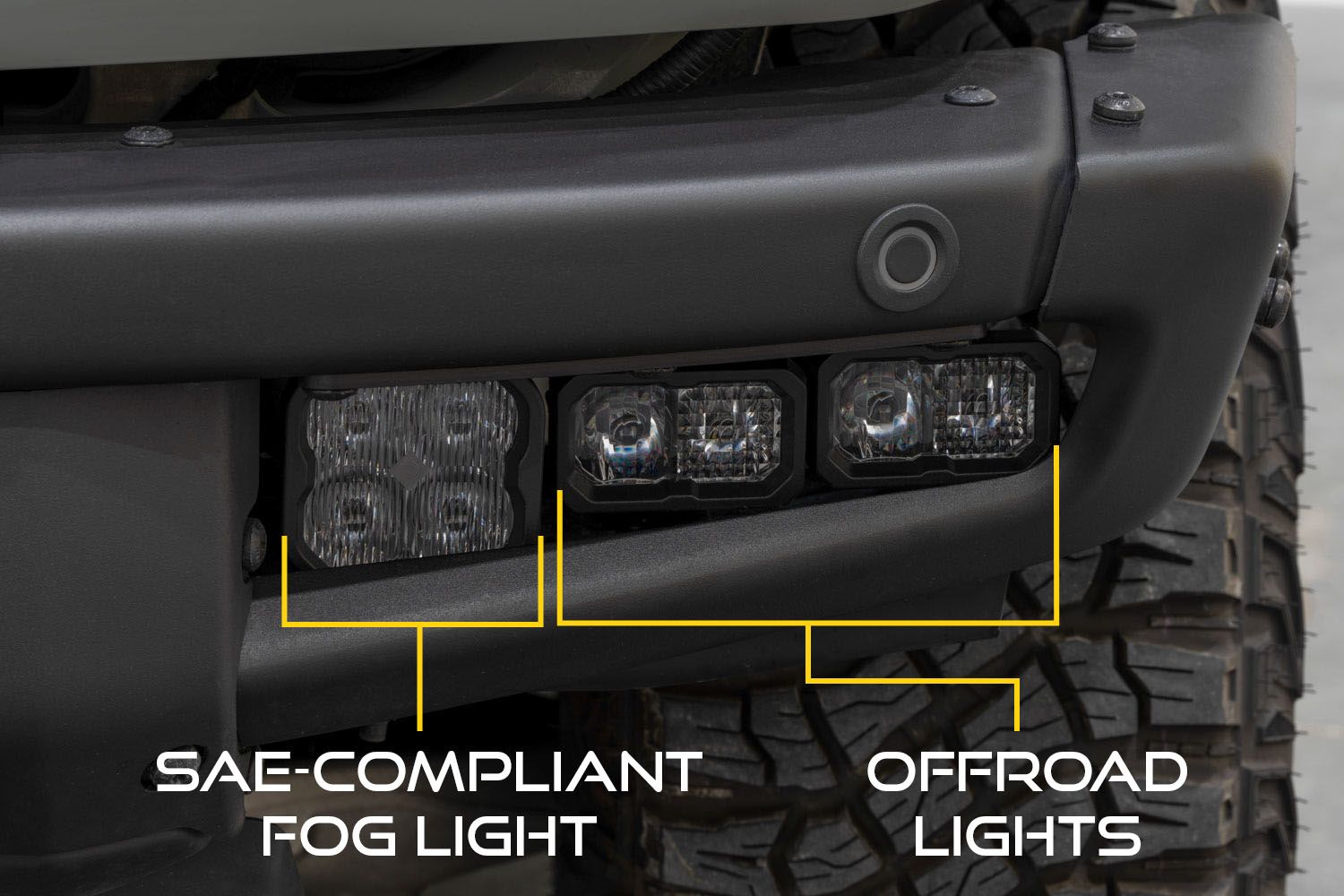

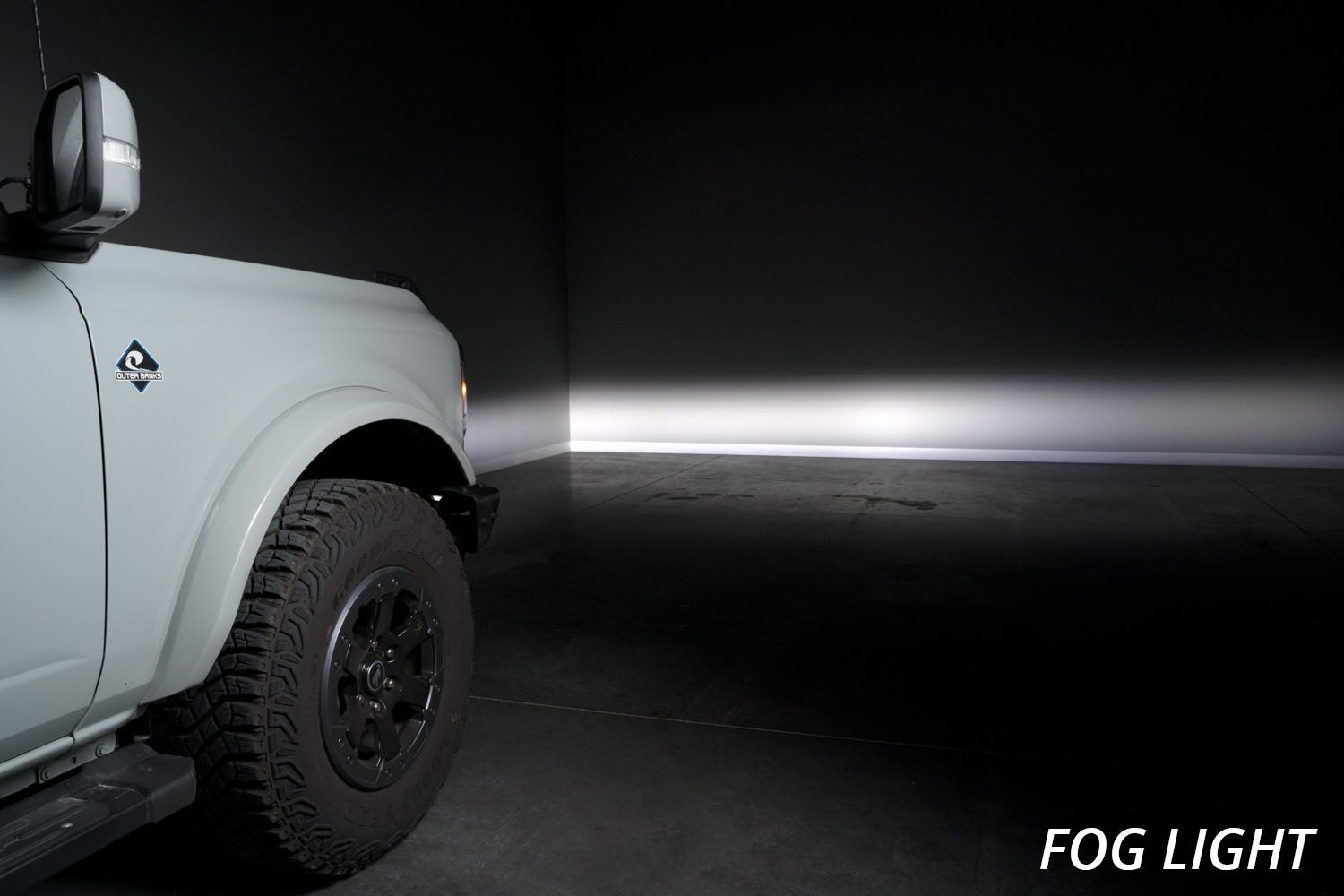

Adds SAE-compliant fog lights, and powerful offroad lighting.
Harnesses included for independent control of road-legal and offroad lighting.

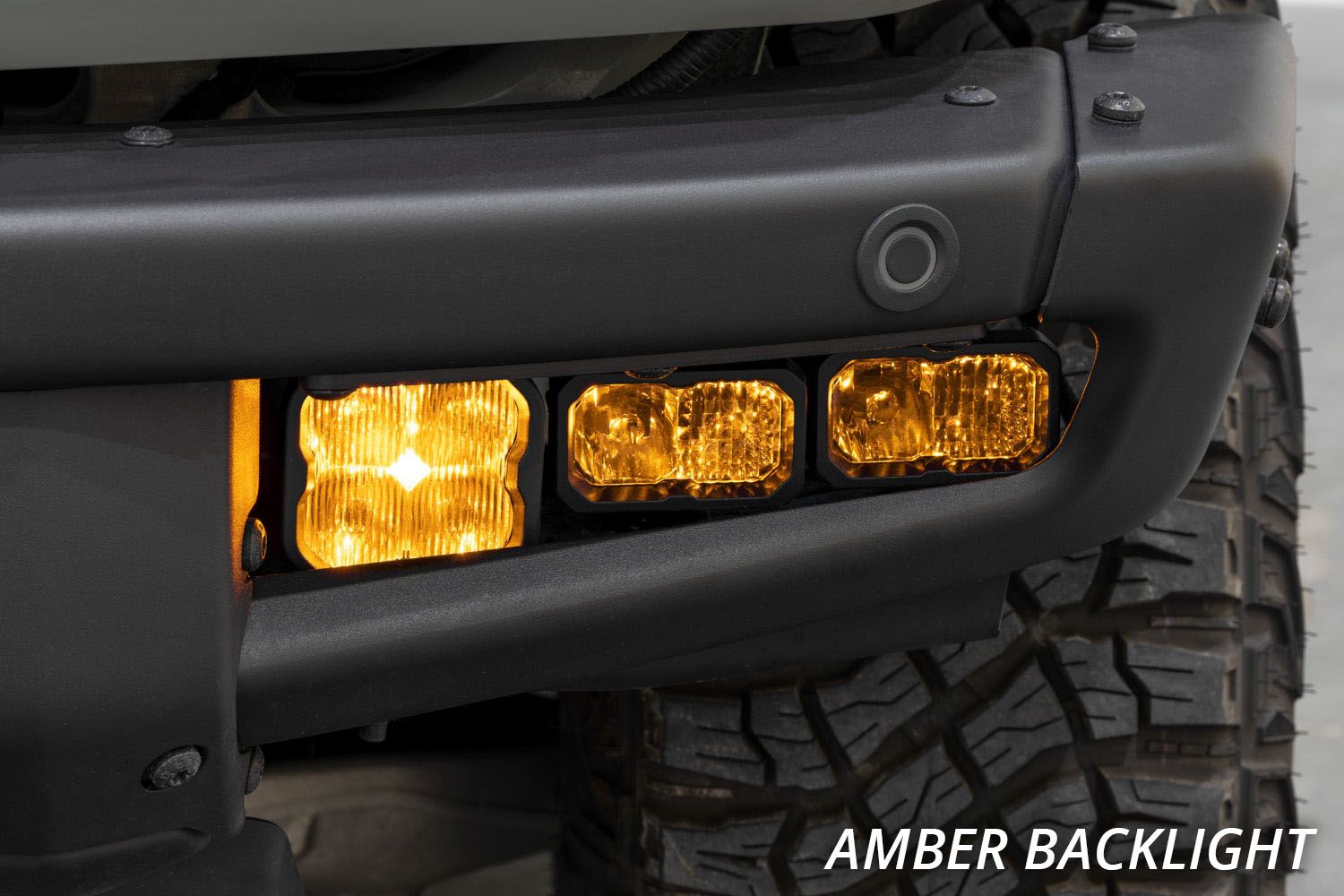

Backlight feature provides amber accent light.

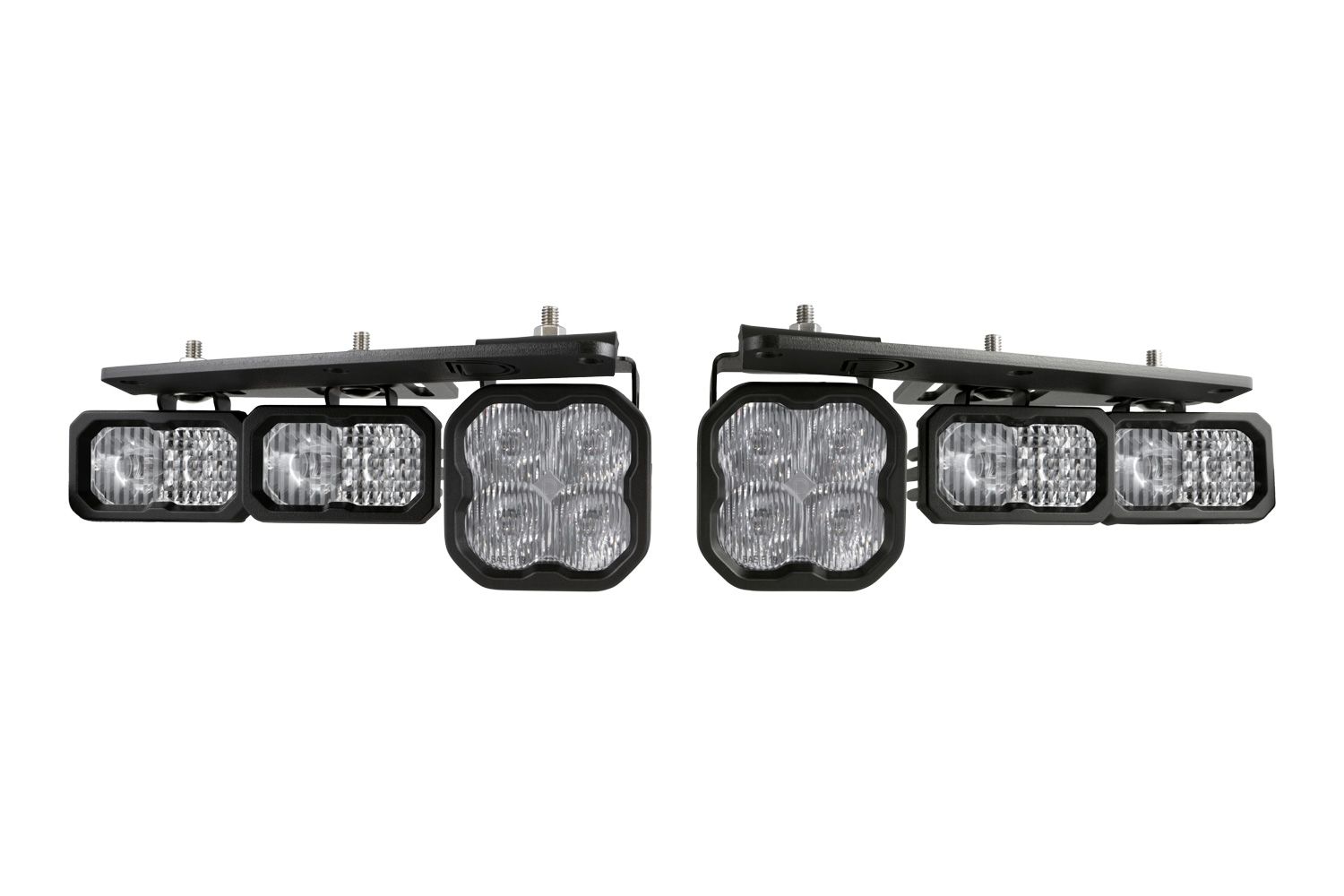

Highly durable powdercoated stainless steel bracket.
Engineered and assembled in USA.

TECH SPECS

In the Box:

Sport/Pro

Two (2) Ford Bronco fog pocket brackets
Two (2) Sport or Pro SS3 LED pods
Four (4) Sport or Pro SSC2 LED pods
One (1) dual-output fog harness
One (1) Heavy Duty Dual Output 4-pin harness
Two (2) 3-way backlight splitters
Four (4) zip ties
Mounting hardware and guide

Max

Two (2) Ford Bronco fog pocket brackets
Two (2) Max SS3 LED pods
Four (4) Pro SSC2 LED pods
One (1) dual-output fog harness
One (1) Heavy Duty Dual Output 4-pin harness
Two (2) 3-way backlight splitters
Four (4) zip ties
Mounting hardware and guide

The "Yellow" kits include two Yellow SS3 LED pods, and four White SSC2 LED pods.

Note: This kit is not compatible with models that use a plastic bumper.

Application: Fog Light Make: Ford Model: Bronco Years: 2021, 2022, 2023, 2024, 2025

Lens Color/Optics	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Measured Output (lumens)	Raw Output (lumens)	Output Color
Fog White Sport	10,600 cd	106 lux	1,520 lm	2,262 lm	6000K White
Fog White Pro	11,900 cd	119 lux	3,000 lm	5,796 lm	6000K White
Fog White Max	18,000 cd	180 lux	3,500 lm	7,920 lm	6000K White
Fog Yellow Sport	9,050 cd	91 lux	1,300 lm	1,930 lm	3000K Yellow
Fog Yellow Pro	10,900 cd	109 lux	2,700 lm	5,220 lm	3000K Yellow
Fog Yellow Max	12,500 cd	125 lux	3,500 lm	7,920 lm	3000K Yellow

WARRANTY

This product has a lifetime warranty serviced and supported by Diode Dynamics

SHIPPING INFORMATION

This product is shipped directly from the manufacturer and can take 1-3 weeks to arrive
