DESCRIPTION
The Baja Designs Squadron-R Sport Headlight Kit is a premium factory-location lighting upgrade for the 2016–2025 Yamaha YXZ1000R. Designed to replace the stock headlight system with stronger off-road LED performance, this kit improves visibility for nighttime trail riding, dunes, wooded terrain, and open off-road conditions.

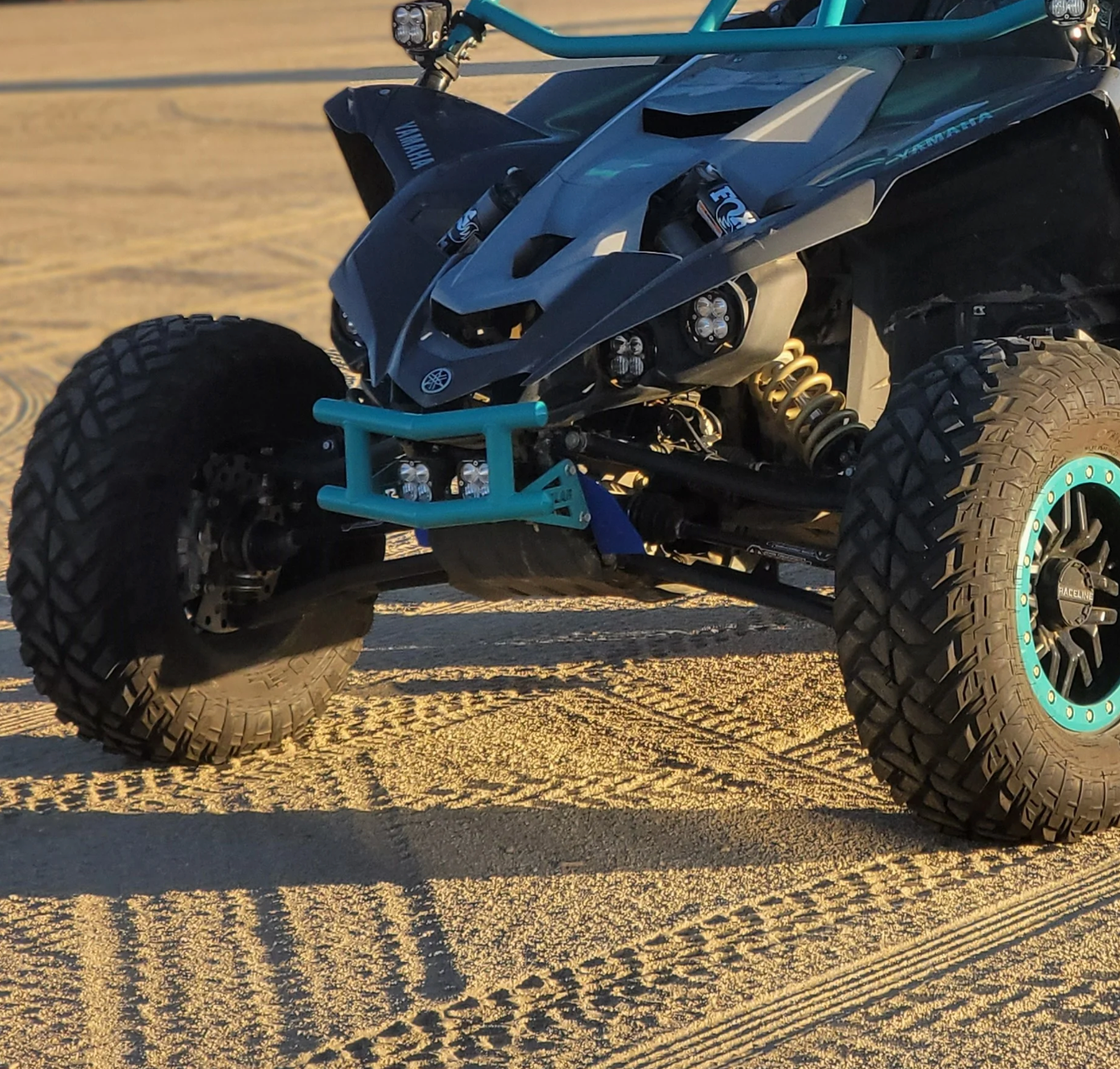

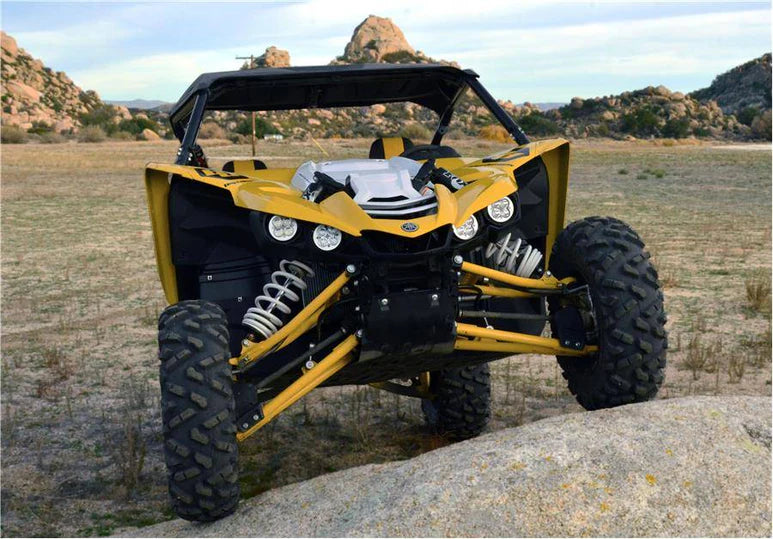

This kit replaces the factory lights with four round Squadron-R Sport LED lights. The layout uses Driving / Combo lights on the inside and Spot lights on the outside, creating a balanced lighting setup with wider usable coverage and added forward reach.
Installation is designed to be plug-and-play using the supplied vehicle-specific brackets and wiring adapters. The kit connects to the factory headlight plugs and retains the Yamaha YXZ’s original high / low beam operation, giving you upgraded lighting performance without losing factory-style control.
For YXZ owners who want a clean headlight upgrade with Baja Designs durability and a more aggressive front-end appearance, the Squadron-R Sport Headlight Kit is a strong upgrade over the factory setup.
FEATURES
Four-Light Squadron-R Sport Upgrade:
Replaces the factory headlight setup with four round Baja Designs Squadron-R Sport LED lights.
Mixed Beam Coverage:
Uses Driving / Combo optics on the inside and Spot optics on the outside for a balanced blend of width and distance.
Factory High / Low Beam Retained:
Included wiring adapters allow the upgraded lights to operate through the factory high / low beam controls.
Factory-Location Installation:
Mounts within the original headlight areas for a clean, integrated appearance.
Vehicle-Specific Brackets:
Includes mounting brackets designed for the Yamaha YXZ headlight support structure.
Plug-and-Play Wiring Adapters:
Connects the Baja Designs lights to the factory headlight plugs without requiring a custom lighting harness.
Clear Forward-Projecting Optics:
Provides crisp LED lighting for improved nighttime terrain visibility.
Compact Round Housing Design:
Gives the front of the YXZ a clean, aggressive appearance that matches its off-road styling.
Built for Harsh Conditions:
Features durable aluminum housings, hardcoated polycarbonate lenses, IP69K water resistance, and IK10 impact resistance.
Lifetime Limited Warranty:
Backed by Baja Designs’ Lifetime Limited Warranty and 30-Day Satisfaction Guarantee.
TECH SPECS

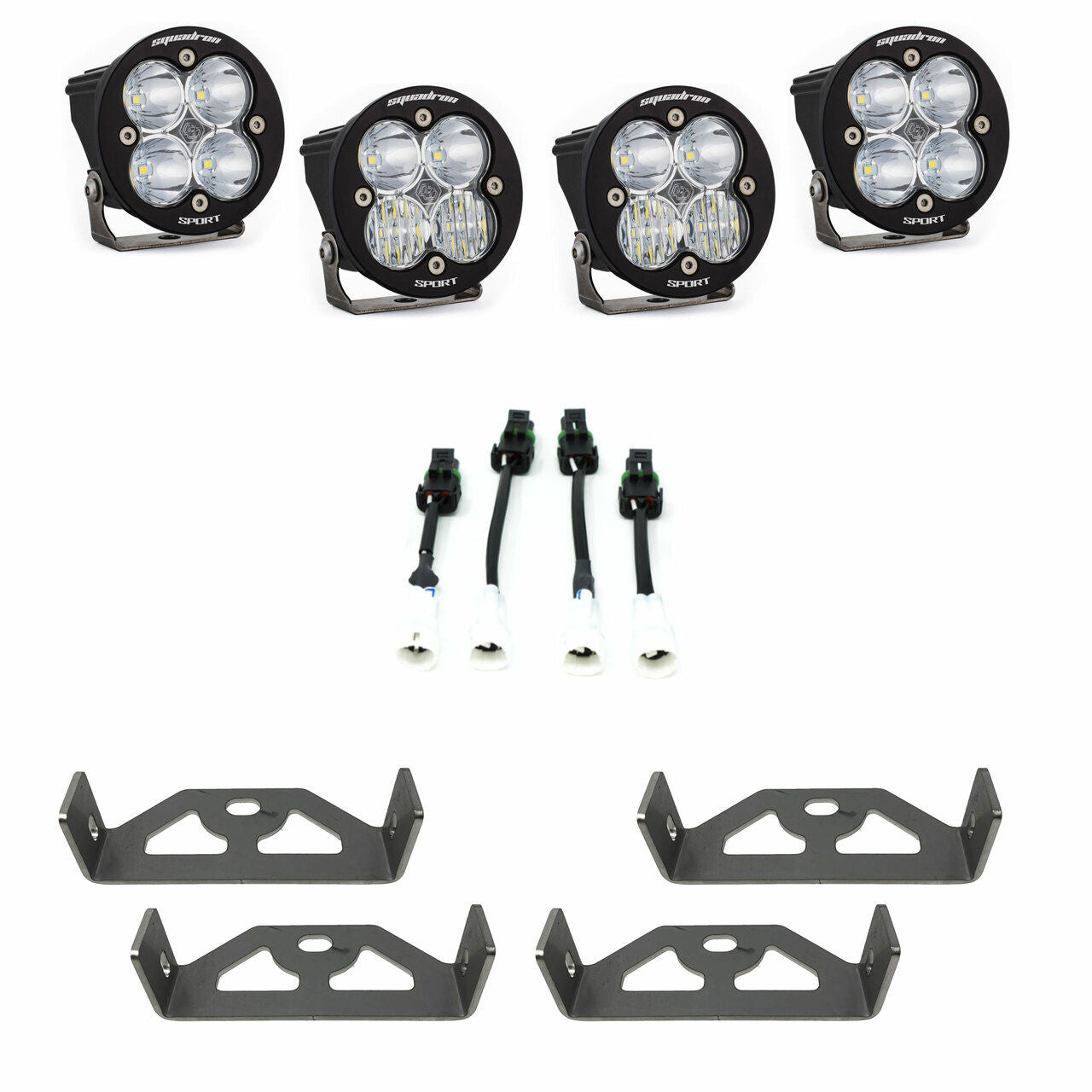

What’s Included
LED Lights:
2x Baja Designs Squadron-R Sport LED Lights — Clear Driving / Combo
2x Baja Designs Squadron-R Sport LED Lights — Clear Spot
Mounting Components:
Vehicle-Specific Yamaha YXZ Headlight Mounting Brackets
Required Mounting Hardware
Wiring:
Factory Headlight Plug Adapter Wiring
Low Beam and High Beam Connections
Compatibility
Yamaha YXZ1000R:
2016–2025
Yamaha YXZ1000R SE:
2016–2021
Yamaha YXZ1000R SS:
2017–2025
Yamaha YXZ1000R SS SE:
2017–2021
Yamaha YXZ1000R SS XT-R:
2020–2025
Application:
Factory Headlight Replacement / Performance Headlight Upgrade
Important Fitment Note:
Baja Designs notes that due to minimal stator voltage output at idle, a slight light flicker may occur while the vehicle is idling. Once engine RPM increases above idle, the lights should no longer be affected.
Technical Details
Brand:
Baja Designs
Product Type:
Squadron-R Sport LED Headlight Kit
Light Source:
LED
Light Quantity:
4 Squadron-R Sport LED Lights
Beam Patterns Included:
Driving / Combo
Spot
Brightness Per Light:
3,150 Lumens
Combined Output Note:
Baja Designs’ description and detailed specification table currently show conflicting total-output figures.
Wattage Per Light:
26W
Total Wattage Based on Listed Specifications:
104W
Amperage Per Light:
2.0A
Total Amperage Based on Listed Specifications:
8.0A
Lens Color:
Clear
Lens Material:
Hardcoated Polycarbonate
Housing Color:
Black
Housing Material:
Powder-Coated Cast Aluminum
Bezel Material:
Powder-Coated Cast Aluminum
Mounting Hardware Material:
Stainless Steel
Overvoltage Protection:
Built-In
Average Rated Life:
49,930 Hours
Water Resistance:
IP69K Rated — Waterproof up to 9 ft and Pressure Washable
Impact Resistance:
IK10 Compliant
Durability Testing:
Exceeds MIL-STD810G
Light Dimensions:
3.5 in L x 3.5 in H x 2.77 in D
Light Weight:
0.75 lb Each
Installation Style:
Vehicle-Specific / Plug-and-Play
Factory High / Low Beam Control:
Retained
WARRANTY
This Baja Designs product includes a Lifetime Limited Warranty and a 30-Day Satisfaction Guarantee. Warranty coverage does not apply to improper installation, modification, misuse, incorrect wiring, vehicle damage, crash damage, or unauthorized alterations.
